Black Button Tactile Switch, SPST 50 mA 0.8mm Surface Mount

RS Stock No.:: 917-4062
Mfr. Part No.:: SKQMBAE010
Brand:: Alps Alpine

Black Button Tactile Switch, SPST 50 mA 0.8mm Surface Mount

View this category

60 In stock for same day dispatch

available from Europe for delivery within 2 working day(s)

Added

View Basket

Price Each (In a Bag of 10)

Kr. 7,249

(exc. VAT)

Kr. 9,061

(inc. VAT)

Units	Per unit	Per Bag*
10 - 40	Kr. 7,249	Kr. 72,49
50 - 90	Kr. 5,775	Kr. 57,75
100 - 240	Kr. 5,456	Kr. 54,56
250 - 490	Kr. 5,313	Kr. 53,13
500 +	Kr. 5,203	Kr. 52,03
*price indicative

RS Stock No.:: 917-4062
Mfr. Part No.:: SKQMBAE010
Brand:: Alps Alpine

Technical Reference

SKQM Series Datasheet_en

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

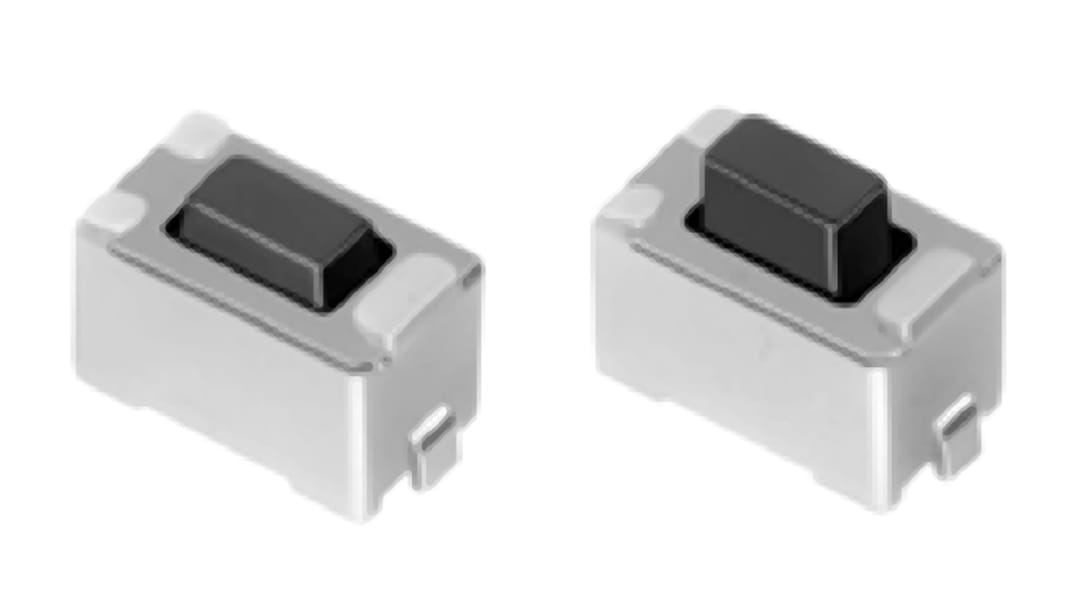

Alps SKQM Series Tactile Switch

Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.

Suitable for use in a wide variety of applications, such as audio & visual equipment and automotive applications.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.

Tactile

Specifications

Attribute	Value
Contact Configuration	SPST
Switch Operation	Momentary
Actuator Length	0.8mm
Actuator Colour	Black
Actuator Type	Button
Length	6mm
Width	3.5mm
Dimensions	6 x 3.5 x 4.3mm
Illuminated	No
Mounting Type	Surface Mount
Contact Current Rating	50 mA
Height	4.3mm
Voltage Rating	12V dc
Operating Force	0.98 N
Maximum Operating Temperature	+90°C
Operating Temperature Range	-40 → +90°C
Mechanical Life	50000Cycles
Minimum Operating Temperature	-40°C
