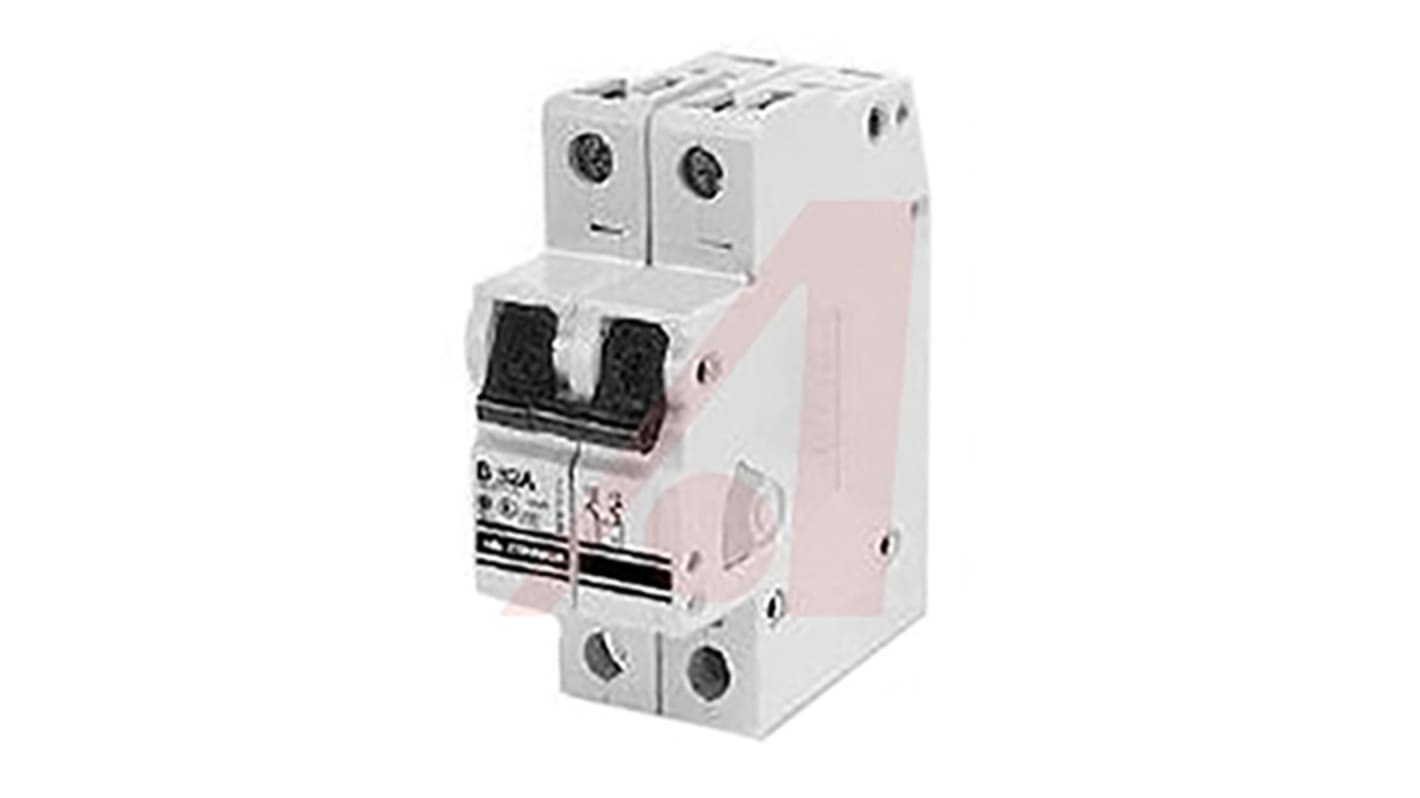

Altech Thermal Circuit Breaker - V-EA 2 Pole 480Y/277V Voltage Rating DIN Rail Mount, 12.5A Current Rating
- RS Stock No.:
- 899-1923
- Mfr. Part No.:
- 2GU125
- Brand:
- Altech
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 899-1923
- Mfr. Part No.:
- 2GU125
- Brand:
- Altech
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Altech | |
| Current Rating | 12.5A | |
| Number of Poles | 2 | |
| Voltage Rating | 480Y/277V | |
| Width | 35mm | |
| Series | V-EA | |
| Tripping Mechanism | Thermal-Magnetic | |
| Reset Actuator Type | Handle | |
| Tripping Characteristics | Type G | |
| Rated AC Voltage | 480Y/277V | |
| Mounting Style | DIN Rail Mount | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Overall Length | 91.5mm | |
| Special Features | IP20 Terminal Protection | |
| Overall Dimensions | 91.5 x 35 x 70mm | |
| Overall Depth | 70mm | |
| Rated DC Voltage | 80V | |
| Terminal Contact Type | Screw | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
| Break Time | Time Delay | |
Select all | ||
|---|---|---|
Brand Altech | ||
Current Rating 12.5A | ||
Number of Poles 2 | ||
Voltage Rating 480Y/277V | ||
Width 35mm | ||
Series V-EA | ||
Tripping Mechanism Thermal-Magnetic | ||
Reset Actuator Type Handle | ||
Tripping Characteristics Type G | ||
Rated AC Voltage 480Y/277V | ||
Mounting Style DIN Rail Mount | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Overall Length 91.5mm | ||
Special Features IP20 Terminal Protection | ||
Overall Dimensions 91.5 x 35 x 70mm | ||
Overall Depth 70mm | ||
Rated DC Voltage 80V | ||
Terminal Contact Type Screw | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
Break Time Time Delay | ||
