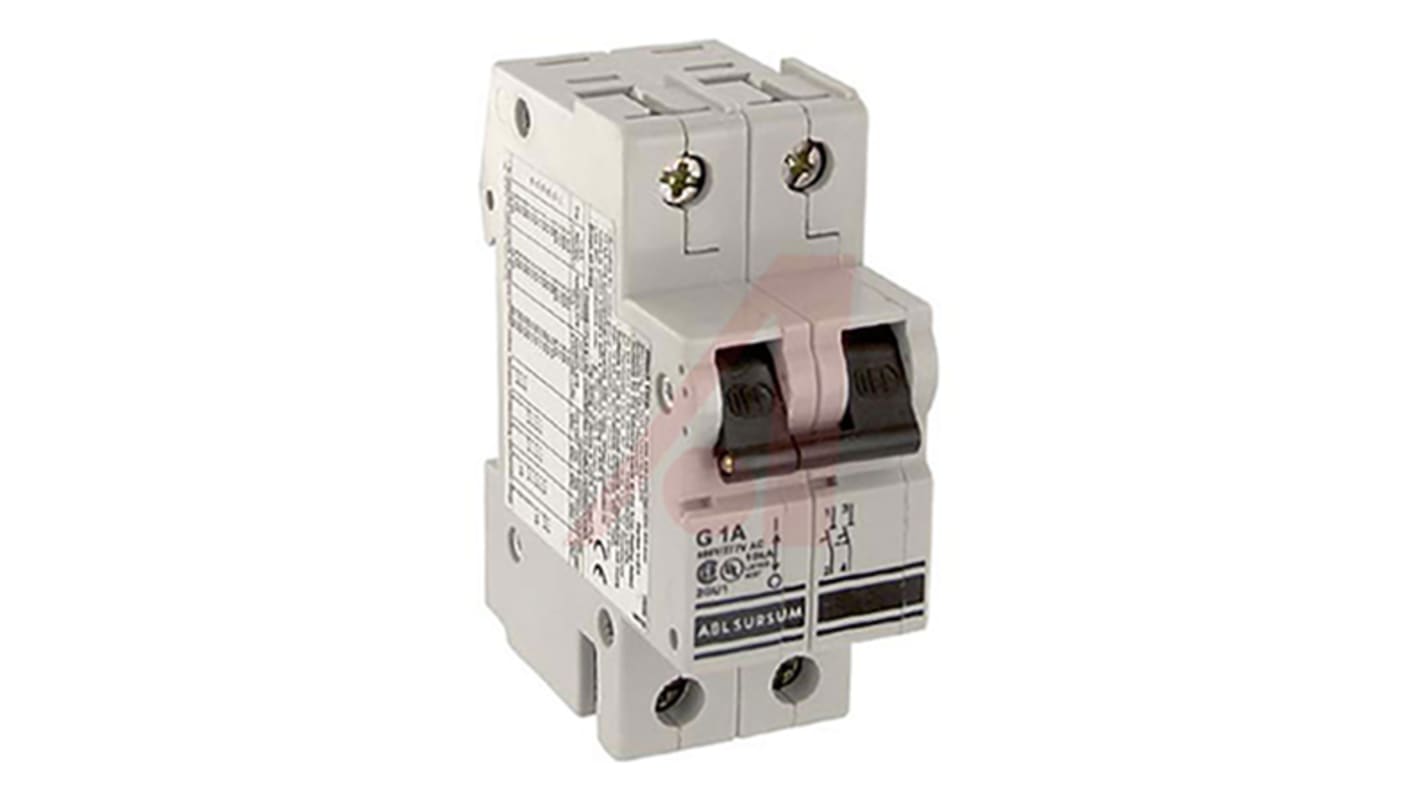

Altech V-EA Thermal Circuit Breaker - 2-Pole, DIN Rail, 1 A Current Rating, 10 kA, 80 V dc
- RS Stock No.:
- 899-1929
- Mfr. Part No.:
- 2GU1
- Brand:
- Altech
Subtotal (1 unit)*
Kr. 344,62
(exc. VAT)
Kr. 430,78
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | Kr. 344,62 |
*price indicative
- RS Stock No.:
- 899-1929
- Mfr. Part No.:
- 2GU1
- Brand:
- Altech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Altech | |
| Product Type | Thermal Circuit Breaker | |
| Current Rating | 1 A | |
| Series | V-EA | |
| Number of Poles | 2 | |
| Width | 35 mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Reset Actuator Type | Handle | |
| Height | 91.5mm | |
| Depth | 70mm | |
| Standards/Approvals | RoHS, UL, CSA | |
| Breaking Capacity | 10kA | |
| Rated DC Voltage | 80 V dc | |
| Select all | ||
|---|---|---|
Brand Altech | ||
Product Type Thermal Circuit Breaker | ||
Current Rating 1 A | ||
Series V-EA | ||
Number of Poles 2 | ||
Width 35 mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Reset Actuator Type Handle | ||
Height 91.5mm | ||
Depth 70mm | ||
Standards/Approvals RoHS, UL, CSA | ||
Breaking Capacity 10kA | ||
Rated DC Voltage 80 V dc | ||
- COO (Country of Origin):
- DE
Altech V-EA Series DIN Rail
Thermal Magnetic Circuit Breakers are found in most distribution boards. The thermal portion provides an "inverse time" response feature, which trips the circuit breaker sooner for larger overcurrent’s. The Altech V-EA series are primarily DIN Rail mounted and provide a compact solution to your protection requirements. All models are highly reliable and excellent quality.
DIN Rail Mounted
17.5mm width per pole
Thermal Magnetic
10kA Short Circuit Withstand Capacity
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
