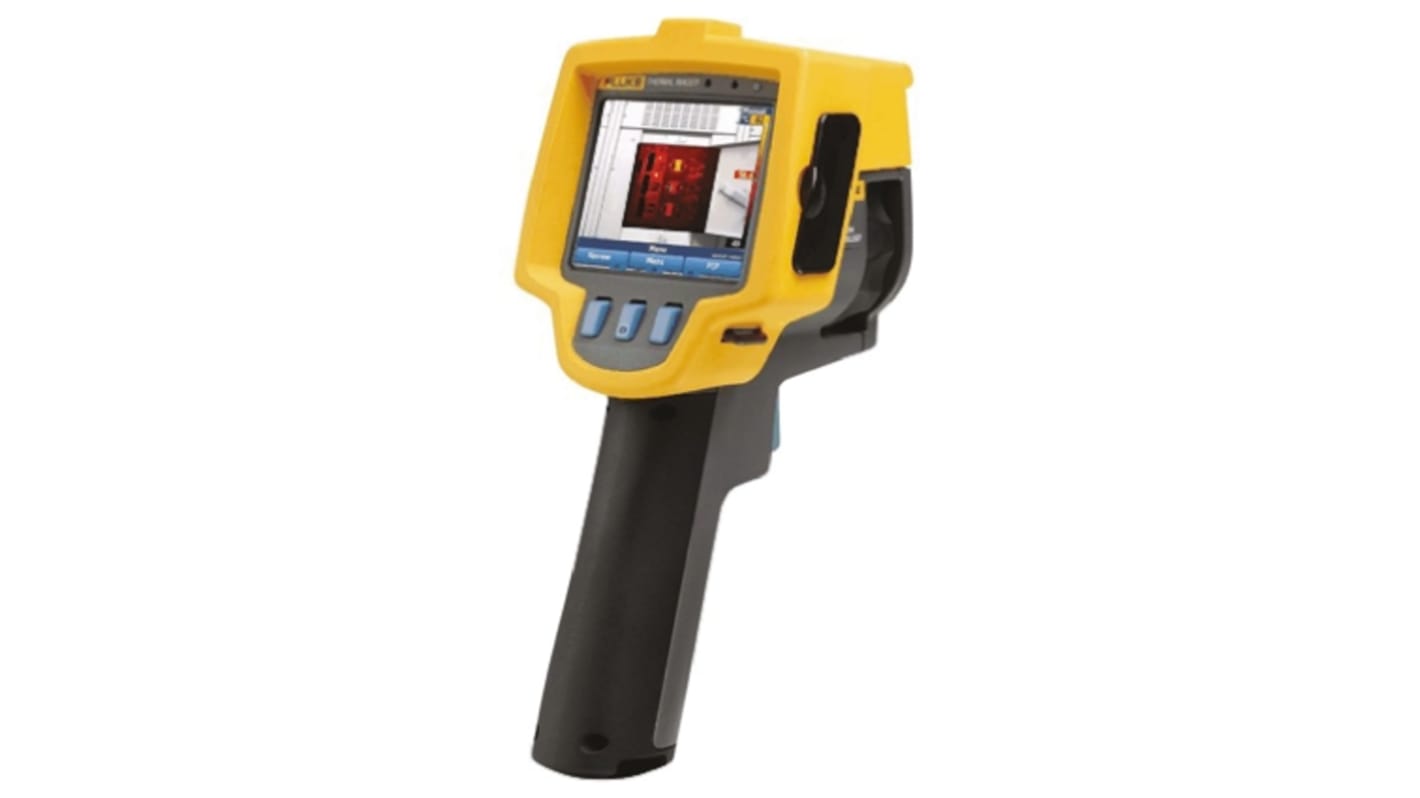

Fluke TIR1 Thermal Imaging Camera, -20 → +150 °C, 160 x 120pixel Detector Resolution

The Fluke TiR1 and TiR Thermal Imagers are built for tough environments, both indoor and outdoor. These high-performance, fully radiometric imagers have a high thermal sensitivity specification making them ideal for inspecting and diagnosing (potential) problems in buildings. They are optimized for testing roof systems, building insulation testing, moisture detection as well as air leakage and draft detection.

IR-Fusion® Technology simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. Images enhanced with IR-Fusion® help identify and report defects in buildings enabling repairs to be done as well as proving that the problem was corrected.-20ºC to 100ºC temperature range, ± 5ºC accuracy≤0.1ºC (100 mK) thermal sensitivity (NETD) identifies small temperature differences that could indicate problems 640 x 480 pixels, full colour visible light cameraWithstands dust and water – tested to IP54 rating High performance, low noise sensor provides high quality image and stable temperature readingEven the smallest details become visible with the large, widescreen full VGA colour LCD displayStore more than 3,000 screen images (.bmp format) for easy reporting direct into Microsoft Word® or 1,200 IR-Fusion images, including thermal image, visual image and temperature data reporting and analysis purpose. Data is stored on 2 GB SD memory card (supplied).

± 2ºC accuracy≤0.07ºC (70 mK) thermal sensitivity (NETD) to identify very small temperature differences that could indicate problems On screen emissivity correctionVoice annotations can be recorded with every image and saved along with individual images for future reference Center point & hot and cold markers measurement modesUser selectable blending of IR/Visual image in Picture-in-Picture modeFAST AUTO MANUAL TOGGLEFAST AUTO RESCALE

SmartView™ analysis and reporting software (with free upgrades through life of product), 2 GB SD Card, SD Card Reader for downloading images into your computer, Rugged hard carry case and portable soft carry case, Hand strap to be used left or right handed, Training CD, Rechargeable battery, AC charger/power supply including mains adapters, manual
