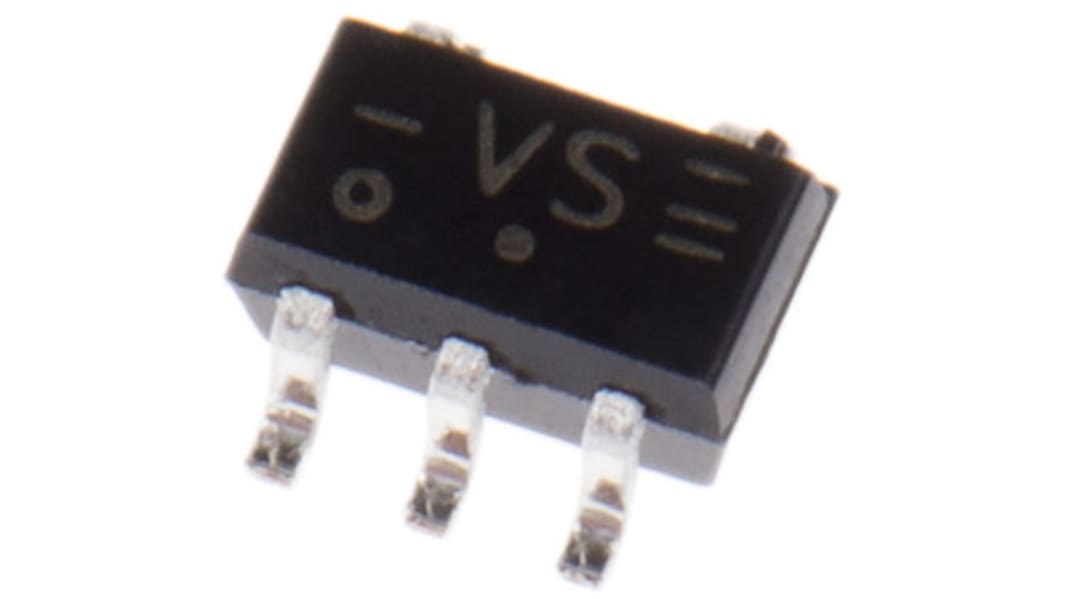

Nexperia, Logic Level Translator Translating Buffer 3 Voltage, 5-Pin TSSOP
- RS Stock No.:
- 165-9933
- Mfr. Part No.:
- 74AUP1T34GW,125
- Brand:
- Nexperia
Subtotal (1 reel of 3000 units)*
Kr. 3 819,00
(exc. VAT)
Kr. 4 773,00
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 3 000 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | Kr. 1,273 | Kr. 3 819,00 |
*price indicative
- RS Stock No.:
- 165-9933
- Mfr. Part No.:
- 74AUP1T34GW,125
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Direction Type | Uni-Directional | |
| Product Type | Logic Level Translator | |
| Logic Family | AUP | |
| Maximum Propagation Delay Time @ CL | 25.9ns | |
| Mount Type | Surface | |
| Number of Elements per Chip | 3 | |
| Package Type | TSSOP | |
| Pin Count | 5 | |
| Output Type | Single Ended | |
| Logic Function | Translating Buffer | |
| Maximum Low Level Output Current | 4mA | |
| Minimum Supply Voltage | 1.1V | |
| Maximum High Level Output Current | -4mA | |
| Maximum Supply Voltage | 3.6V | |
| Translation | Voltage | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | 74AUP1T34 | |
| Width | 1.35 mm | |
| Length | 2.25mm | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Direction Type Uni-Directional | ||
Product Type Logic Level Translator | ||
Logic Family AUP | ||
Maximum Propagation Delay Time @ CL 25.9ns | ||
Mount Type Surface | ||
Number of Elements per Chip 3 | ||
Package Type TSSOP | ||
Pin Count 5 | ||
Output Type Single Ended | ||
Logic Function Translating Buffer | ||
Maximum Low Level Output Current 4mA | ||
Minimum Supply Voltage 1.1V | ||
Maximum High Level Output Current -4mA | ||
Maximum Supply Voltage 3.6V | ||
Translation Voltage | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series 74AUP1T34 | ||
Width 1.35 mm | ||
Length 2.25mm | ||
Height 1mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
74AUP1G/74AUP2G/74AUP1T Family, Nexperia
74AUP Family
Industry-standard Advanced Ultra-low Power (AUP) logic family products for ultra-low power consumption, small footprint logic solutions for use in 1.8 V and mixed 1.8 V / 3.3 V circuit applications. The AUP logic family offers the following features:
Wide supply voltage range: 0.8 to 3.6V
Schmitt-trigger inputs for high noise immunity
Very low dynamic power dissipation
Enhanced ESD protection
Speed/power optimization
