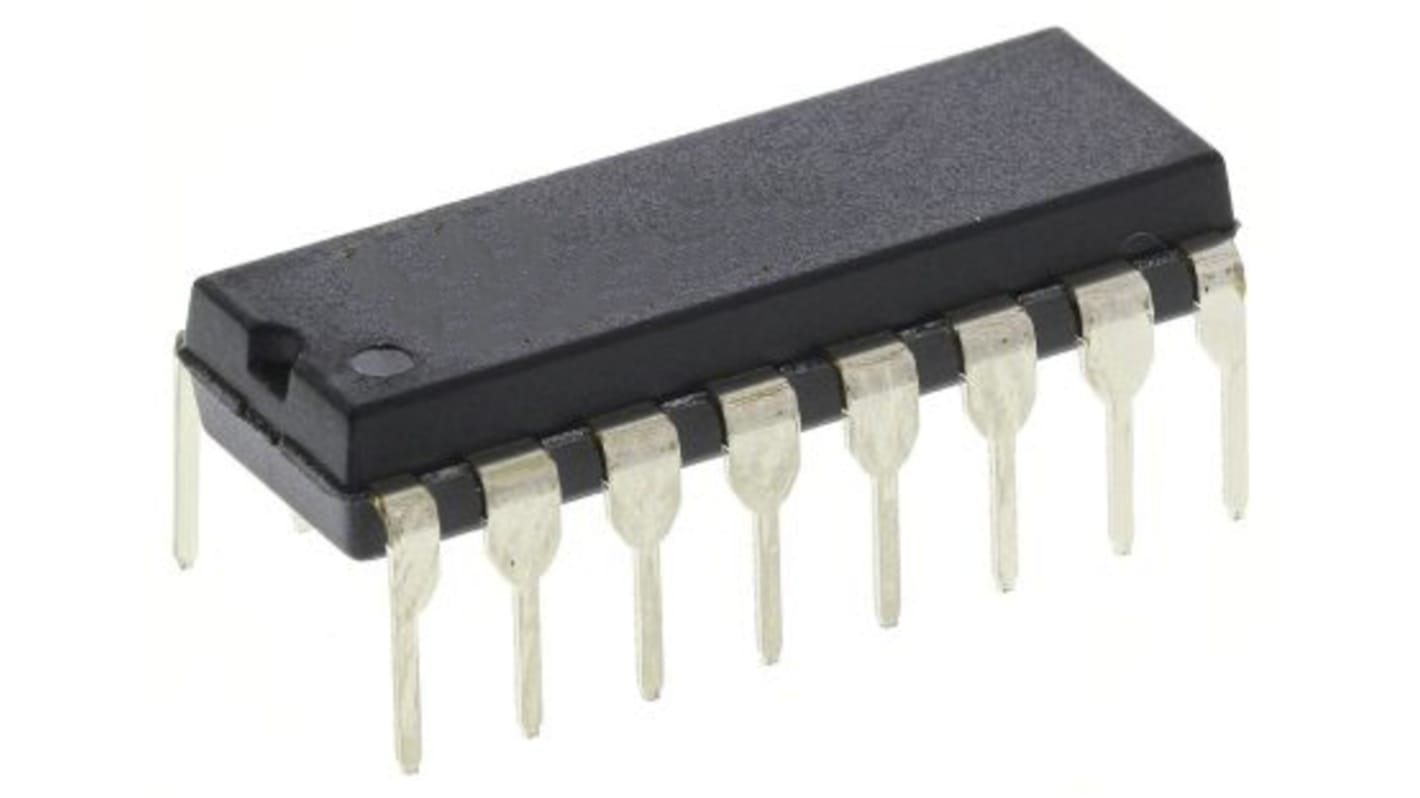

onsemi MC10H124PG, Logic Level Translator Translator, 16-Pin PDIP

View all Translator ICs
Bulk discount available

Subtotal 10 units (supplied in a tube)*

Kr. 682,20

(exc. VAT)

Kr. 852,80

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
10 - 24Kr. 68,22
26 - 98Kr. 65,065
100 - 248Kr. 56,425
250 +Kr. 53,87

*price indicative

Packaging Options:
RS Stock No.:
186-9436P
Mfr. Part No.:
MC10H124PG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Mounting Type

Through Hole

Package Type

PDIP

Pin Count

16

Output Type

ECL

Logic Function

Translator

Dimensions

19.69 x 7.11 x 4.95mm

Maximum Operating Supply Voltage

7 V

Maximum Operating Temperature

+75 °C

Minimum Operating Supply Voltage

0 V

Minimum Operating Temperature

0 °C

The MC10H124 is a quad translator for interfacing data and control signals between a saturated logic section and the MECL section of digital systems. The 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in power-supply current.

Propagation Delay, 1.5 ns Typical
Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
Voltage Compensated
MECL 10K Compatible
