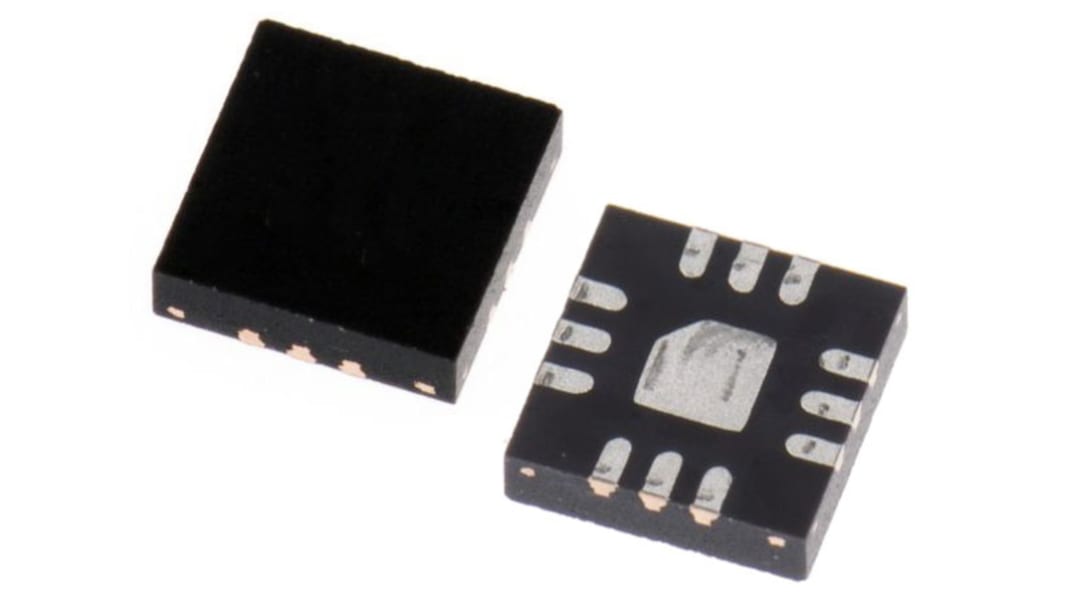

Maxim Integrated MAX3395EETC+T, Voltage Level Translator Level Translator Bi-Directional, 12-Pin TQFN
- RS Stock No.:
- 190-5967
- Mfr. Part No.:
- MAX3395EETC+T
- Brand:
- Maxim Integrated
1971 In stock for same day dispatch
Added
Price Each
Kr. 99,32
(exc. VAT)
Kr. 124,15
(inc. VAT)
| Units | Per unit |
| 1 - 9 | Kr. 99,32 |
| 10 - 24 | Kr. 89,66 |
| 25 - 99 | Kr. 85,66 |
| 100 - 249 | Kr. 74,10 |
| 250 + | Kr. 70,88 |
- RS Stock No.:
- 190-5967
- Mfr. Part No.:
- MAX3395EETC+T
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
±15kV ESD Protection on I/O VCC_ Lines
Bidirectional Level Translation Without Direction Pin
I/O VL_ and I/O VCC_ 10mA Sink-/15mA Source-Current Capability
Slew-Rate Enhancement Circuitry Supports Larger Capacitive Loads or Larger External Pullup Resistors
6Mbps Push-Pull/1Mbps Open-Drain Guaranteed Data Rate
Wide Supply-Voltage Range: Operation Down to +1.2V on VL and +1.65V on VCC
Low Supply Current in Tri-State Output Mode (3μA typ)
Low Quiescent Current
Thermal-Shutdown Protection
UCSP, TDFN, and TQFN Packages
Applications
Cell Phones
High-Speed Bus Fan-Out Expansion
Multivoltage Bidirectional Level Translation
Open-Drain Rise-Time Speed Up
SPI™, MICROWIRE™, and I²C Level Translation
Telecom, Networking, Server, RAID/SAN
Bidirectional Level Translation Without Direction Pin
I/O VL_ and I/O VCC_ 10mA Sink-/15mA Source-Current Capability
Slew-Rate Enhancement Circuitry Supports Larger Capacitive Loads or Larger External Pullup Resistors
6Mbps Push-Pull/1Mbps Open-Drain Guaranteed Data Rate
Wide Supply-Voltage Range: Operation Down to +1.2V on VL and +1.65V on VCC
Low Supply Current in Tri-State Output Mode (3μA typ)
Low Quiescent Current
Thermal-Shutdown Protection
UCSP, TDFN, and TQFN Packages
Applications
Cell Phones
High-Speed Bus Fan-Out Expansion
Multivoltage Bidirectional Level Translation
Open-Drain Rise-Time Speed Up
SPI™, MICROWIRE™, and I²C Level Translation
Telecom, Networking, Server, RAID/SAN
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | TQFN |
| Output Type | 3 State, Open Drain |
| Pin Count | 12 |
| Dimensions | 4.1 x 4.1 x 0.75mm |
| Logic Function | Level Translator |
| Translation | Bi-Directional |
| Maximum Propagation Delay Time @ Maximum CL | 600ns |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 1.65 V |
| Minimum Operating Temperature | -40 °C |
