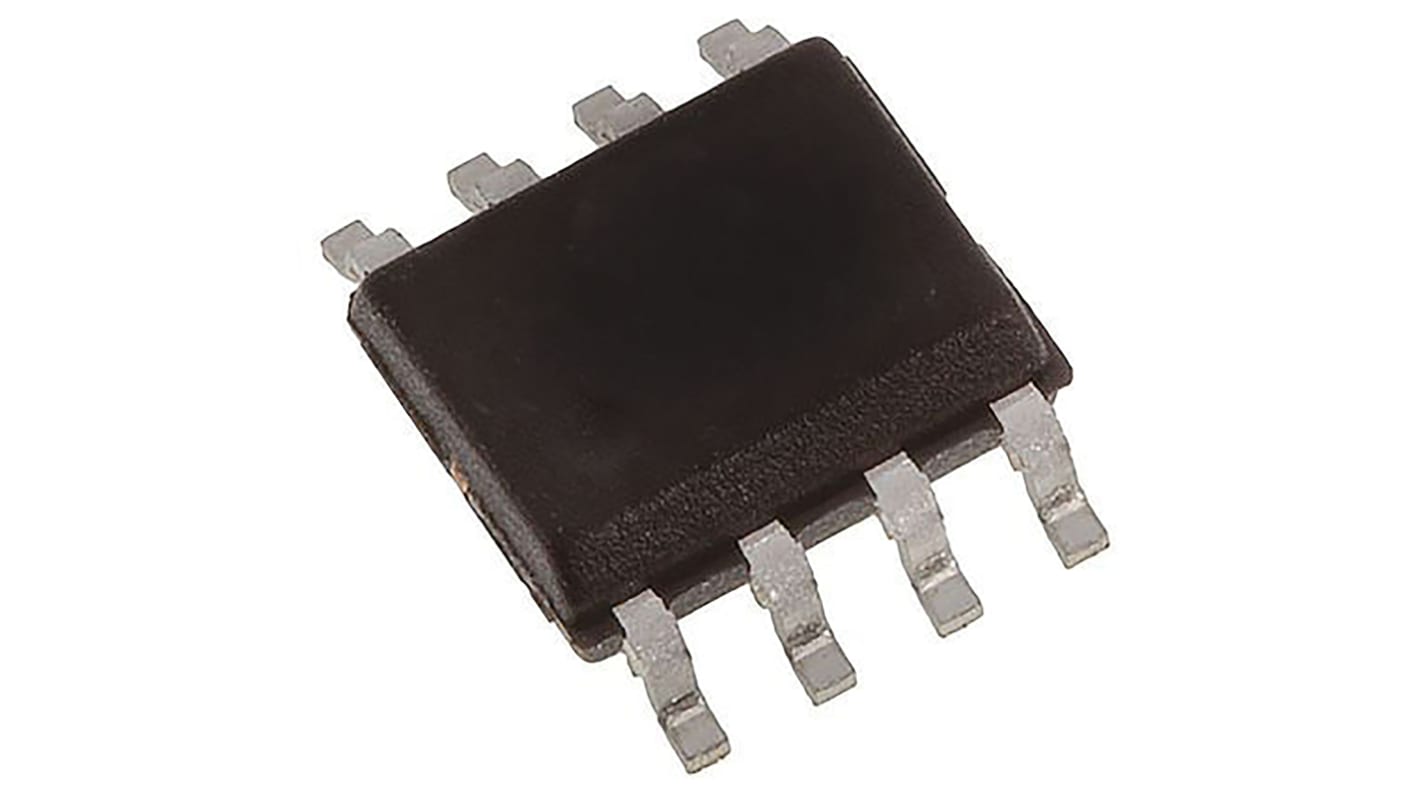

onsemi MC100EPT26DG, Logic Level Translator Translator LVPECL/LVDS to LVTTL, 8-Pin SOIC
- RS Stock No.:
- 806-2668
- Mfr. Part No.:
- MC100EPT26DG
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 806-2668
- Mfr. Part No.:
- MC100EPT26DG
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | ECL | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Output Type | TTL | |
| Pin Count | 8 | |
| Logic Function | Translator | |
| Dimensions | 5 x 4 x 1.5mm | |
| Maximum Low Level Output Current | 24mA | |
| Maximum High Level Output Current | -3mA | |
| Translation | LVPECL/LVDS to LVTTL | |
| Maximum Propagation Delay Time @ Maximum CL | 2.2ns | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 3 V | |
| Minimum Operating Temperature | -40 °C | |
