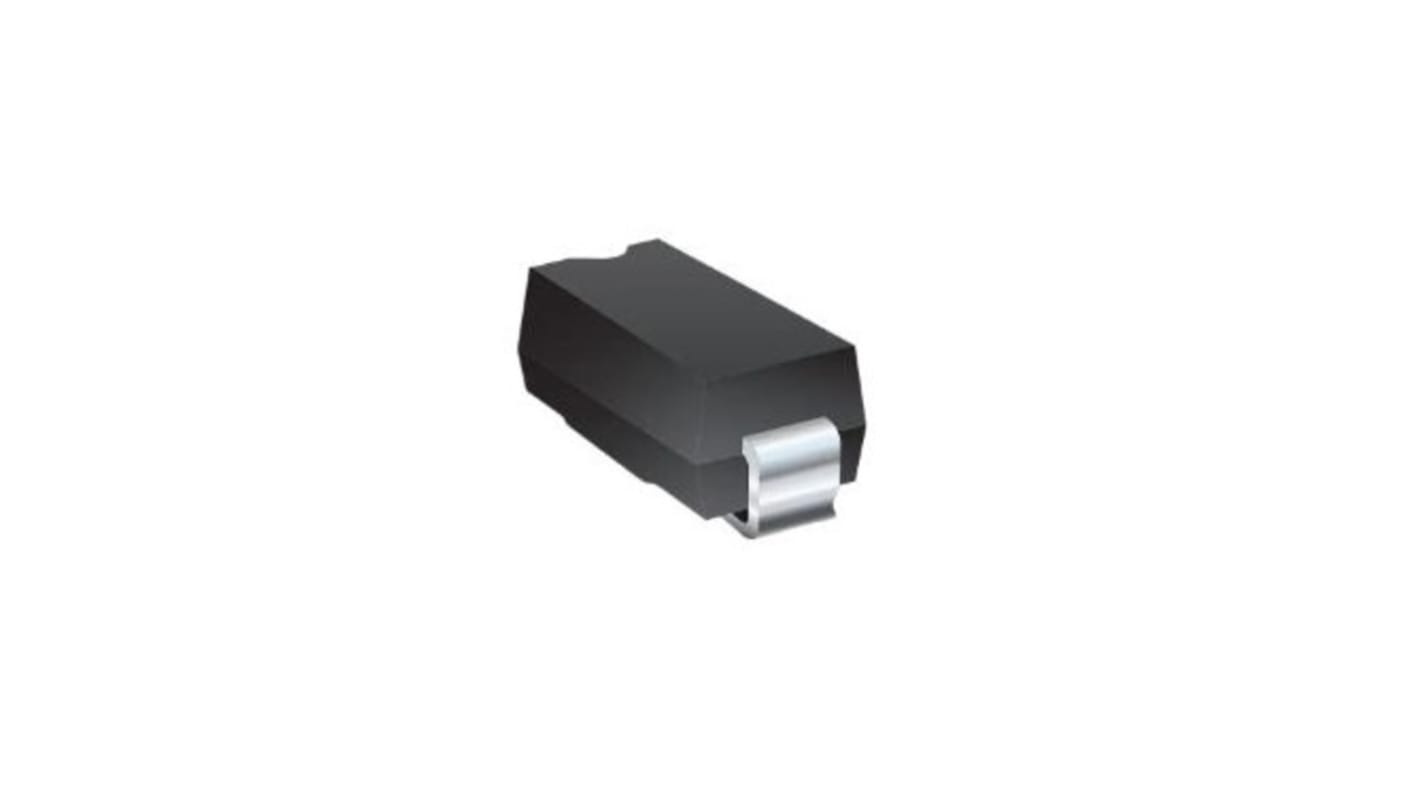

Bourns SMBJ20A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
- RS Stock No.:
- 266-2051
- Mfr. Part No.:
- SMBJ20A
- Brand:
- Bourns
View all TVS Diodes
Available to back order for despatch 29.01.2024
Price Each (On a Reel of 3000)
kr 1,148
(exc. VAT)
kr 1,435
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 6000 | kr 1,148 | kr 3 444,00 |
| 9000 - 12000 | kr 1,056 | kr 3 168,00 |
| 15000 + | kr 0,965 | kr 2 895,00 |
| *price indicative | ||
- RS Stock No.:
- 266-2051
- Mfr. Part No.:
- SMBJ20A
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Bourns transient voltage suppressor diode for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format. Typical fast response time is less than 1.0 picosecond for unidirectional devices.
RoHS compliant
Standoff voltage 5 to 495 volts
Standoff voltage 5 to 495 volts
Specifications
| Attribute | Value |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 32.4V |
| Minimum Breakdown Voltage | 22.2V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Number of Elements per Chip | 1 |
