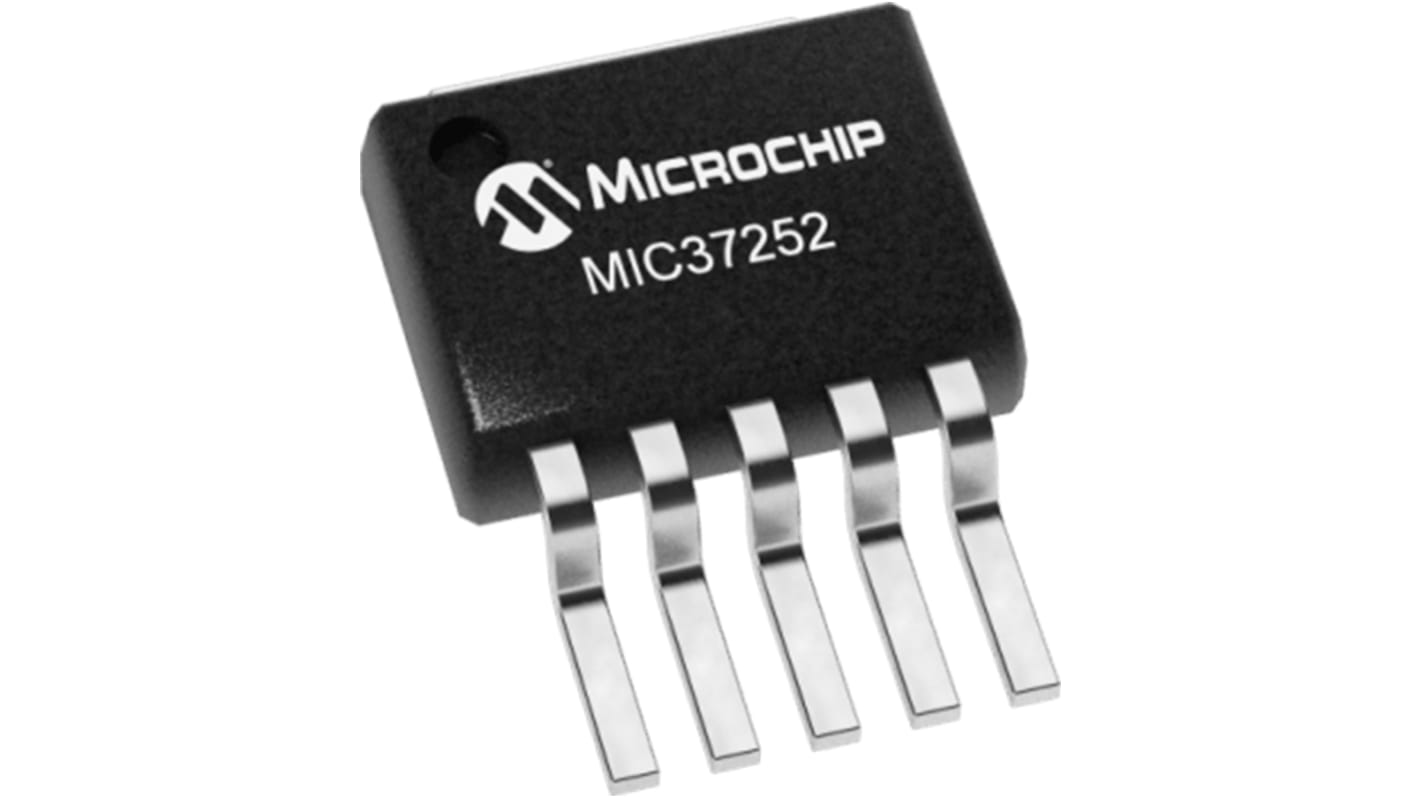

Microchip MIC37252WR, LDO Regulator, 2.5A Adjustable, 1.24 → 5.5 V, ±3% 5-Pin, SPAK

View all Voltage Regulators
Unavailable
RS will no longer stock this product.
Packaging Options:
RS Stock No.:
177-0771
Mfr. Part No.:
MIC37252WR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Regulator Type

Low Dropout Voltage

Maximum Output Current

2.5A

Number of Outputs

1

Output Voltage

1.24 → 5.5 V

Line Regulation

0.5 %

Accuracy

±3%

Load Regulation

1 %

Mounting Type

Surface Mount

Package Type

SPAK

Pin Count

5

Reference Voltage

1.27V

Output Type

Adjustable

Dimensions

9.52 x 8.13 x 2.03mm

Minimum Operating Temperature

-40 °C

Height

2.03mm

Minimum Input Voltage

3 V

Maximum Operating Temperature

+125 °C

Maximum Input Voltage

6 V

Length

9.52mm

Width

8.13mm

COO (Country of Origin):
CN
The MIC37252 is a 2.5A low-dropout linear voltage regulator that provides a low-voltage, high-current output with a minimum of external components. It offers high precision, low dropout, and low ground current.The MIC37252 operates from an input voltage of 3.0V to 6.0V.

2.5A minimum guaranteed output current
Ideal for 3.3V to 1.8V conversion
Stable with ceramic or tantalum capacitor
±2.0% initial output tolerance
Dropout voltage is 550mV at 2.5A
Excellent line and load regulation specifications
2.5A minimum guaranteed output current
Ideal for 3.3V to 1.8V conversion
Stable with ceramic or tantalum capacitor
±2.0% initial output tolerance
Dropout voltage is 550mV at 2.5A
Excellent line and load regulation specifications
Logic controlled shutdown
Thermal shutdown and current limit protection
Reverse leakage protection
S-Pak and TO-263 packages
