Nisshinbo Micro Devices NJM2397F, 1 Linear Voltage, Voltage Regulator 1.5A, 1.5 → 20 V 4-Pin, TO-220F

RS Stock No.:: 178-2327
Mfr. Part No.:: NJM2397F
Brand:: Nisshinbo Micro Devices

Nisshinbo Micro Devices NJM2397F, 1 Linear Voltage, Voltage Regulator 1.5A, 1.5 → 20 V 4-Pin, TO-220F

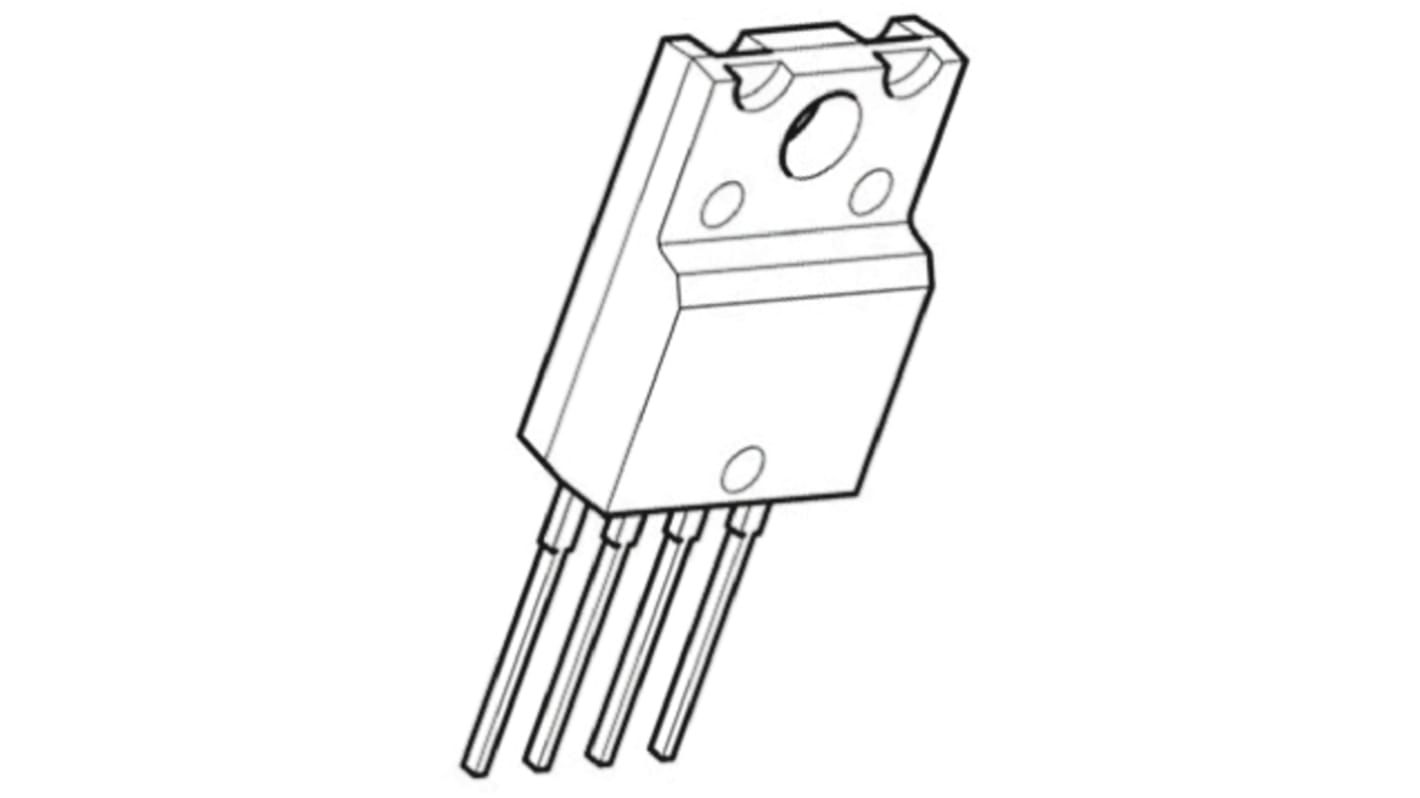

Image representative of range

Available to back order for despatch 21.10.2024

Price Each (In a Tube of 50)

Kr. 11,715

(exc. VAT)

Kr. 14,644

(inc. VAT)

Units	Per unit	Per Tube*
50 +	Kr. 11,715	Kr. 585,75

*price indicative

RS Stock No.:: 178-2327
Mfr. Part No.:: NJM2397F
Brand:: Nisshinbo Micro Devices

NJM2397 ADJUSTABLE LOW DROPOUT VOLTAGE REGULATOR Data Sheet

Attribute	Value
Regulator Type	Linear Voltage
Maximum Output Current	1.5A
Number of Outputs	1
Output Voltage	1.5 → 20 V
Line Regulation	0.16 %/V
Load Regulation	1.4 %/A
Polarity	Positive
Mounting Type	Through Hole
Package Type	TO-220F
Pin Count	4
Reference Voltage	1.342V
Output Type	Adjustable
Dimensions	10 x 4.5 x 9.5mm
Minimum Operating Temperature	-40 °C
Height	9.5mm
Maximum Input Voltage	35 V
Maximum Operating Temperature	+85 °C
Minimum Input Voltage	3.8 V
Width	4.5mm
Length	10mm

Nisshinbo Micro Devices NJM2397F, 1 Linear Voltage, Voltage Regulator 1.5A, 1.5 → 20 V 4-Pin, TO-220F

Adjustable LDO Linear Voltage Regulators, New Japan Radio
