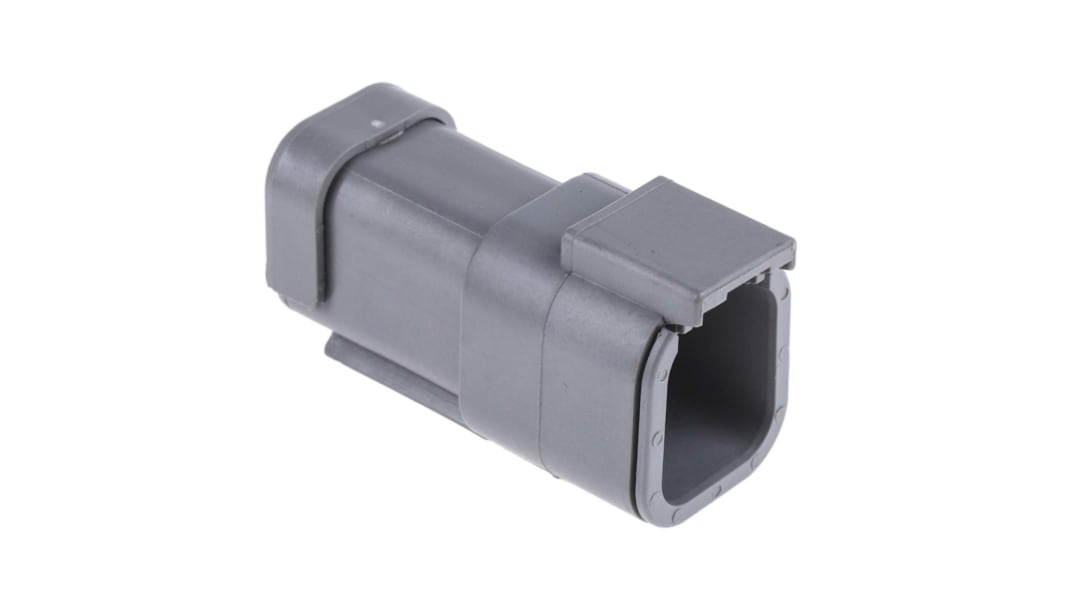

    Deutsch, DTM Automotive Connector Socket 6 Way, Crimp Termination

    RS Stock No.:
    724-2289
    Mfr. Part No.:
    DTM046P-E003
    Brand:
    Deutsch
    Deutsch
    View all Automotive Connectors
    Available to back order for despatch when stock is available
    Add to Basket
    Units

    This product is currently unavailable to backorder.

    Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

    Added

    Price Each

    kr 84,02

    (exc. VAT)

    kr 105,02

    (inc. VAT)

    UnitsPer unit
    1 - 9kr 84,02
    10 - 49kr 76,46
    50 +kr 68,90
    RS Stock No.:
    724-2289
    Mfr. Part No.:
    DTM046P-E003
    Brand:
    Deutsch

    Legislation and Compliance


    Product Details

    DTM Series Receptacles


    Deutsch DTM Series connectors are ideal for transport and other harsh environment signal connector applications. They are oftne used in engine compartments and transmission tunnels. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.

    Features and Benefits


    • Tactile and audible connector mating
    • Rugged thermoplastic connector housing
    • Hand insertable/removable contacts
    • Operating temperature range: -55 → +125 °C
    • Dielecric withstand voltage 1500 V ac
    • Nickel plated copper alloy contacts (available separately)
    • Positive contact retention
    • Suitable for Size 20 Contacts

    Available in this Range


    • Stock No.724-2273 is a 2 way wire to wire Receptacle Housing for Male Terminals
    • Stock No.724-2276 is a 3 way wire to wire Receptacle Housing for Male Terminals
    • Stock No.724-2270 is a 4 way wire to wire Receptacle Housing for Male Terminals
    • Stock No.724-2289 is a 6 way wire to wire Receptacle Housing for Male Terminals
    • Stock No.724-2282 is a 8 way wire to wire Receptacle Housing for Male Terminals with End Cap
    • Stock No.724-2295 is a 12 way wire to wire Receptacle Housing for Male Terminals (Black)
    • Stock No.724-2286 is a 12 way wire to wire Receptacle Housing for Male Terminals (Grey)
    • Stock No.915-6569 is a 2 way wire to wire Receptacle Housing for Male Terminals
    • Stock No.915-6578 is a 4 way wire to wire Receptacle Housing for Male Terminals


    Deutsch DT Series Connectors


    Deutsch DT series connectors are ideally suited for applications that require a secure reliable connector in harsh environments such as under-the-hood, transmission tunnels and many others areas that require secure connections in both power and signal.

    Specifications

    AttributeValue
    Number of Contacts6
    TypeAutomotive Connector
    GenderFemale
    Number of Rows2
    Current Rating7.5A
    SeriesDTM
    ColourGrey
    Termination MethodCrimp
    Height23.8mm
    Width15.24mm
    Depth43.69mm
    Housing MaterialThermoplastic
    Minimum Operating Temperature-55°C
    Maximum Operating Temperature+125°C
    Contact PlatingNickel
    Contact MaterialCopper Alloy
