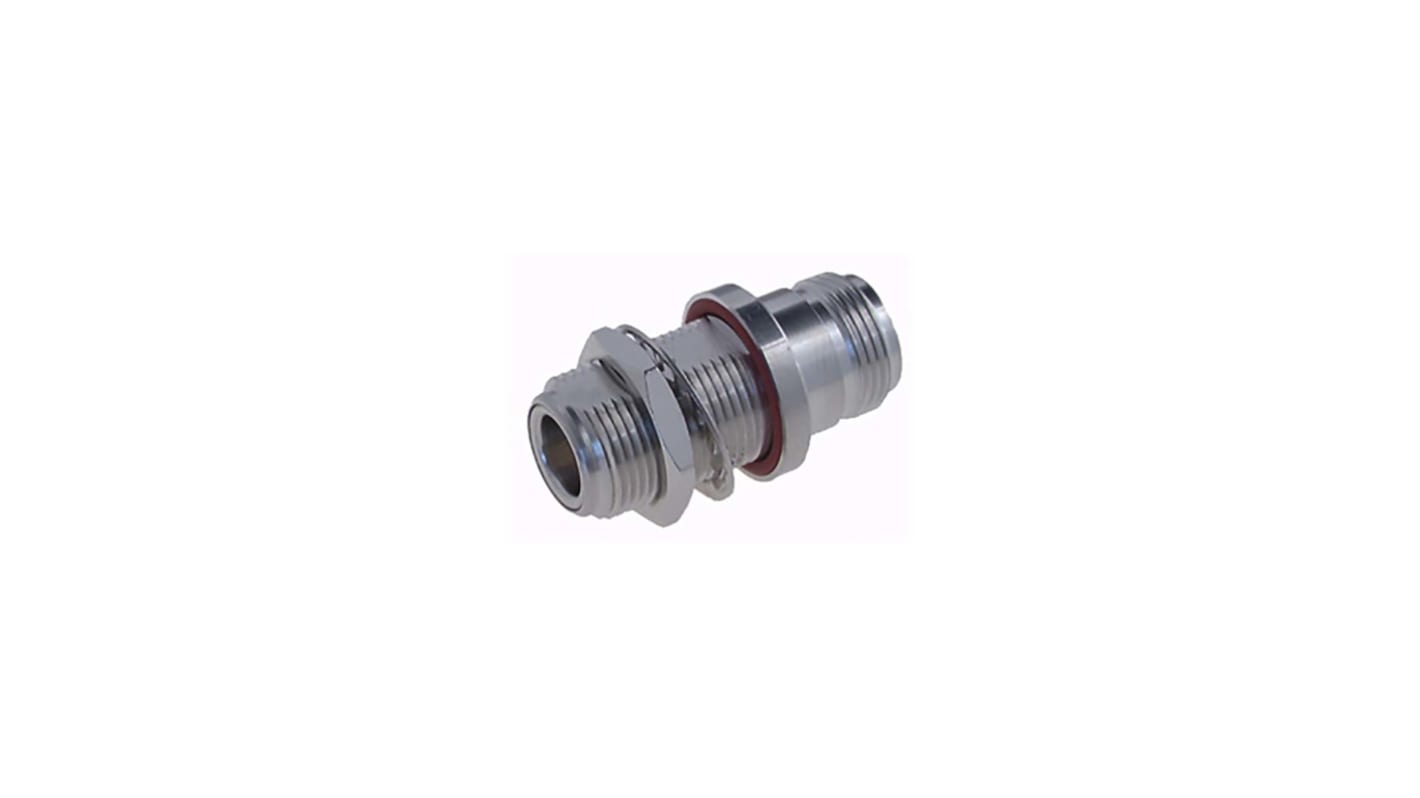

Huber+Suhner Straight 50 Ω Coaxial Adapter 18GHz Female Female

RS Stock No.:: 205-9176
Distrelec Article No.:: 302-21-952
Mfr. Part No.:: 34_N-50-0-3/133_NE
Brand:: Huber+Suhner

Huber+Suhner Straight 50 Ω Coaxial Adapter 18GHz Female Female

Subtotal (1 unit)*

Kr. 1 273,84

(exc. VAT)

Kr. 1 592,30

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

83 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 273,84

*price indicative

RS Stock No.:: 205-9176
Distrelec Article No.:: 302-21-952
Mfr. Part No.:: 34_N-50-0-3/133_NE
Brand:: Huber+Suhner

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Huber+Suhner
	Product Type	Coaxial Adapter
	Adapter Type	N Jack to N Jack
	Converts From Type	N Socket
	Converts to Type	N Jack
	Mount Type	Cable
	Impedance	50Ω
	Orientation	Straight
	Operating Frequency	18GHz
	Polarity	Normal
	Contact Plating	Gold Plating, Sucoplate Plated
	Coupling Style	Threaded
	Converts From Gender - Connector	Female
	Body Plating	Sucoplate
	Converts to Gender - Contact	Female
	Converts to Gender - Connector	Female
	Converts From Gender - Contact	Female
	Cable Type	Coaxial
	Contact Material	Beryllium Copper Alloy, Brass
	Standards/Approvals	2011/65/EU
	Series	N - IEC 61169-16_MIL-STD-348A/304_CECC 22210

	Select all
	Brand Huber+Suhner
	Product Type Coaxial Adapter
	Adapter Type N Jack to N Jack
	Converts From Type N Socket
	Converts to Type N Jack
	Mount Type Cable
	Impedance 50Ω
	Orientation Straight
	Operating Frequency 18GHz
	Polarity Normal
	Contact Plating Gold Plating, Sucoplate Plated
	Coupling Style Threaded
	Converts From Gender - Connector Female
	Body Plating Sucoplate
	Converts to Gender - Contact Female
	Converts to Gender - Connector Female
	Converts From Gender - Contact Female
	Cable Type Coaxial
	Contact Material Beryllium Copper Alloy, Brass
	Standards/Approvals 2011/65/EU
	Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210

Datasheet - 34_N-50-0-3/133_NE

Non Compliant with RoHS

Huber+Suhner Coaxial Adapter, 50Ω Impedance, 18GHz Operating Frequency - 34_N-50-0-3/133_NE

This coaxial adapter converts between two N-type interfaces to enable signal continuity in RF cable runs. It is intended for cable-mounted use in systems requiring a threaded connection with standard polarity and functions across high-frequency environments up to 18 GHz. The adapter is constructed for 50 Ω systems and combines mixed metal contacts with protective plating to maintain conductive integrity in demanding electrical and mechanical installations.

Features and Benefits:

• 50 Ω impedance ensures matched system transmission
• Operates to 18 GHz for high-frequency signal handling
• Threaded coupling provides secure mechanical connection
• Female-to-female configuration enables in-line cable joins
• Gold-plated contacts reduce contact resistance and wear
• Sucoplate body plating enhances surface corrosion resistance

Applications

• Suitable for RF test rigs requiring N jack to N jack coaxial adapter 50 Ω
• Ideal for antenna feedline repairs and extensions in lab setups
• Used with industrial radio links needing 18 GHz N jack cable adapter
• Can be used for military-specification connector interfaces in assemblies
• Used for microwave component interconnections in electronics production

What contact materials are used and why do they matter?

Contacts combine beryllium copper alloy and brass to balance spring performance with conductivity for repeatable mating cycles.

How is environmental durability addressed in the connector plating?

The external body uses sucoplate plating while internal contacts carry gold plating to protect against oxidation and maintain low-loss connections.

What coupling method does the adapter use for retention?

It employs a threaded coupling style to ensure a reliable, vibration-resistant mechanical joint.

Will this adapter meet standard Interface dimensions for interoperability?

The design conforms to MIL-STD-348A and IEC 61169-16 Interface definitions to ensure compatibility with standard N connectors.

Is the product compliant with restricted substances regulations?

The adapter meets 2011/65/EU requirements for restricted hazardous substances.
