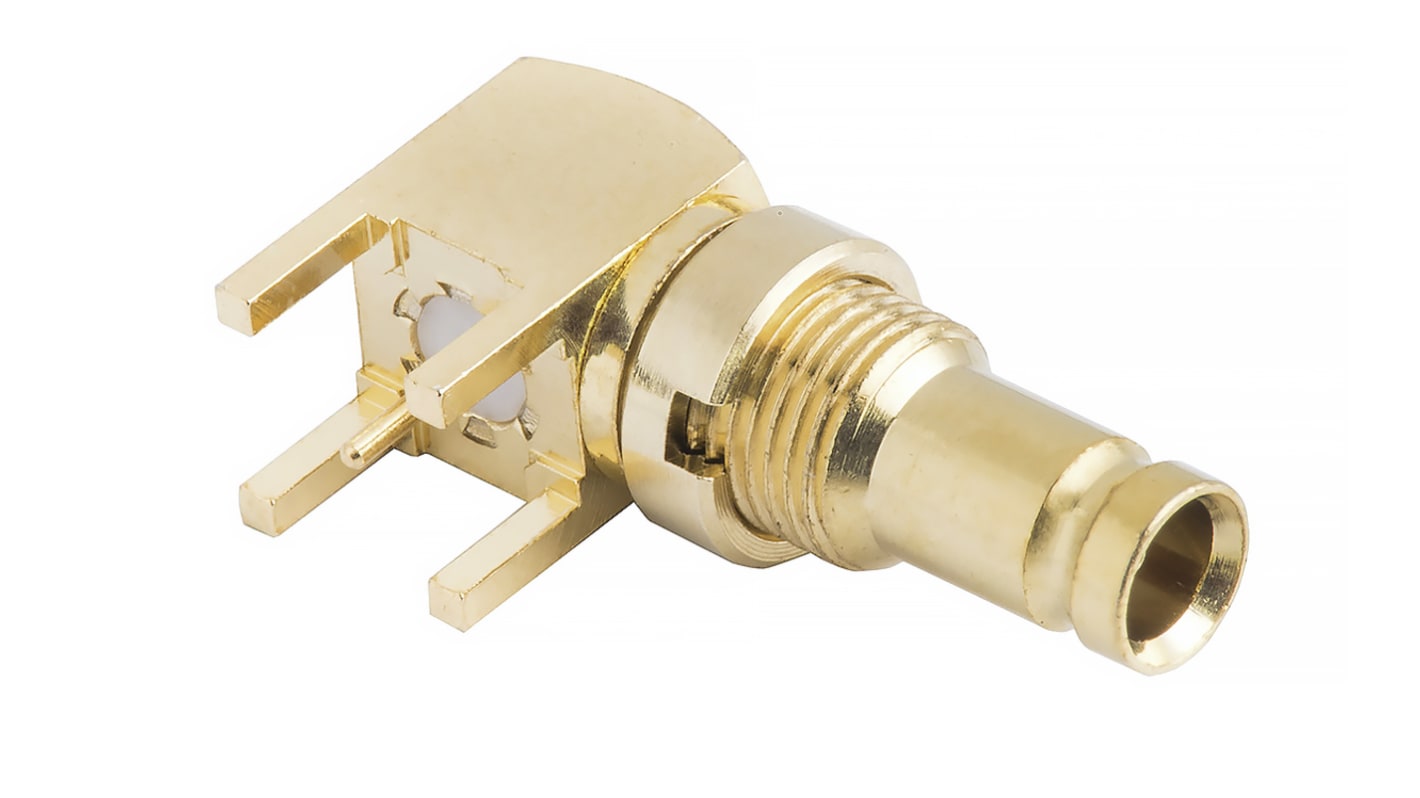

RS PRO PCB Male/Female 1/2.3 Connector, 75 Ω, Right Angle Body Solder

View all Coaxial Connectors
Bulk discount available

Subtotal (1 unit)*

Kr. 68,07

(exc. VAT)

Kr. 85,09

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9Kr. 68,07
10 - 24Kr. 63,55
25 - 49Kr. 59,85
50 - 99Kr. 57,08
100 +Kr. 53,95

*price indicative

RS Stock No.:
170-7022
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Coaxial Connector

Coaxial Connector Type

1/2.3 Connector

Mount Type

PCB

Impedance

75Ω

Connector Gender

Male/Female

Orientation

Right Angle

Size

Standard

Bulkhead

Yes

Operating Frequency

6GHz

Body Plating

Gold

Minimum Operating Temperature

-55°C

Polarity

Normal

Termination Type

Solder

Maximum Operating Temperature

125°C

Contact Gender

Male/Female

Contact Material

Beryllium Copper Alloy

Standards/Approvals

No

Contact Plating

Gold

COO (Country of Origin):
TW
This is a 75 ohm 1.0/2.3 jack connector for PC board application. It will be horizontal to the PC board after soldering on PC board because of its right angle and PCB mount type. It has excellent performance form DC to 6GHz. This connector also has the bulkhead function, the applied panel thickness is .098" max. Provides superior VSWR, impedance and return loss through 6 GHz.

Impedance: 75 OHM

Frequency Range:DC-6 GHz

V.S.W.R: 1.3 MAX

High Speed High Definition Video Applications such as 4K ULTRA HD TV and CoaXPress (CXP)

Finish: gold plated center contact & nickel plated body

Insulation: Teflon
