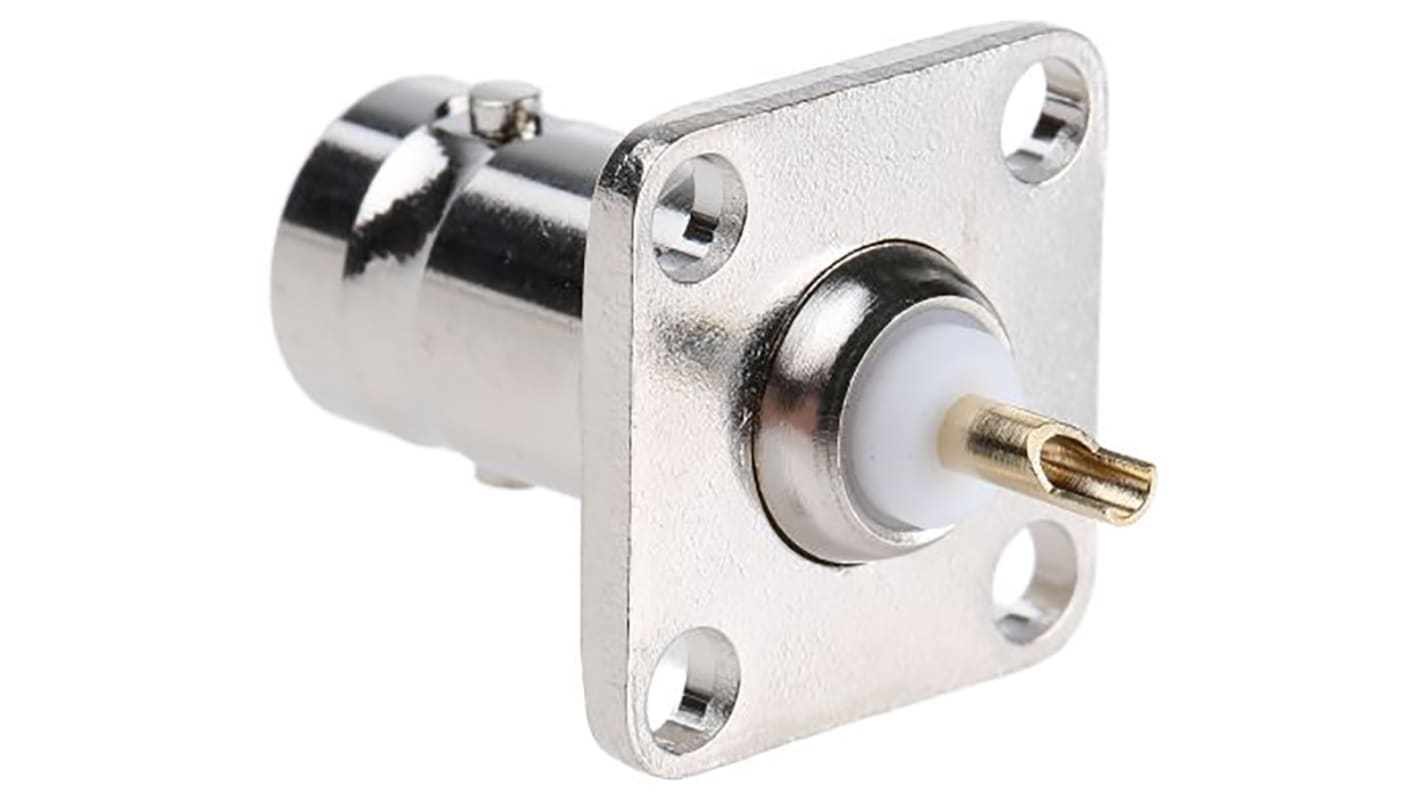

Telegartner BNC Series Coaxial Connector Flange Female BNC, 75 Ω, Straight Body Solder
- RS Stock No.:
- 193-8394
- Mfr. Part No.:
- J01003A1937
- Brand:
- Telegartner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 155,58
(exc. VAT)
Kr. 194,48
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Temporarily out of stock
- 2 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | Kr. 155,58 |
| 15 - 49 | Kr. 138,08 |
| 50 - 99 | Kr. 101,02 |
| 100 - 249 | Kr. 97,93 |
| 250 + | Kr. 89,80 |
*price indicative
- RS Stock No.:
- 193-8394
- Mfr. Part No.:
- J01003A1937
- Brand:
- Telegartner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telegartner | |
| Coaxial Connector Type | BNC | |
| Product Type | Coaxial Connector | |
| Mount Type | Flange | |
| Impedance | 75Ω | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 4GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Nickel | |
| Maximum Operating Temperature | 165°C | |
| Polarity | Normal | |
| Termination Type | Solder | |
| Contact Gender | Female | |
| Series | BNC | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Telegartner | ||
Coaxial Connector Type BNC | ||
Product Type Coaxial Connector | ||
Mount Type Flange | ||
Impedance 75Ω | ||
Orientation Straight | ||
Connector Gender Female | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 4GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Nickel | ||
Maximum Operating Temperature 165°C | ||
Polarity Normal | ||
Termination Type Solder | ||
Contact Gender Female | ||
Series BNC | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- DE
Telegartner 50 Ω and 75 Ω Straight Panel Mount BNC Solder Jacks
From Telegartner, a range of 50 Ω and 75 Ω panel mount straight solder jacks. The BNC panel mount jacks have gold plated beryllium copper contacts ad a PTFE insulator. Featuring a simple bayonet coupling mechanism the connector can be used up to 4 GHz. Requiring only a quarter turn to connect and disconnect this connection method makes the BNC connector one of the most commonly used coaxial RF connectors around.
Features and Benefits
• Bayonet coupling
• IP54 rated between mated plug and jack
• Up to 4 GHz
Applications
• Signal
• Data
• Video transmission
Telegärtner BNC RF Connectors
