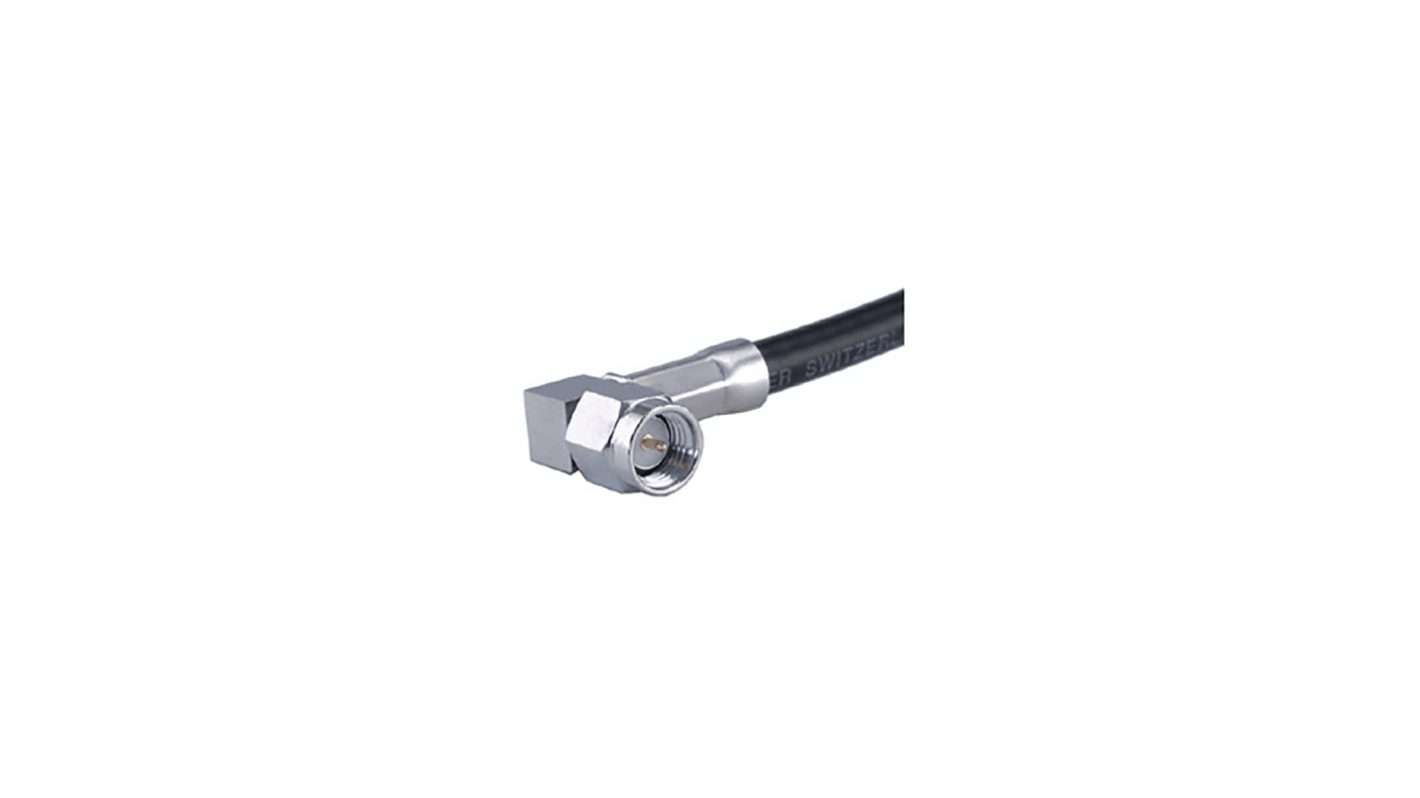

Huber+Suhner 16_SMA-50-3-146/133_NE Series Cable Male SMA, 50 Ω, Right Angle Body Crimp
- RS Stock No.:
- 205-8987
- Distrelec Article No.:
- 302-15-024
- Mfr. Part No.:
- 16_SMA-50-3-146/133_NE
- Brand:
- Huber+Suhner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 174,76
(exc. VAT)
Kr. 218,45
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 174,76 |
| 10 - 24 | Kr. 159,54 |
| 25 - 49 | Kr. 146,76 |
| 50 - 99 | Kr. 135,99 |
| 100 + | Kr. 122,32 |
*price indicative
- RS Stock No.:
- 205-8987
- Distrelec Article No.:
- 302-15-024
- Mfr. Part No.:
- 16_SMA-50-3-146/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Coaxial Connector Type | SMA | |
| Product Type | Coaxial Connector | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Connector Gender | Male | |
| Orientation | Right Angle | |
| Cable Type | Coaxial | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 18GHz | |
| Body Plating | Brass | |
| Minimum Operating Temperature | -65°C | |
| Polarity | Normal | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 165°C | |
| Series | 16_SMA-50-3-146/133_NE | |
| Contact Gender | Male | |
| Contact Material | Brass | |
| Standards/Approvals | RoHS - including 2015/863 and 2017/2102, ISO/TS 16949, ISO 9001, ISO 14001, IRIS | |
| Contact Plating | Gold Plating | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Coaxial Connector Type SMA | ||
Product Type Coaxial Connector | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Connector Gender Male | ||
Orientation Right Angle | ||
Cable Type Coaxial | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 18GHz | ||
Body Plating Brass | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Termination Type Crimp | ||
Maximum Operating Temperature 165°C | ||
Series 16_SMA-50-3-146/133_NE | ||
Contact Gender Male | ||
Contact Material Brass | ||
Standards/Approvals RoHS - including 2015/863 and 2017/2102, ISO/TS 16949, ISO 9001, ISO 14001, IRIS | ||
Contact Plating Gold Plating | ||
- COO (Country of Origin):
- CH
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact crimped
Weight 0.0057 kg
Operating temperature -65 °C to 165 °C
