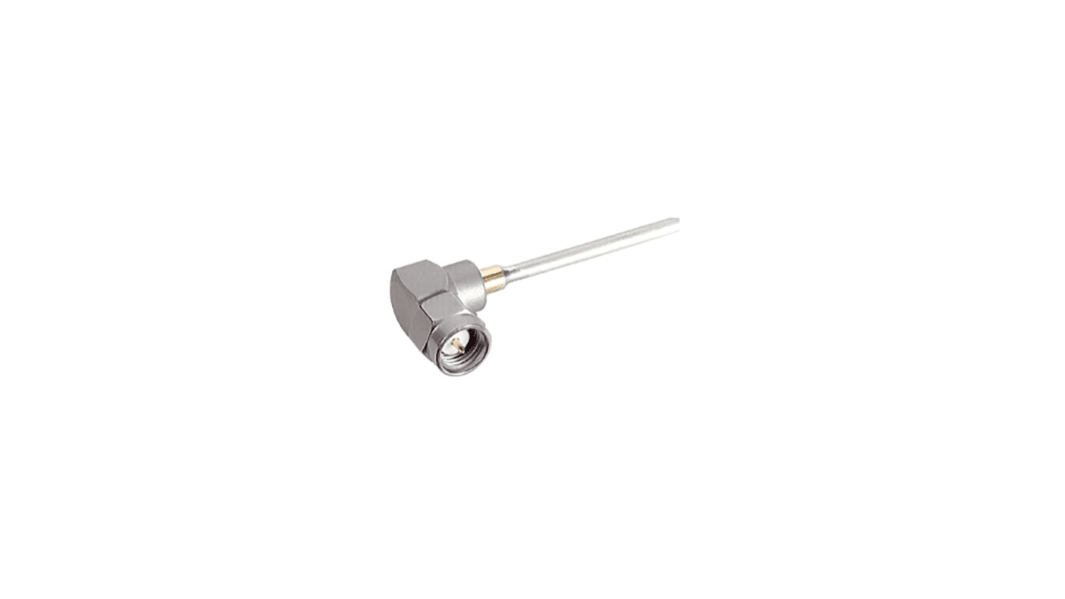

Huber+Suhner 16_SMA-50-2-100/199_NH Series Cable Male SMA, 50 Ω, Right Angle Body Solder
- RS Stock No.:
- 205-9198
- Distrelec Article No.:
- 302-42-986
- Mfr. Part No.:
- 16_SMA-50-2-100/199_NH
- Brand:
- Huber+Suhner
Bulk discount available
Subtotal (1 unit)*
Kr. 447,08
(exc. VAT)
Kr. 558,85
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 51 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 447,08 |
| 10 - 24 | Kr. 408,18 |
| 25 - 49 | Kr. 375,58 |
| 50 + | Kr. 348,00 |
*price indicative
- RS Stock No.:
- 205-9198
- Distrelec Article No.:
- 302-42-986
- Mfr. Part No.:
- 16_SMA-50-2-100/199_NH
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Coaxial Connector Type | SMA | |
| Product Type | Coaxial Connector | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Orientation | Right Angle | |
| Connector Gender | Male | |
| Cable Type | Coaxial | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 26.5 GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Passivated | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 165°C | |
| Polarity | Normal | |
| Contact Gender | Male | |
| Series | 16_SMA-50-2-100/199_NH | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold Plating | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Coaxial Connector Type SMA | ||
Product Type Coaxial Connector | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Orientation Right Angle | ||
Connector Gender Male | ||
Cable Type Coaxial | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 26.5 GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Passivated | ||
Termination Type Solder | ||
Maximum Operating Temperature 165°C | ||
Polarity Normal | ||
Contact Gender Male | ||
Series 16_SMA-50-2-100/199_NH | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold Plating | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 26.5 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 26.5 GHz
Centre contact plugged
Outer contact soldered
Weight 0.0056 kg
Operating temperature -65 °C to 165 °C
