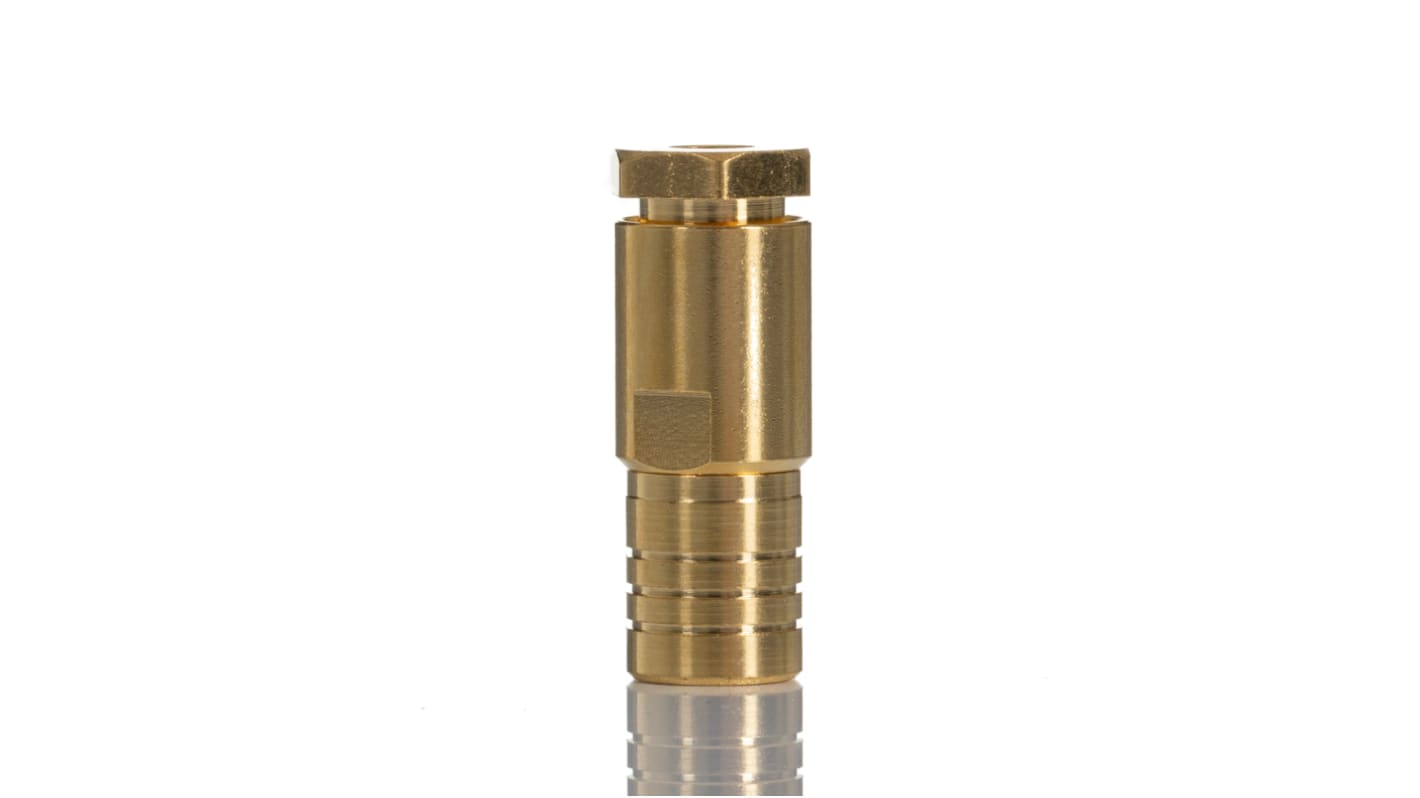

RS PRO SMB Series Cable Female SMB, 50 Ω, Straight Body Clamp
- RS Stock No.:
- 246-9419
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
Kr. 70,58
(exc. VAT)
Kr. 88,22
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 859 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 70,58 |
| 5 - 9 | Kr. 68,30 |
| 10 - 24 | Kr. 65,67 |
| 25 + | Kr. 62,23 |
*price indicative
- RS Stock No.:
- 246-9419
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | SMB | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Cable Type | RG174A/U | |
| Operating Frequency | 4 GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -45°C | |
| Termination Type | Clamp | |
| Maximum Operating Temperature | 125°C | |
| Series | SMB | |
| Contact Gender | Female | |
| Contact Material | Copper | |
| Standards/Approvals | RoHS | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type SMB | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Straight | ||
Cable Type RG174A/U | ||
Operating Frequency 4 GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -45°C | ||
Termination Type Clamp | ||
Maximum Operating Temperature 125°C | ||
Series SMB | ||
Contact Gender Female | ||
Contact Material Copper | ||
Standards/Approvals RoHS | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN
RS PRO Straight Angle Cable Mount SMB Connector Jack, RG174 A/U
A straight angle cable mount SMB (subminiature version B) connector designed for use RG174A/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF). The RS PRO SMB connector features an 4GHz frequency range and with its flange mount design with remain level on the PCB after soldering.
Sub miniature B connectors all feature a snap on coupling for quick and easy and quick connection and disconnection of coax cables.
The RS PRO SMB connector includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Features and Benefits
Approvals and Standards: CE, ROHS
