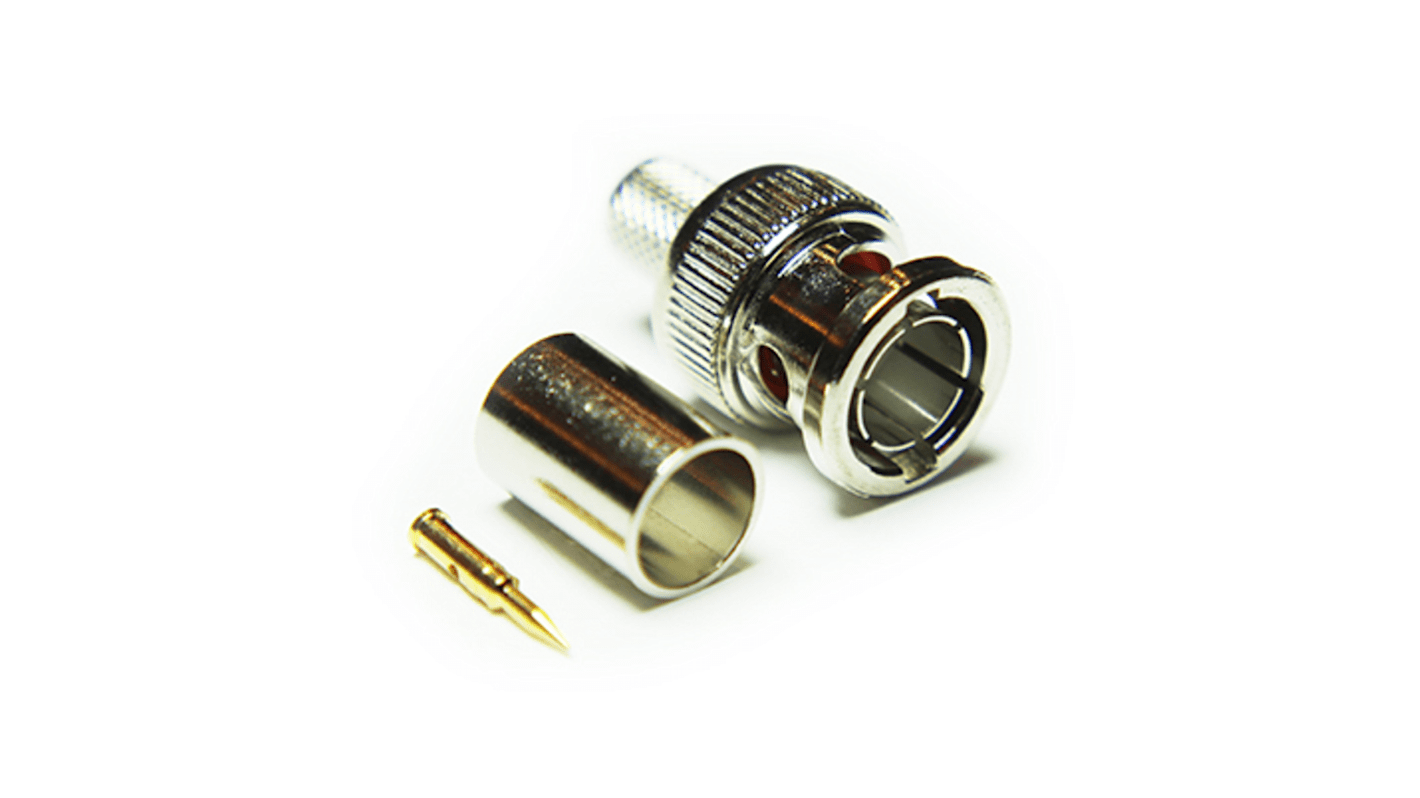

RS PRO, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body

Featuring a bayonet fitting requiring a quarter turn to lock into a BNC socket. Termination is simple with a straight crimp and the coaxial connector is suitable for up to 500 mating cycles.

Constructed from hardwearing Brass with a Nickel plating with Gold plated contacts the BNC coax plug is wear resistance and protected against repeated insertions and disconnections. The IP64 rating protecting against accidentally water splashes and dirt combined with the operating temperature of -30 to +70°C makes the BNC plug ideal for use in a wide range of applications.

The BNC coax plug features annealed contacts and crimp sleeves and is suitable for use in broadcasting, instrumentation and security applications along with use in the military and aerospace industries.

Suitable for RG6 and CT100 cable

Crimp termination

75 Ω impedance

Annealed contact and crimp sleeve

Nickel plated Brass

Gold plated contact

Delrin insulation

IP64 protected

500 mating cycles

Full detent

Dimensions 29 x 14.4mm
