RS PRO BNC Series Cable Male BNC, 75 Ω, Straight Body Crimp

View all Coaxial Connectors
Bulk discount available

Subtotal (1 box of 100 units)*

Kr. 2 893,40

(exc. VAT)

Kr. 3 616,80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 300 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
100 - 100Kr. 28,934Kr. 2 893,40
200 +Kr. 27,487Kr. 2 748,70

*price indicative

RS Stock No.:
546-3658
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Coaxial Connector

Coaxial Connector Type

BNC

Mount Type

Cable

Impedance

75Ω

Connector Gender

Male

Orientation

Straight

Cable Type

PSF 1/3

Size

Standard

Bulkhead

No

Operating Frequency

1 GHz

Minimum Operating Temperature

-65°C

Body Plating

Nickel

Maximum Operating Temperature

85°C

Termination Type

Crimp

Polarity

Normal

Contact Gender

Male

Series

BNC

Contact Material

Brass

Standards/Approvals

No

Contact Plating

Gold

COO (Country of Origin):
TW

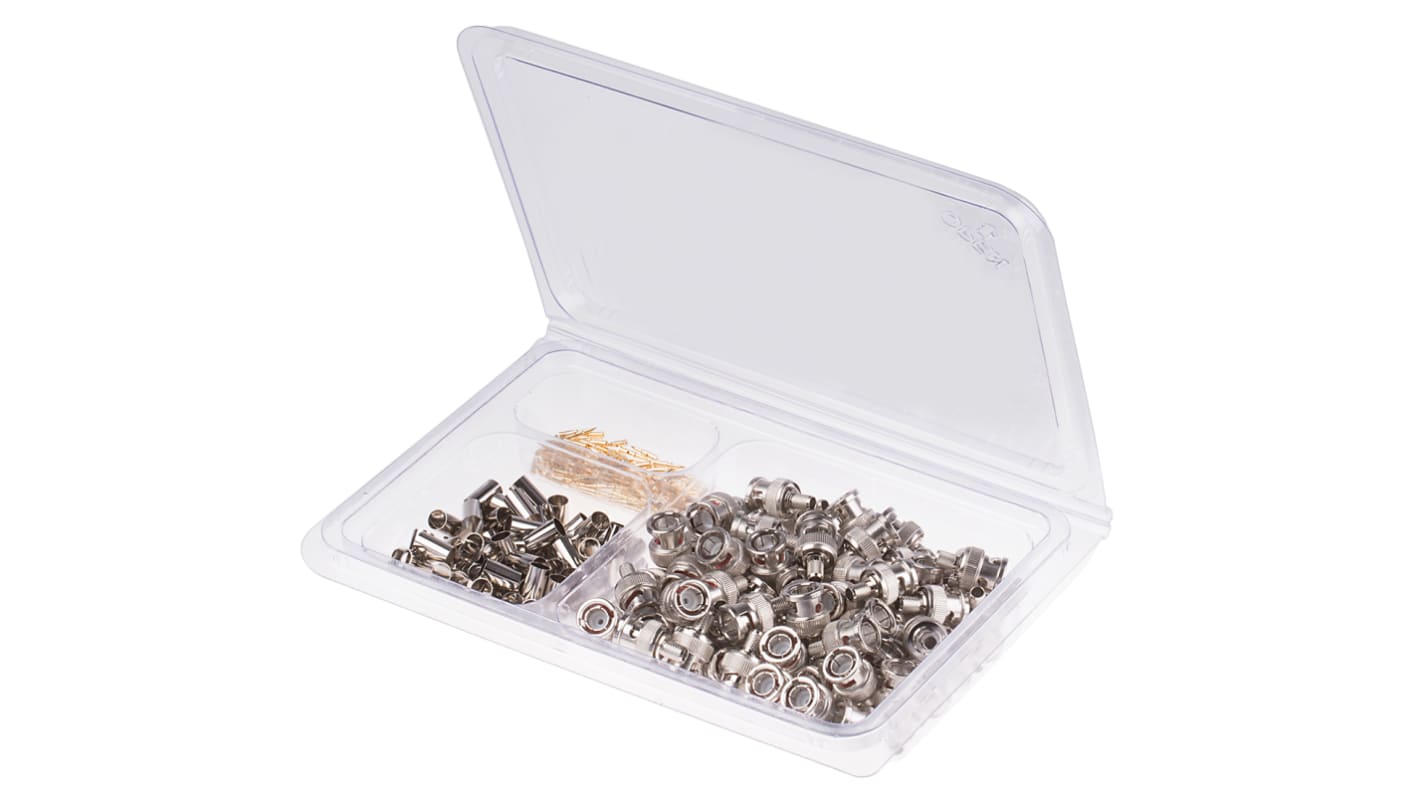

RS PRO 75 Ω BNC Crimp Connector Bulk Kit (100 Pieces)


From RS PRO, these BNC coaxial connectors are designed for use with PSF 1/3 coaxial cables, and feature an easy-to-terminate cable crimp design.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC plug kit

• Nickel plated body provides a heavy-duty build quality

• Gold plated contacts ensure maximum efficiency

• Crimp termination method

• 75 Ω impedance

• Operating frequency of 4GhZ

• Insulation material: PTFE

• Normal polarity

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection

• Cable Modems

• Telecom

• Medical Equipment

• Satcom

• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC is crimp termination, meaning it can be attached by using a crimping tool to compress the connector crimping ferrule onto an appropriate cable.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A
