Huber+Suhner QMA Series Cable Male QMA, 50 Ω, Straight Body Crimp
- RS Stock No.:
- 612-7044
- Distrelec Article No.:
- 302-15-083
- Mfr. Part No.:
- 11_QMA-50-3-1/133_NE
- Brand:
- Huber+Suhner
Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 296,07
(exc. VAT)
Kr. 370,09
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 41 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | Kr. 296,07 |
| 15 - 49 | Kr. 283,37 |
| 50 - 99 | Kr. 244,93 |
| 100 - 249 | Kr. 238,30 |
| 250 + | Kr. 212,90 |
*price indicative
- RS Stock No.:
- 612-7044
- Distrelec Article No.:
- 302-15-083
- Mfr. Part No.:
- 11_QMA-50-3-1/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Coaxial Connector Type | QMA | |
| Product Type | Coaxial Connector | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Orientation | Straight | |
| Connector Gender | Male | |
| Cable Type | RG400/U | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 11GHz | |
| Minimum Operating Temperature | -40°C | |
| Body Plating | Copper | |
| Maximum Operating Temperature | 85°C | |
| Polarity | Normal | |
| Termination Type | Crimp | |
| Series | QMA | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Coaxial Connector Type QMA | ||
Product Type Coaxial Connector | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Orientation Straight | ||
Connector Gender Male | ||
Cable Type RG400/U | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 11GHz | ||
Minimum Operating Temperature -40°C | ||
Body Plating Copper | ||
Maximum Operating Temperature 85°C | ||
Polarity Normal | ||
Termination Type Crimp | ||
Series QMA | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Contact Material Brass | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CH

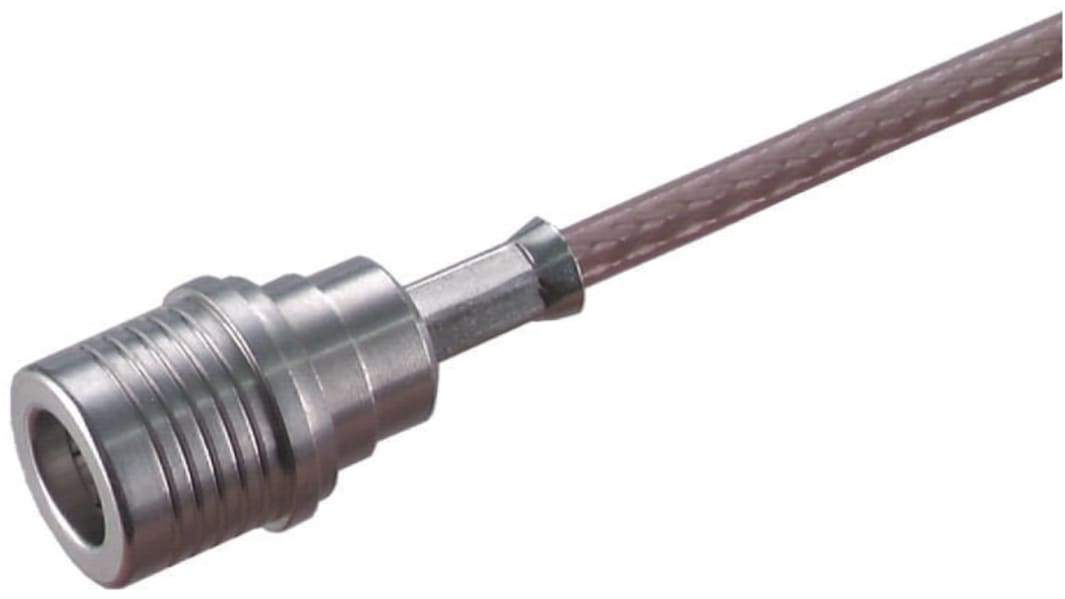

Straight Cable Plug
HUBER+SUHNER QMA
The interface is based on the SMA dimensions, but instead of a threaded coupling mechanism, a new snap-lock mechanism is used.The QMA interface has a very similar performance to the SMA, but in addition it offers an easier, faster and safer coupling operation, resulting in significant time saving during the production of systems. The packaging density of QMA is increased compared to SMA connectors as no torque spanner is required to fasten the coupling nut.
Free-rotating connection when mated
SNAP-ON mating
