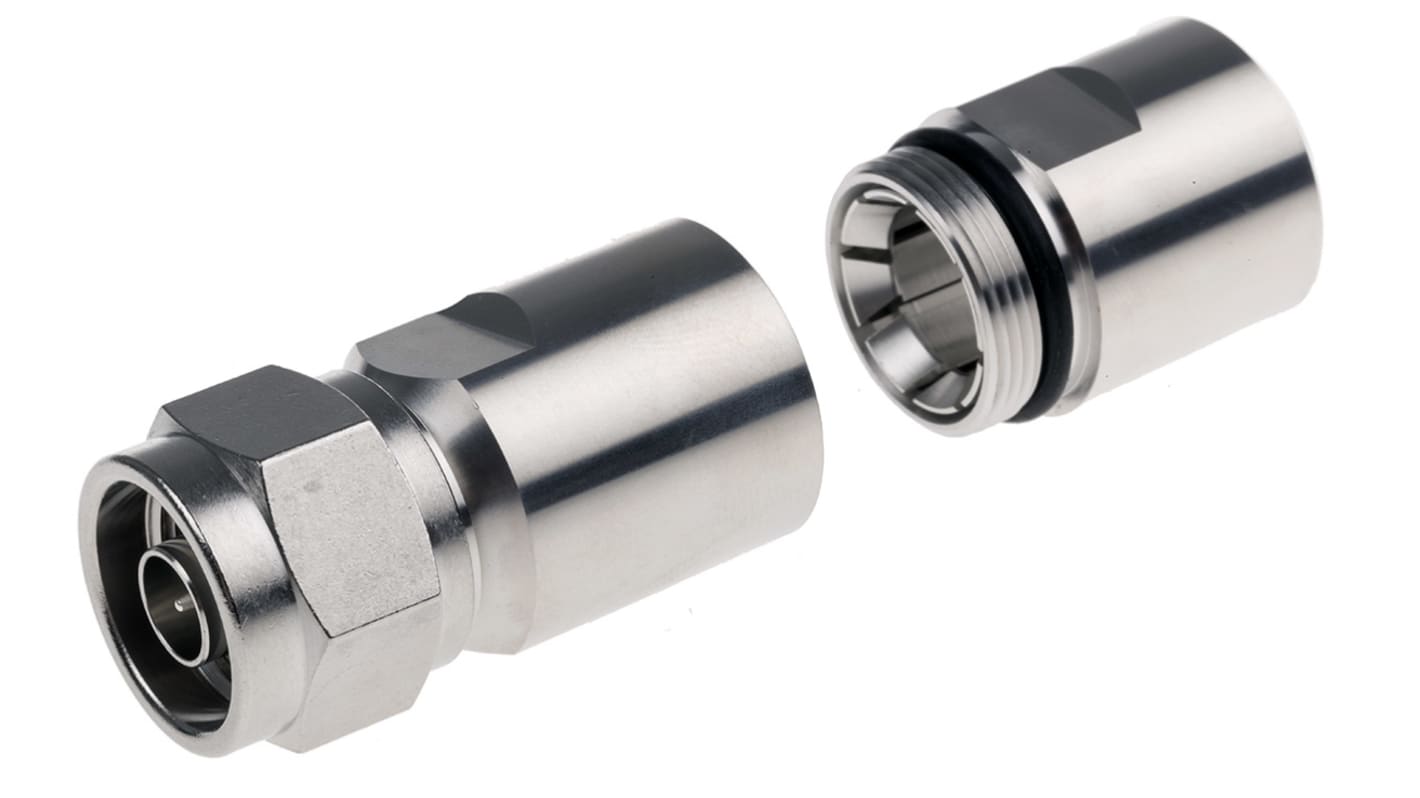

RS PRO, Plug Cable Mount N Connector, 50Ω, Clamp Termination, Straight Body

N series straight coaxial connectors designed for use from DC to 6-11 GHz (item specific), medium size with a threaded coupling. These N series connectors feature a low broadband VSWR which is ideal for use in aerospace , broadcast , audio and video applications as well as many microwave components such as filters, couplers, amplifiers and attenuators. These N series connectors are also impedance matched to 50Ω cables and the threaded coupling provides reliable mating in applications where vibration and shock resistance are design considerations.

Nominal impedance 50Ω
Low broadband VSWR
Vibration proof coupling

Item 750-8576 is IEC 169-4 rated only. For suitable crimp tool see 683-1623 .

MIL-STD-348A
