Neutrik BNC Series, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 909-3682
- Mfr. Part No.:
- RSNBTC75BFI4
- Brand:
- Neutrik
13 In stock for same day dispatch
Added
Price Each
Kr. 56,09
(exc. VAT)
Kr. 70,11
(inc. VAT)
| Units | Per unit |
| 1 - 9 | Kr. 56,09 |
| 10 - 49 | Kr. 50,44 |
| 50 + | Kr. 48,55 |
- RS Stock No.:
- 909-3682
- Mfr. Part No.:
- RSNBTC75BFI4
- Brand:
- Neutrik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details

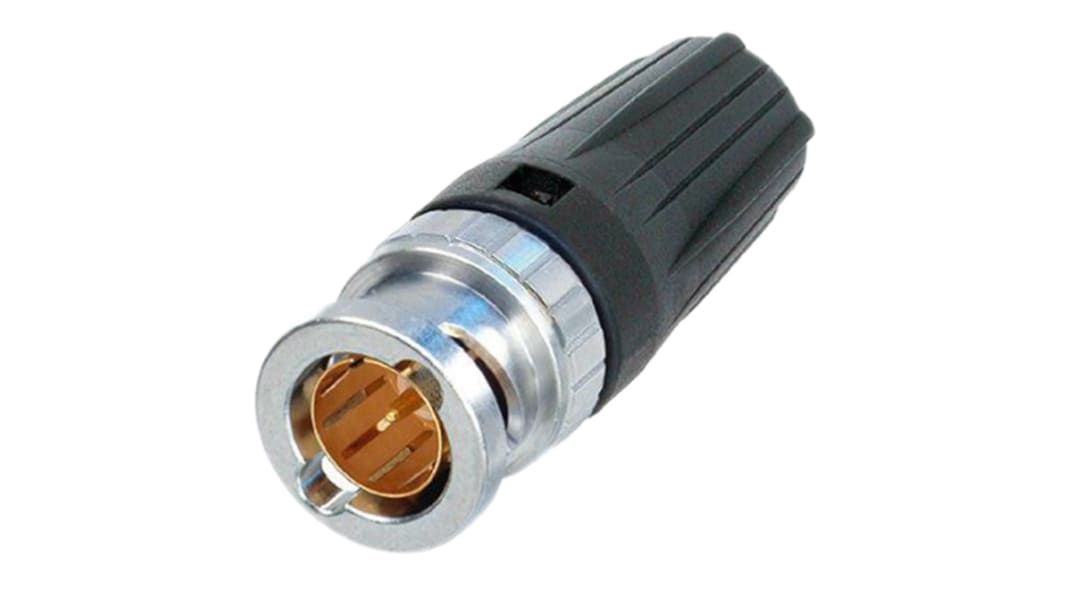

Neutrik rearTWIST HD Tiny BNC Connectors
From Neutrik, this Tiny BNC Cable Connector is designed for use with tiny or multicore cables, with an additional leading ferrule to ease the assembly of smaller cable diameters. The connector also features a unique rearTWIST cable boot for easy and assured locking and unlocking. The BNC connector has true 75 Ohm design, and so meets HD requirements.
With machined brass parts and a snug-fit centre pin, this connector is extremely durable and boast a lifetime of 1000 mating cycles.
With machined brass parts and a snug-fit centre pin, this connector is extremely durable and boast a lifetime of 1000 mating cycles.
• Optimized for Tiny or multicore cables
• RearTWIST Soft-touch cable boot
• Durable design ensures 1000 mating cycles
• 75Ω design suitable for HD requirements
• Pin Crimp Size: 1.6mm²
• Shield Crimp Size: 4.06mm
• RearTWIST Soft-touch cable boot
• Durable design ensures 1000 mating cycles
• 75Ω design suitable for HD requirements
• Pin Crimp Size: 1.6mm²
• Shield Crimp Size: 4.06mm
Neutrik BNC Connectors
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Coaxial Connector Type | BNC Connector |
| Mounting Type | Cable Mount |
| Impedance | 75Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Size | Standard |
| Bulkhead | No |
| Body Plating | Optalloy |
| Series | BNC |
| Contact Material | Brass, Gold Cobalt (Center Contact) |
| Contact Plating | Gold |
