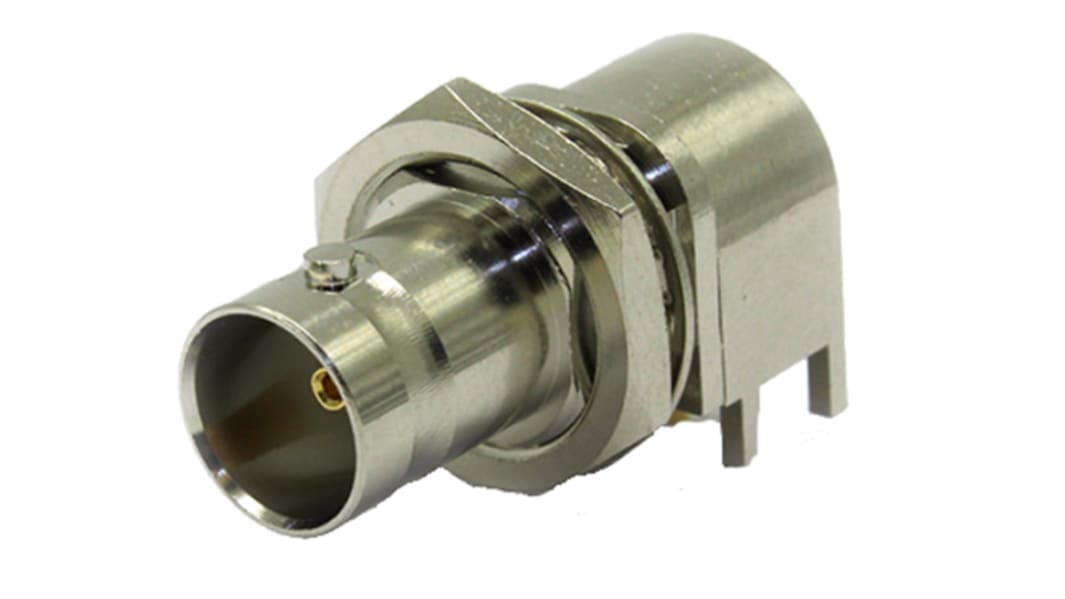

COAX Connectors, jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body

RS Stock No.:: 916-0631
Mfr. Part No.:: 10-470-B36
Brand:: COAX Connectors

COAX Connectors, jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body

13 In stock for same day dispatch

Added

Price Each

Kr. 85,36

(exc. VAT)

Kr. 106,70

(inc. VAT)

Units	Per unit
1 - 4	Kr. 85,36
5 - 9	Kr. 80,30
10 - 24	Kr. 76,89
25 - 49	Kr. 73,48
50 +	Kr. 68,31

RS Stock No.:: 916-0631
Mfr. Part No.:: 10-470-B36
Brand:: COAX Connectors

Technical Reference

BNC R/A PCB jack data sheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

BNC PCB Mount Jacks

A series of 75 Ω professional quality machined PCB mount jacks, from Coax Connectors. These BNC connectors have nickel plated brass bodies and gold plated centre contacts. The solder BNC connectors feature a simple bayonet coupling which requires only a quarter turn to connect and disconnect for quick and easy termination. This comprehensive range is available in different body styles and mounting heights. The BNC connectors would be typically used in the broadcast market and have been tested to meet SMPTE 292M and 424M standards.
Part number 916-0631 right angled bulkhead jack
Part number 916-0643 vertical mount jack
Part number 916-0653 straight jack 3 legs
Part number 916-0662 vertical mount jack legs rotated 45°
Part number 916-0640 straight jack 4 legs
Part number 916-0659 right angled bulkhead jack surface mount centre contact

Coax Connectors BNC Series

Specifications

Attribute	Value
Gender	Female
Coaxial Connector Type	BNC Connector
Mounting Type	PCB Mount
Impedance	75Ω
Termination Method	Through Hole
Body Orientation	Right Angle
Size	Standard
Bulkhead	Yes
Operating Frequency	0 to 3GHz
Body Plating	Nickel
Contact Material	Phosphor Bronze
Contact Plating	Gold

RS Stock No.:: 916-0631
Mfr. Part No.:: 10-470-B36
Brand:: COAX Connectors

BNC R/A PCB jack data sheet
