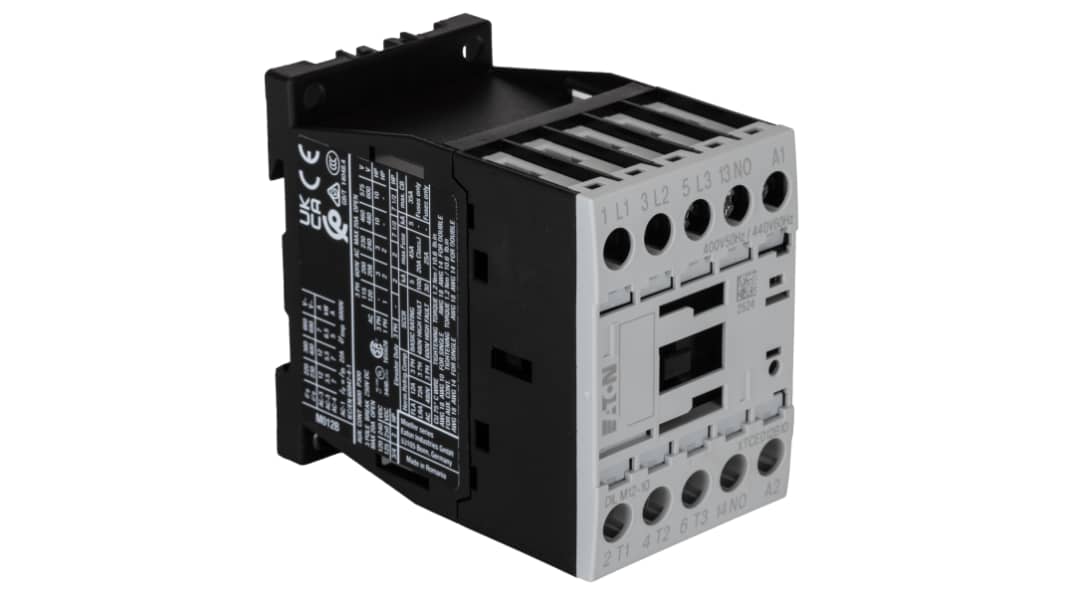

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 12 A, 5.5 kW 400V ac, 3 NO, 400V ac

RS Stock No.:: 493-0135
Mfr. Part No.:: 276832 DILM12-10(400V50HZ,440V60HZ)
Brand:: Eaton

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 12 A, 5.5 kW 400V ac, 3 NO, 400V ac

Subtotal (1 unit)*

Kr. 631,22

(exc. VAT)

Kr. 789,02

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	Kr. 631,22

*price indicative

RS Stock No.:: 493-0135
Mfr. Part No.:: 276832 DILM12-10(400V50HZ,440V60HZ)
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Contactor
	Coil Voltage	400V ac
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	12A
	Series	DILM
	Power Rating	5.5kW
	Mount Type	Screw
	Function	Motor Control, Resistive Load
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NO
	Number of Auxiliary Contacts	1
	Terminal Type	Screw
	Control Circuit Voltage Uc	400V ac
	Contactor Application	Motor Control, Resistive Load
	Minimum Operating Temperature	-25°C
	Operational Current Ie	12A
	Maximum Operating Temperature	60°C
	Depth	126mm
	Length	68mm
	Standards/Approvals	IEC/EN 60947, CSA, UL, VDE 0660
	Width	45mm
	Pole and Throw Configuration	3P

	Select all
	Brand Eaton
	Product Type Contactor
	Coil Voltage 400V ac
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 12A
	Series DILM
	Power Rating 5.5kW
	Mount Type Screw
	Function Motor Control, Resistive Load
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NO
	Number of Auxiliary Contacts 1
	Terminal Type Screw
	Control Circuit Voltage Uc 400V ac
	Contactor Application Motor Control, Resistive Load
	Minimum Operating Temperature -25°C
	Operational Current Ie 12A
	Maximum Operating Temperature 60°C
	Depth 126mm
	Length 68mm
	Standards/Approvals IEC/EN 60947, CSA, UL, VDE 0660
	Width 45mm
	Pole and Throw Configuration 3P

Eaton Contactor, 12A Contact Current Rating, 5.5kW Power Rating - 276832 DILM12-10(400V50HZ,440V60HZ)

This contactor from Eaton is designed for controlling motors and electrical loads. It measures 75mm in length, 68mm in height, and 45mm in width, and supports a rated operational power of 5.5 kW. With a mechanical lifespan of 10,000,000 operations, it provides reliability over extended usage.

Features & Benefits

• Rated current of 12A accommodates various load types

• Voltage rating of 400V AC

• CE Marked and UL certified for quality assurance

• High-temperature operation up to 60°C ensures reliability

Applications

• Suitable for industrial motor control systems

• Used for switching AC inductive loads

• Ideal for automation and process control systems

• Employed in HVAC systems

• Utilised in safety circuits requiring dependable performance

Will it work with auxiliary contacts?

Yes, it includes one auxiliary contact option.

Can it be connected using screw terminals?

Yes, it has screw terminals for easy wiring connections.

Is it suitable for motors with efficiency class IE3?

Yes, it is suitable for motors with efficiency class IE3.

Note

Eaton formerly known as Moeller
