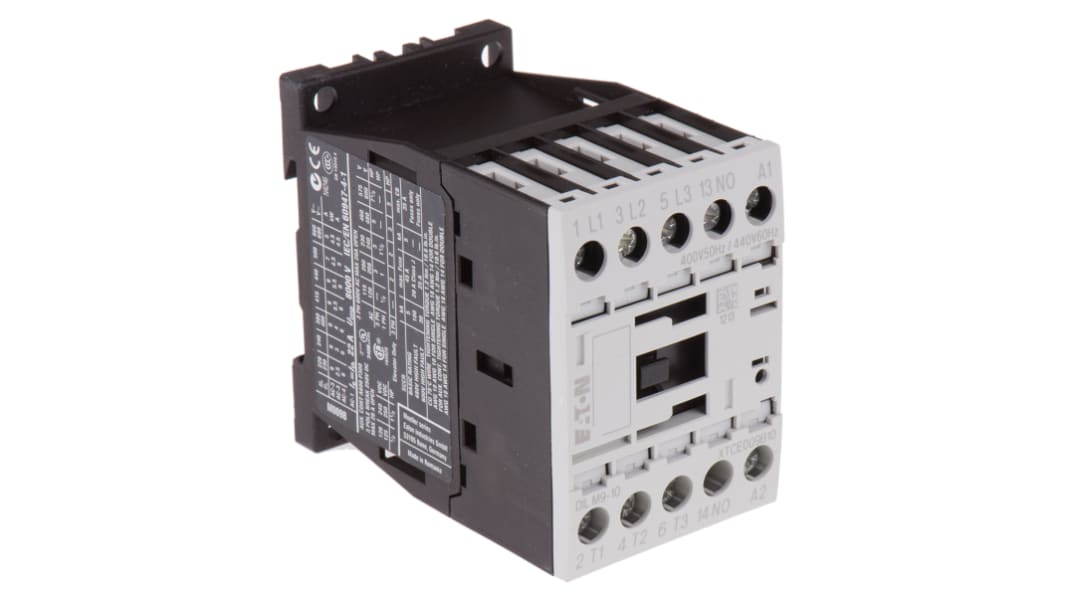

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 9 A, 4 kW 400V ac, 3 NO, 400V ac

RS Stock No.:: 493-0056
Mfr. Part No.:: 276692 DILM9-10(400V50HZ,440V60HZ)
Brand:: Eaton

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 9 A, 4 kW 400V ac, 3 NO, 400V ac

Subtotal (1 unit)*

Kr. 512,67

(exc. VAT)

Kr. 640,84

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

5 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 512,67

*price indicative

RS Stock No.:: 493-0056
Mfr. Part No.:: 276692 DILM9-10(400V50HZ,440V60HZ)
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Contactor
	Coil Voltage	400V ac
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	9A
	Power Rating	4kW
	Series	DILM
	Mount Type	Screw
	Function	Motor Control, Resistive Load
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NO
	Number of Auxiliary Contacts	1
	Terminal Type	Screw
	Contactor Application	Motor Control, Resistive Load
	Minimum Operating Temperature	-25°C
	Control Circuit Voltage Uc	400V ac
	Operational Current Ie	9A
	Maximum Operating Temperature	60°C
	Length	68mm
	Width	45mm
	Standards/Approvals	CSA, IEC/EN 60947, UL, VDE 0660
	Depth	75mm
	Pole and Throw Configuration	3P

	Select all
	Brand Eaton
	Product Type Contactor
	Coil Voltage 400V ac
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 9A
	Power Rating 4kW
	Series DILM
	Mount Type Screw
	Function Motor Control, Resistive Load
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NO
	Number of Auxiliary Contacts 1
	Terminal Type Screw
	Contactor Application Motor Control, Resistive Load
	Minimum Operating Temperature -25°C
	Control Circuit Voltage Uc 400V ac
	Operational Current Ie 9A
	Maximum Operating Temperature 60°C
	Length 68mm
	Width 45mm
	Standards/Approvals CSA, IEC/EN 60947, UL, VDE 0660
	Depth 75mm
	Pole and Throw Configuration 3P

Eaton Contactor, 9A Contact Current Rating, 4kW Power Rating - 276692 DILM9-10(400V50HZ,440V60HZ)

This contactor is a vital component in various electrical systems, designed to operate at 400V AC. It measures 75x68x45mm and features screw terminals for efficient wiring. With a rated operational current of 9A, it is suited for industrial applications.

Features & Benefits

• 3-pole design enhances operational versatility

• Rated power of 4kW ensures compatibility with various motors

• Wide temperature range of -25°C to +60°C for diverse conditions

• Screw terminals provide secure and straightforward wiring

• Auxiliary contact facilitates additional control options

• Mechanical lifespan of 10 million operations ensures durability

Applications

• Used for controlling motors in industrial settings

• Ideal for automation tasks requiring reliable switching

• Suitable for applications with high operational frequency

• Utilised in environments with varying temperature conditions

Will it provide protection against electric shock?

Yes, it features protection against direct contact when actuated.

Can the design withstand mechanical shocks?

Yes, it is designed for a shock resistance of 10g.

Note

Eaton formerly known as Moeller
