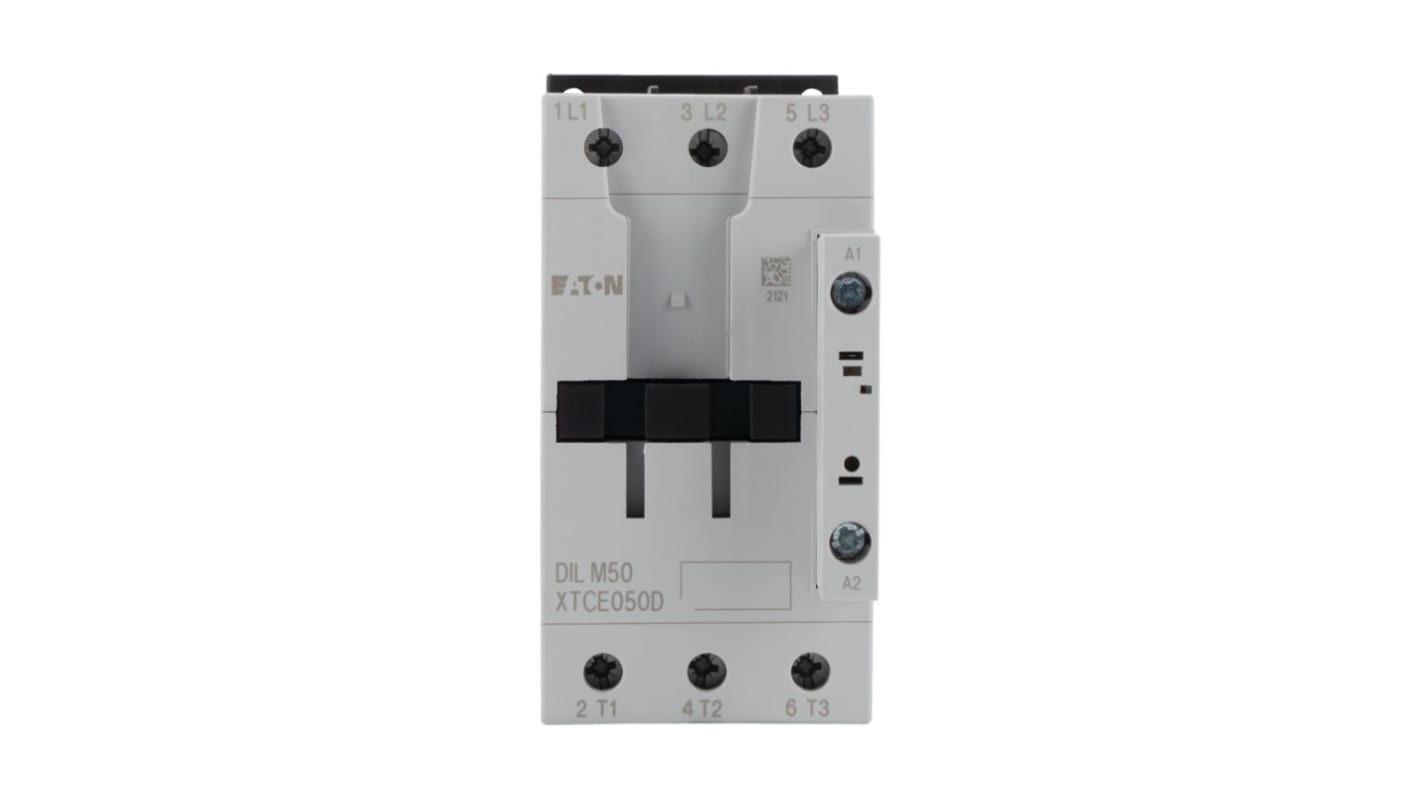

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 50 A, 22 kW 400V ac, 3 NO, 400V ac

RS Stock No.:: 513-0083
Mfr. Part No.:: 277832 DILM50(400V50HZ,440V60HZ)
Brand:: Eaton

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 50 A, 22 kW 400V ac, 3 NO, 400V ac

Subtotal (1 unit)*

Kr. 2 578,94

(exc. VAT)

Kr. 3 223,68

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

3 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 2 578,94

*price indicative

RS Stock No.:: 513-0083
Mfr. Part No.:: 277832 DILM50(400V50HZ,440V60HZ)
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Coil Voltage	400V ac
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	50A
	Power Rating	22kW
	Series	DILM
	Function	Motor Control, Resistive Load
	Mount Type	Surface
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NO
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Operational Current Ie	50A
	Contactor Application	Motor Control, Resistive Load
	Control Circuit Voltage Uc	400V ac
	Maximum Operating Temperature	60°C
	Depth	147mm
	Standards/Approvals	CSA, IEC/EN 60947, UL, VDE 0660
	Width	77mm
	Length	115mm
	Pole and Throw Configuration	3P

	Select all
	Brand Eaton
	Coil Voltage 400V ac
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 50A
	Power Rating 22kW
	Series DILM
	Function Motor Control, Resistive Load
	Mount Type Surface
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NO
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Operational Current Ie 50A
	Contactor Application Motor Control, Resistive Load
	Control Circuit Voltage Uc 400V ac
	Maximum Operating Temperature 60°C
	Depth 147mm
	Standards/Approvals CSA, IEC/EN 60947, UL, VDE 0660
	Width 77mm
	Length 115mm
	Pole and Throw Configuration 3P

Eaton Contactor, 50A Contact Current Rating, 22kW Power Rating - 277832 DILM50(400V50HZ,440V60HZ)

This Eaton contactor is designed for AC operation with a coil voltage of 400V AC and supports a power rating of 22kW. It features a 3-pole configuration and compact dimensions of 115mm in length, 77mm in width, and 147mm in depth, facilitating integration into various industrial systems.

Features & Benefits

• Handles up to 50A for safe current management

• 400V AC compatibility for versatile applications

• Screw terminal connections for secure wiring

• Mechanical lifespan of 10 million operations

• IP00 rating indicating basic environmental protection

Applications

• Motor control circuits

• Switching heavy inductive loads

• Reversing applications in machinery

• Motors requiring high efficiency

Can it operate under high temperatures?

Yes, it functions up to +60°C.

Will it withstand mechanical shocks?

It endures shocks up to 10g.

Is it compatible with various motor types?

Yes, it supports AC induction and efficiency class IE3 motors.

Note

Eaton formerly known as Moeller
