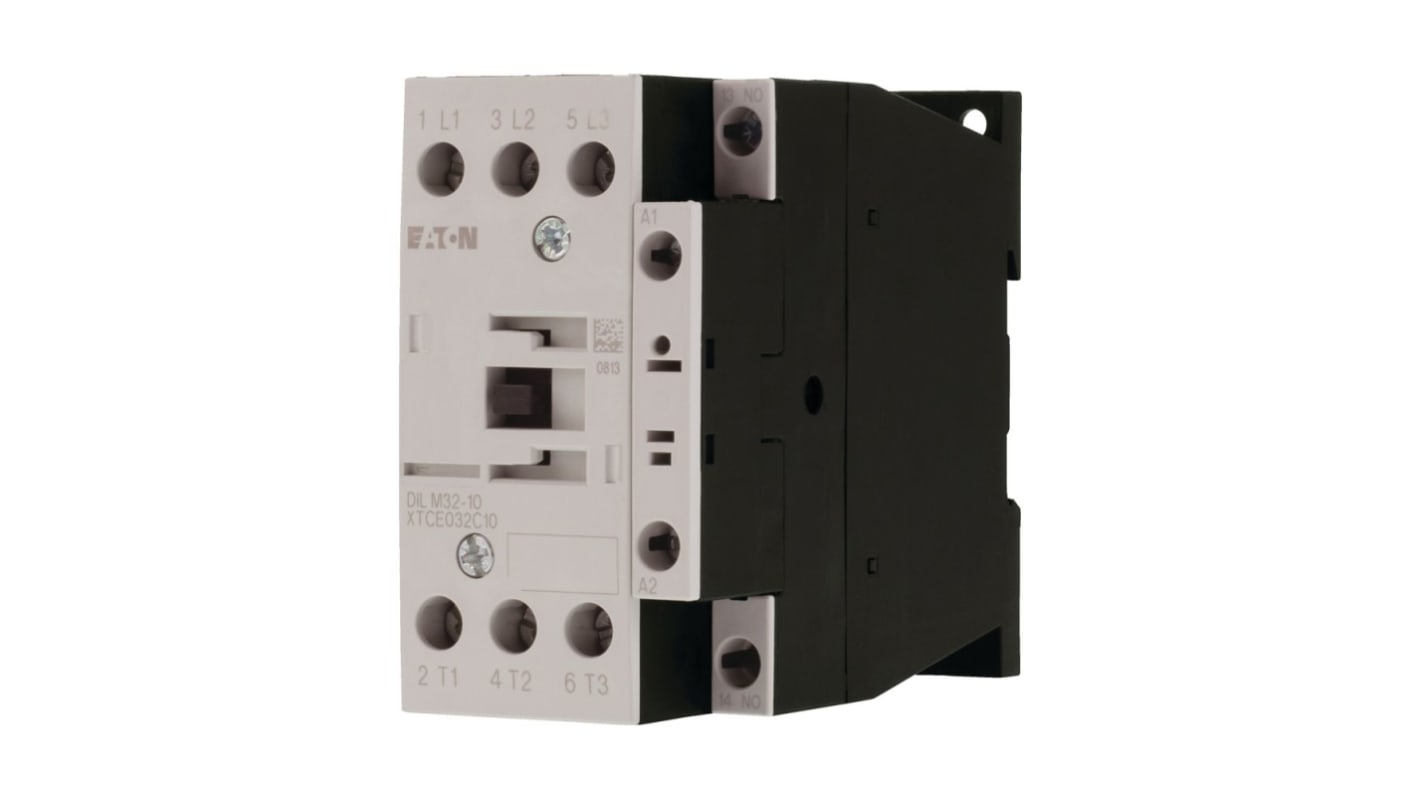

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 32 A, 15 kW 400V ac, 1 NO, 400V ac

RS Stock No.:: 493-0321
Mfr. Part No.:: 277262 DILM32-10(400V50HZ,440V60HZ)
Brand:: Eaton

Eaton DILM Contactor, 400V ac Coil, 3-Pole, 32 A, 15 kW 400V ac, 1 NO, 400V ac

Subtotal (1 unit)*

Kr. 1 705,43

(exc. VAT)

Kr. 2 131,79

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

5 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 705,43

*price indicative

RS Stock No.:: 493-0321
Mfr. Part No.:: 277262 DILM32-10(400V50HZ,440V60HZ)
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Contactor
	Coil Voltage	400V ac
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	32A
	Power Rating	15kW
	Series	DILM
	Mount Type	Screw
	Function	Motor Control, Resistive Load
	Normal State Configuration	1 NO
	Number of Auxiliary Contacts	1
	Auxiliary Contact Configuration	1 NO
	Terminal Type	Screw
	Contactor Application	Resistive Load, Motor Control
	Control Circuit Voltage Uc	400V ac
	Minimum Operating Temperature	-25°C
	Operational Current Ie	32A
	Maximum Operating Temperature	60°C
	Length	97mm
	Depth	97mm
	Width	45mm
	Standards/Approvals	UL, IEC/EN 60947, CSA, VDE 0660
	Pole and Throw Configuration	3P

	Select all
	Brand Eaton
	Product Type Contactor
	Coil Voltage 400V ac
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 32A
	Power Rating 15kW
	Series DILM
	Mount Type Screw
	Function Motor Control, Resistive Load
	Normal State Configuration 1 NO
	Number of Auxiliary Contacts 1
	Auxiliary Contact Configuration 1 NO
	Terminal Type Screw
	Contactor Application Resistive Load, Motor Control
	Control Circuit Voltage Uc 400V ac
	Minimum Operating Temperature -25°C
	Operational Current Ie 32A
	Maximum Operating Temperature 60°C
	Length 97mm
	Depth 97mm
	Width 45mm
	Standards/Approvals UL, IEC/EN 60947, CSA, VDE 0660
	Pole and Throw Configuration 3P

RoHS Status: Exempted

Eaton DILM Series Contactor, 400V AC Coil Voltage, 3NO Normal State Configuration - 277262 DILM32-10(400V50HZ,440V60HZ)

This contactor is essential for controlling electrical circuits in various automation and industrial settings. It operates efficiently at 400V AC, specifically designed for motor management, providing reliable performance. The versatility of this 3-pole contactor enables it to handle different loads while prioritising safety and efficiency.

Features & Benefits

• Suitable for AC operation with a coil voltage of 400V

• Handles current ratings up to 32A

• Equipped with screw terminals for secure electrical connections

• Provides a power rating of 15kW, ideal for motor control

• Compatible with efficiency class IE3 motors for energy savings

Applications

• Used in motor control for pumps and compressors

• Commonly found in automation systems for conveyor belts

• Suitable for lifts and escalators in commercial environments

• Employed in HVAC systems for precise control

• Ideal for drives in manufacturing and processing machinery

Can it be used for both 50Hz and 60Hz applications?

Yes, it is compatible with both 400V at 50Hz and 440V at 60Hz.

What is the maximum operating temperature for this device?

It can operate safely in temperatures up to +40°C.

How many auxiliary contacts can be added to it?

It accommodates one normally open auxiliary contact.

What types of loads can it handle?

It is suitable for non-inductive and slightly inductive loads.

How is it mounted?

The mounting position is flexible, allowing for various configurations.

Note

Eaton formerly known as Moeller
