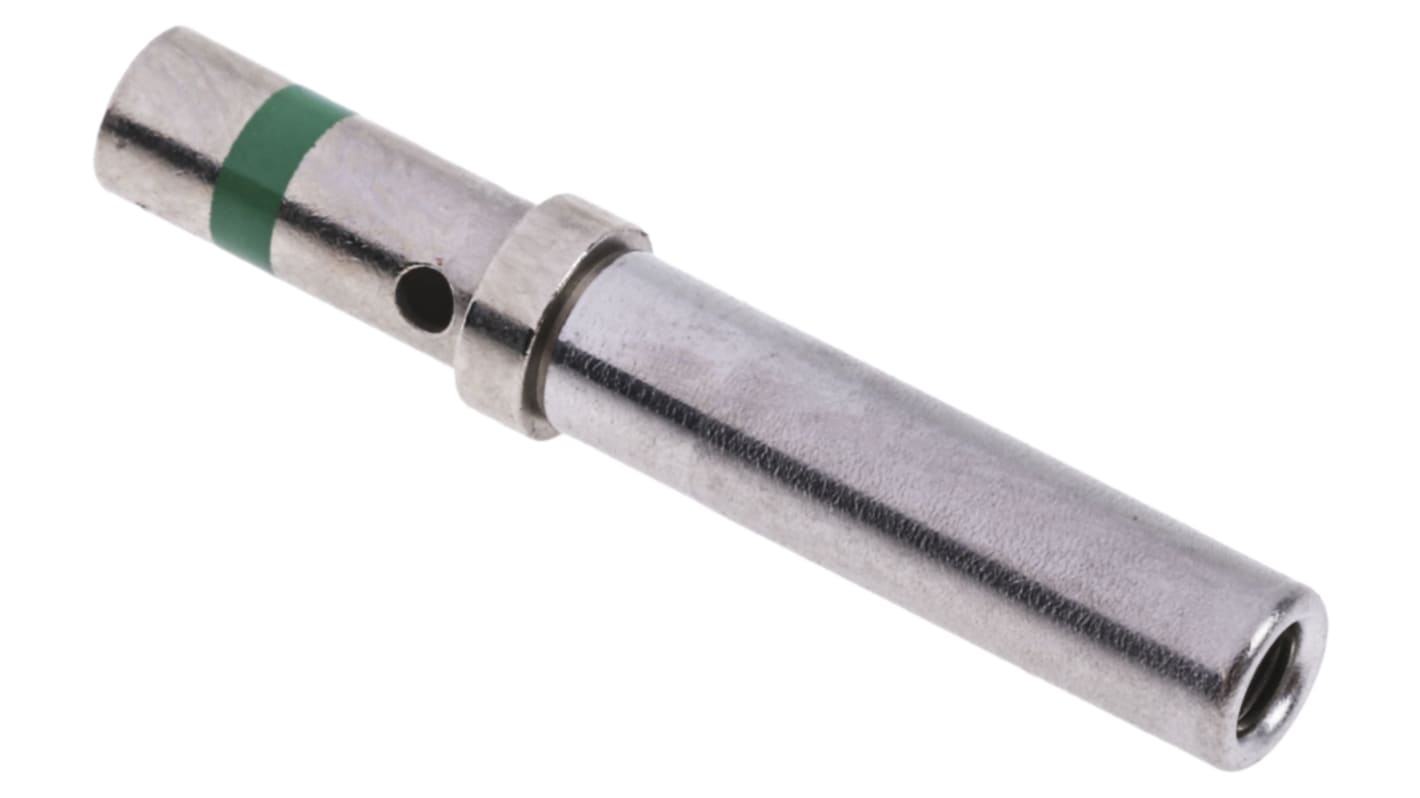

0462-209-16141 Deutsch 0462 Female Crimp Terminal Contact 14AWG

  • RS Stock No. 425-834
  • Mfr. Part No. 0462-209-16141
  • Brand Deutsch
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Crimp Contacts for DT and HD Series Sealed Connectors

From Deutsch, these high-quality circular crimp contacts are for use with DT and HD series sealed connectors. These connectors are environmentally sealed connectors that are designed for cable to cable applications within the automotive industry These solid contacts have a copper alloy body with nickel plating and a radial crimp type. The DT series crimp connectors are rugged quality but offer field-proven reliability.

Features & Benefits

Nickel plated copper crimp contact
Compatible with a wide range of Deutsch sealed connectors
Radial Crimp Type

V4 Contacts and Fillers

Specifications
Attribute Value
Gender Female
For Use With DT and HD Sealed Connector Housings
Series 0462
Maximum Wire Size mm² 2mm²
Termination Method Crimp
Contact Plating Nickel
Maximum Wire Size AWG 14AWG
Contact Material Copper Alloy
Maximum Contact Resistance 60mV
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
15890 In stock for delivery within 1 working days
Price Each (In a Bag of 10)
kr 6,786
(exc. VAT)
kr 8,482
(inc. VAT)
Units
Per unit
Per Bag*
10 - 140
kr 6,786
kr 67,86
150 - 490
kr 6,087
kr 60,87
500 - 990
kr 5,498
kr 54,98
1000 - 2490
kr 4,939
kr 49,39
2500 +
kr 4,451
kr 44,51
*price indicative
