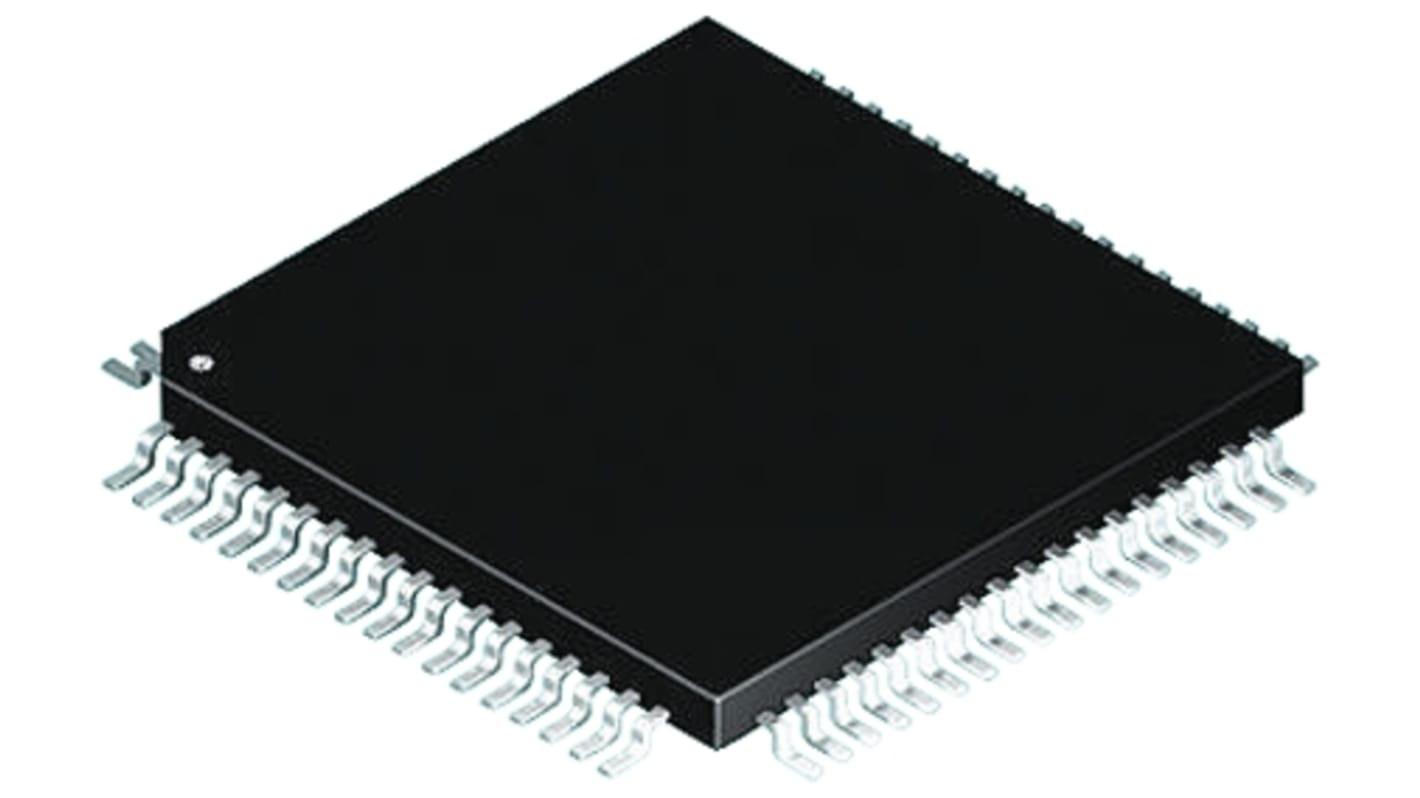

DSPIC30F6014-30I/PF Microchip, 16bit DSP 30MHz 144 kB Flash 80-Pin TQFP

  • RS Stock No. 823-7770
  • Mfr. Part No. DSPIC30F6014-30I/PF
  • Brand Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

dsPIC30F Digital Signal Controller

The dsPIC30F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The dsPIC30F is best suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate SMPS peripherals, motor control peripherals and a Codec interface that enable efficient digital power converters, advanced motor control algorithms and speech and audio applications. Small package DSCs with high performance ADC are well suited for smart sensing applications.

Specifications
Attribute Value
Maximum Frequency 30MHz
Data Bus Width 16bit
RAM Size 8.192 kB
Instruction Set Architecture RISC
Program Memory Size 144 kB
Program Memory Type Flash
Mounting Type Surface Mount
Package Type TQFP
Pin Count 80
Typical Operating Supply Voltage 2.5 → 5.5 V
Number of UART Channels 2
Pulse Width Modulation 8 x 16 bit
Length 14mm
Dimensions 14 x 14 x 1.05mm
Number of SPI Channels 2
PWM Resolution 16bit
Number of I2C Channels 1
Number of Timers 5
Minimum Operating Temperature -40 °C
Timers 5 x 16 bit
Timer Resolution 16bit
Number of PWM Units 8
ADCs 1 (16 x 12 bit)
Width 14mm
Number of ADC Units 1
Maximum Operating Temperature +85 °C
Height 1.05mm
Number of CAN Channels 2
ADC Channels 16
ADC Resolution 12bit
