HARWIN, H3153 PCB Socket, Rated At 2A
- RS Stock No.:
- 161-3675
- Mfr. Part No.:
- H3153-01
- Brand:
- HARWIN
Bulk discount available
Subtotal (1 pack of 25 units)*
Kr.85 425
(exc. VAT)
Kr.106 775
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 850 unit(s) ready to ship
- Plus 5 625 unit(s) shipping from 22. desember 2025
- Plus 750 unit(s) shipping from 23. desember 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | Kr. 3,417 | Kr. 85,43 |
| 100 - 225 | Kr. 2,819 | Kr. 70,48 |
| 250 - 475 | Kr. 2,682 | Kr. 67,05 |
| 500 - 975 | Kr. 2,53 | Kr. 63,25 |
| 1000 + | Kr. 2,206 | Kr. 55,15 |
*price indicative
- RS Stock No.:
- 161-3675
- Mfr. Part No.:
- H3153-01
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Gender | Female | |
| Series | H3153 | |
| Length | 3.61mm | |
| Number of Rows | 1 | |
| Body Orientation | Straight | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold, Gold over Nickel | |
| Current Rating | 2A | |
| Termination Method | Pin, Solder | |
| Housing Material | Brass | |
| Number of Contacts | 1 | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Gender Female | ||
Series H3153 | ||
Length 3.61mm | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold, Gold over Nickel | ||
Current Rating 2A | ||
Termination Method Pin, Solder | ||
Housing Material Brass | ||
Number of Contacts 1 | ||
- COO (Country of Origin):
- GB

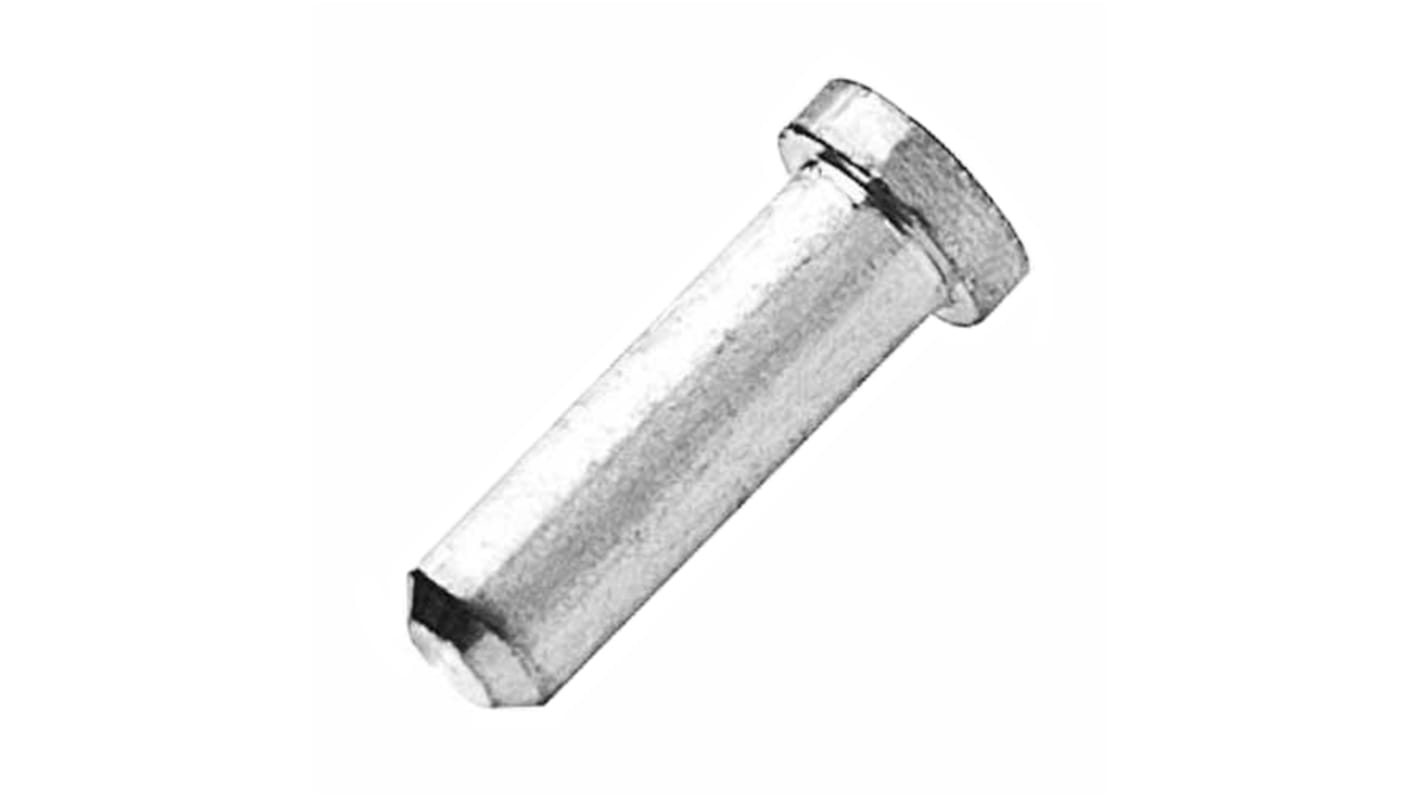

Sub-miniature PC Board Socket for mating Ø0.5mm Pin - Gold clip, Tin shell.
Uses 4-finger Beryllium Copper contact clip from Datamate - Vibration 10-2,000Hz, 10G, 6 hours.
Uses 4-finger Beryllium Copper contact clip from Datamate - Vibration 10-2,000Hz, 10G, 6 hours.
