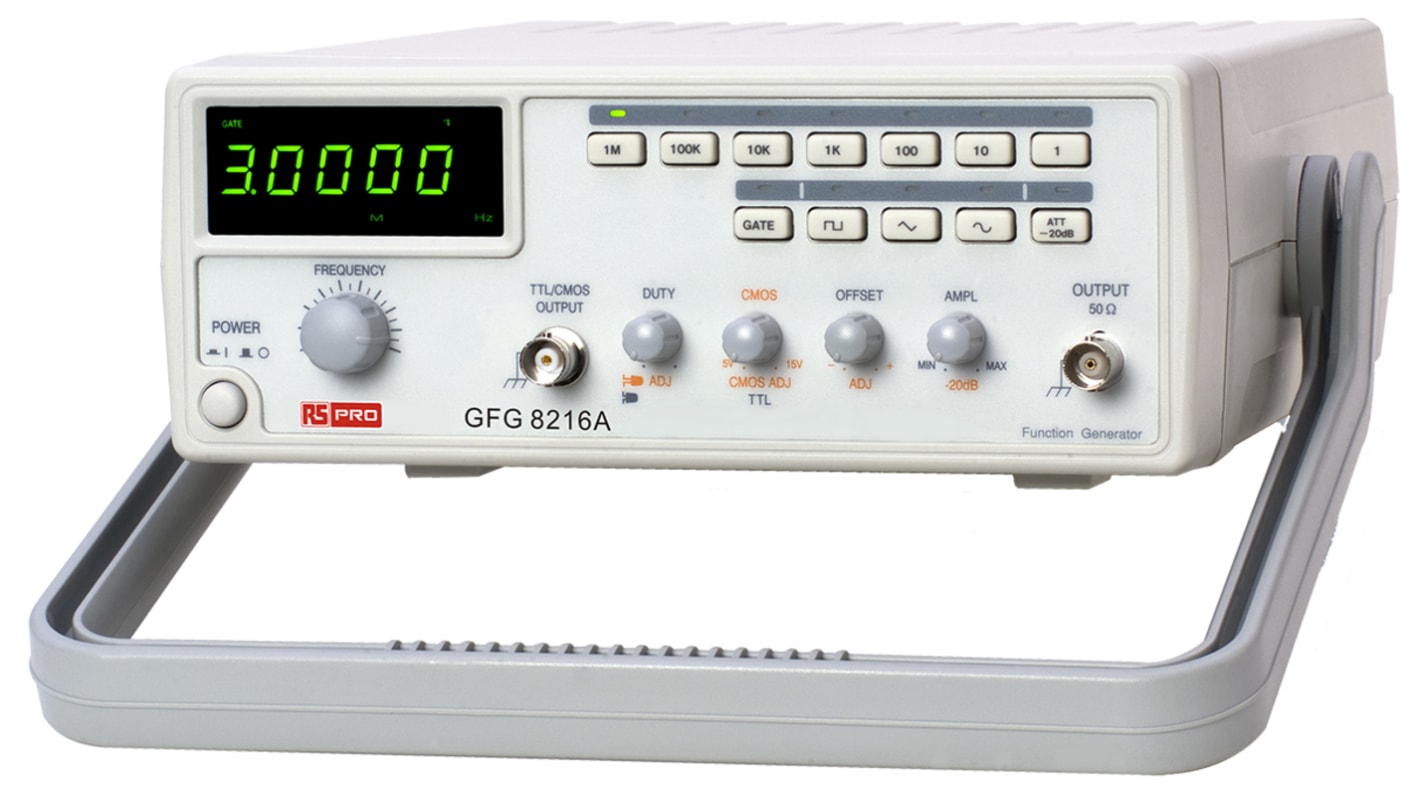

Name: RS PRO IFG8216A Function Counter, 0.3Hz Min, 3MHz Max, Variable Sweep - With RS Calibration
Brand: RS PRO
SKU: 123-3846
Price: 4050.18 NOK
Availability: Discontinued

RS PRO Function Generator

From RS PRO, comes a range of high quality and user-friendly function generators. Manufactured to industry standards, these function generators are stable, low-distortion instruments which generate signals in the frequency range up to 3 MHz and the counter can be switched to measure and display the frequency of an external signal up to 150 MHz

Features and benefits:

Waveforms-Sine, triangle, square, ramp, TTL, and CMOS output

Variable DC offset control

Built-in 6 Digits Counter with INT/EXT function up to 150MHz

0.3Hz ∼ 3MHz and 0.5Hz ∼ 5MHz frequency ranges available in this range of function generators

External voltage-controlled frequency (VCF) function

Duty Cycle Control with Signal Inversion Capability

Maximum Operating Temperature - +40 °C

Applications

Function generators have a range of application use such as;

Audio response testing

Vibration testing

Servo system evaluations

Ultrasound applications

What is a function generator?

Function generators are devices that produce various patterns of voltage at varieties of amplitudes and frequencies.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Supplied with

Instruction manual, test leads

Select all	Attribute	Value
	Brand	RS PRO
	Maximum Frequency Range Sinewave	3MHz
	Calibrated	RSCAL
	Maximum Frequency Range Square Pulse and Arbitrary Waveform	3MHz
	Minimum Frequency Range Sinewave	0.3Hz
	Variable Sweep	Yes
	Minimum Frequency Range Square Pulse and Arbitrary Waveform	0.3 Hz
	Time Base Accuracy	±10ppm
	Digital Frequency	Yes
	Maximum Frequency Range Triangle/Saw	3MHz
	Minimum Frequency Range Triangle/Saw	0.3Hz
	Length	251mm
	Attenuation	-20dB
	Internal Linear and Log Sweep	Yes
	CMOS Output Level	4 → 14.5V Pk-Pk
	Maximum Operating Temperature	+40°C
	Output Amplitude	>10V Pk-Pk
	Input Impedance	1 (Frequency Counter) MΩ, 1 (VCF) kΩ
	Minimum Operating Temperature	0°C
	Frequency Range Square Pulse and Arbitrary Waveform	0.3 Hz → 3 MHz
	Internal and External Amplitude Modulation	Yes
	Height	91mm
	Model Number	IFG8216A
	Dimensions	251 x 291 x 91mm
	Plug Type	UK
	Width	291mm
	TTL Output Level	≥3V Pk-Pk
	Weight	2.1kg
	Digital Amplitude and Offset	Yes

	Select all
	Brand RS PRO
	Maximum Frequency Range Sinewave 3MHz
	Calibrated RSCAL
	Maximum Frequency Range Square Pulse and Arbitrary Waveform 3MHz
	Minimum Frequency Range Sinewave 0.3Hz
	Variable Sweep Yes
	Minimum Frequency Range Square Pulse and Arbitrary Waveform 0.3 Hz
	Time Base Accuracy ±10ppm
	Digital Frequency Yes
	Maximum Frequency Range Triangle/Saw 3MHz
	Minimum Frequency Range Triangle/Saw 0.3Hz
	Length 251mm
	Attenuation -20dB
	Internal Linear and Log Sweep Yes
	CMOS Output Level 4 → 14.5V Pk-Pk
	Maximum Operating Temperature +40°C
	Output Amplitude >10V Pk-Pk
	Input Impedance 1 (Frequency Counter) MΩ, 1 (VCF) kΩ
	Minimum Operating Temperature 0°C
	Frequency Range Square Pulse and Arbitrary Waveform 0.3 Hz → 3 MHz
	Internal and External Amplitude Modulation Yes
	Height 91mm
	Model Number IFG8216A
	Dimensions 251 x 291 x 91mm
	Plug Type UK
	Width 291mm
	TTL Output Level ≥3V Pk-Pk
	Weight 2.1kg
	Digital Amplitude and Offset Yes

RS PRO IFG8216A Function Counter, 0.3Hz Min, 3MHz Max, Variable Sweep - With RS Calibration
