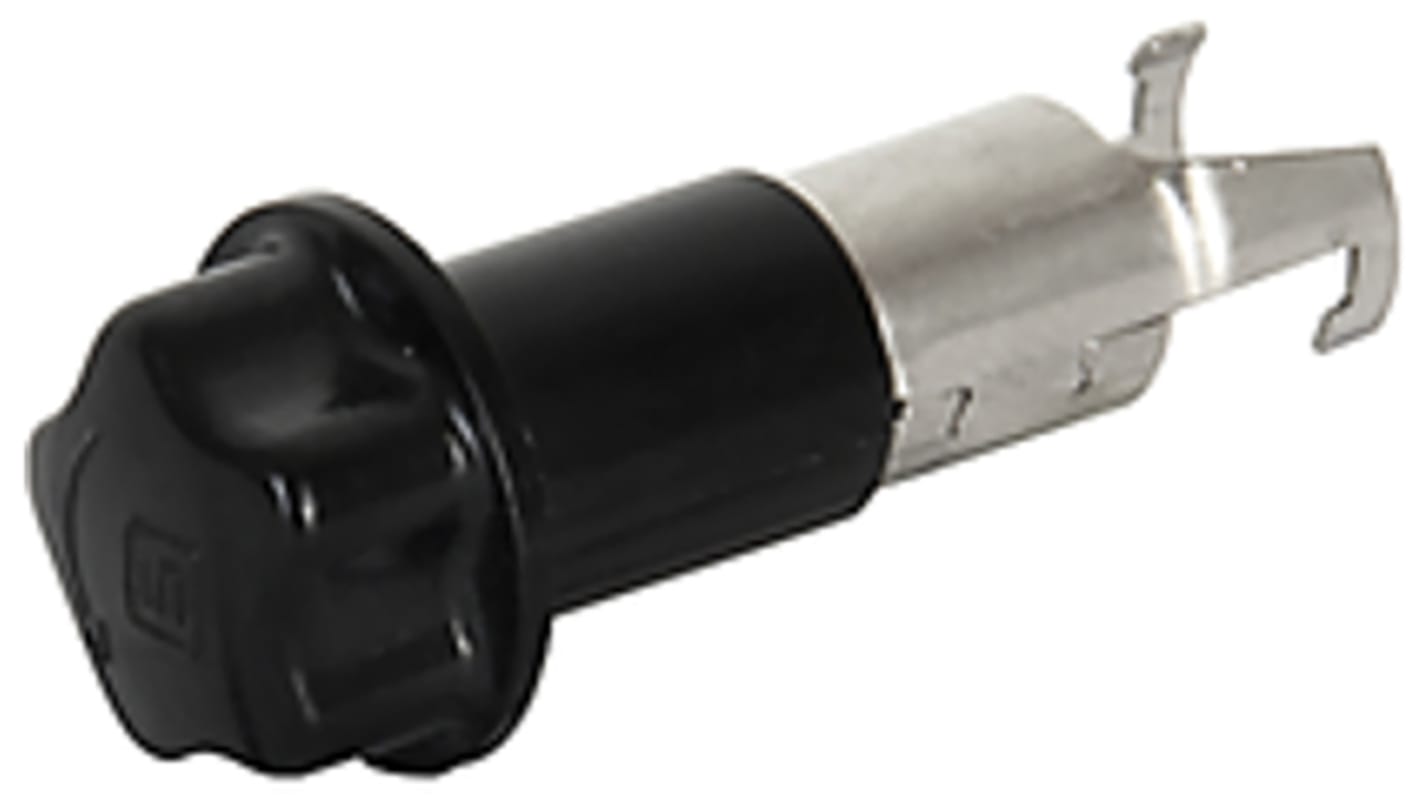

Schurter 10 A Panel Mount Fuse Holder, 1P-Pole for 6.3 x 32 mm, 250 V ac
- RS Stock No.:
- 866-3485
- Mfr. Part No.:
- 0031.1741
- Brand:
- Schurter
Bulk discount available
Subtotal (1 pack of 100 units)*
Kr. 3 090,20
(exc. VAT)
Kr. 3 862,80
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Temporarily out of stock
- Shipping from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | Kr. 30,902 | Kr. 3 090,20 |
| 200 - 400 | Kr. 30,037 | Kr. 3 003,70 |
| 500 + | Kr. 29,233 | Kr. 2 923,30 |
*price indicative
- RS Stock No.:
- 866-3485
- Mfr. Part No.:
- 0031.1741
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Product Type | Panel Mount Fuse Holder | |
| Current Rating | 10 A | |
| Voltage | 250 V ac | |
| Number of Poles | 1 | |
| Body Material | Thermoplastic, Black | |
| IP Rating | IP40 | |
| Compatible Fuse Size | 6.3 x 32 mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA C22.2 no. 39, IEC 60127-6, UL 512 | |
| Contact Material | Tin Plated Copper Alloy | |
| Cap Style | Manual | |
| Protection Category | PC2 | |
| Terminal Type | Solder | |
| Series | FEU | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Product Type Panel Mount Fuse Holder | ||
Current Rating 10 A | ||
Voltage 250 V ac | ||
Number of Poles 1 | ||
Body Material Thermoplastic, Black | ||
IP Rating IP40 | ||
Compatible Fuse Size 6.3 x 32 mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA C22.2 no. 39, IEC 60127-6, UL 512 | ||
Contact Material Tin Plated Copper Alloy | ||
Cap Style Manual | ||
Protection Category PC2 | ||
Terminal Type Solder | ||
Series FEU | ||
- COO (Country of Origin):
- CH
FEU fuse holder
Holder assemblies with protected contacts.
High-quality fuse carriers for 20 mm or 32 mm fuses, compliant with all handling safety specifications.
Spring bayonet system for fuse insertion and removal.
Soldered connection.
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
