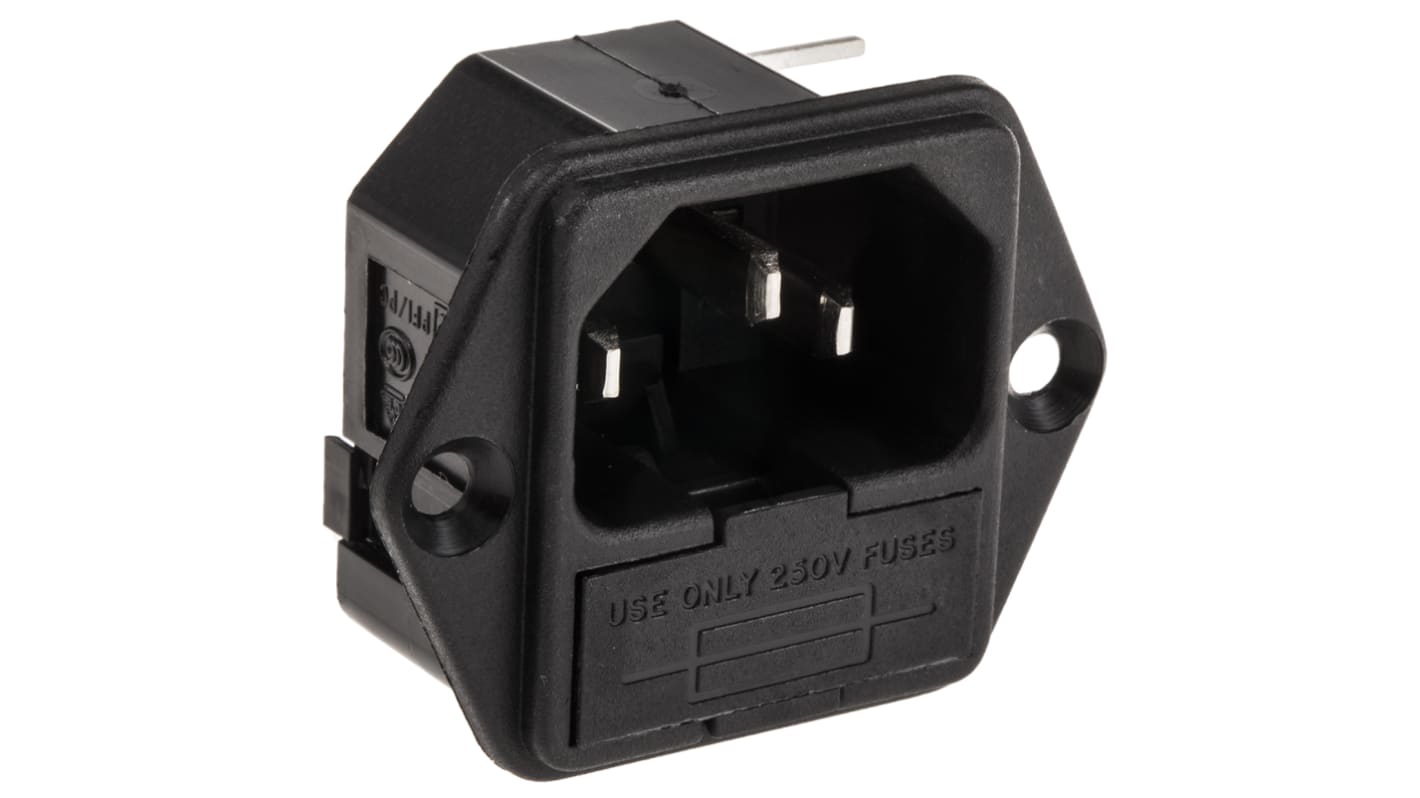

Bulgin C14 Right Angle Flange Mount IEC Connector Male, 10A, 250 V, Fuse Size 5 x 20mm

RS Stock No.:: 311-8047
Distrelec Article No.:: 300-92-298
Mfr. Part No.:: PF0001/PC
Brand:: Bulgin

Bulgin C14 Right Angle Flange Mount IEC Connector Male, 10A, 250 V, Fuse Size 5 x 20mm

Subtotal (1 unit)*

Kr.61 58

(exc. VAT)

Kr.76 98

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

249 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location
Plus 20 unit(s) shipping from 30. juni 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 61,58

*price indicative

RS Stock No.:: 311-8047
Distrelec Article No.:: 300-92-298
Mfr. Part No.:: PF0001/PC
Brand:: Bulgin

Bulgin PF0001 Series IEC Connector, Flange Mount, 10A Current Rating - PF0001/PC

This IEC connector is designed for flange mount applications. It features a right-angle configuration and male gender, ensuring ease of installation in various electrical setups. This device meets EN60 320-1 Standard Sheet C14 Class I requirements, making it suitable for a range of power connectivity tasks.

Features & Benefits

• Complies with CSA certified and UL recognised standards
• Provides robust performance with a 10A maximum current rating
• Operates efficiently within a voltage rating of 250V
• Integrated fuse support for added safety and protection
• Offers solder termination for reliable electrical connections

Applications

• Used with PX0587, PX0587/SE, and PX0588 connectors
• Ideal for industrial automation equipment requiring secure power connections
• Utilised in electronic devices needing robust junctions
• Suitable for mechanical systems that demand reliable electrical interfaces

What is the significance of the 10A rating in this connector?

A 10A rating allows the connector to safely carry up to 10 amperes of current, which is crucial for ensuring that it can handle the electrical demands of various devices without overheating or failure.

Can the fuse size be adjusted for specific applications?

The IEC connector is designed for a standard fuse size of 5 x 20 mm, which provides optimal protection. However, matching the fuse rating to the specific application is essential for safety and compliance.

What materials are used in this connector, and how do they affect performance?

The body is made from nylon 66, which offers excellent mechanical strength and heat resistance, ensuring durability in various environmental conditions.

How do the operating temperature ranges influence its use?

With a maximum operating temperature of +70°C and a minimum of -40°C, the connector is suitable for a wide range of applications, including those in extreme climates or industrial settings.

Approvals

UL recognised; CSA certified; IMQ; SEMKO; VDE

Chassis/PCB Plugs - Fused

Note

These fused plugs accept 5 x 20mm fuses

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bulgin
	IEC Connector Type	C14
	Mounting Type	Flange Mount
	Gender	Male
	Current Rating	10A
	Body Orientation	Right Angle
	Standards Met	CSA certified, IMQ, SEMKO, UL recognised, VDE
	Termination Method	Solder
	Number of Fuses	1
	Voltage Rating	250 V
	Fuse Size	5 x 20mm
	Shuttered	No
	Series	PF0001

	Select all
	Brand Bulgin
	IEC Connector Type C14
	Mounting Type Flange Mount
	Gender Male
	Current Rating 10A
	Body Orientation Right Angle
	Standards Met CSA certified, IMQ, SEMKO, UL recognised, VDE
	Termination Method Solder
	Number of Fuses 1
	Voltage Rating 250 V
	Fuse Size 5 x 20mm
	Shuttered No
	Series PF0001
