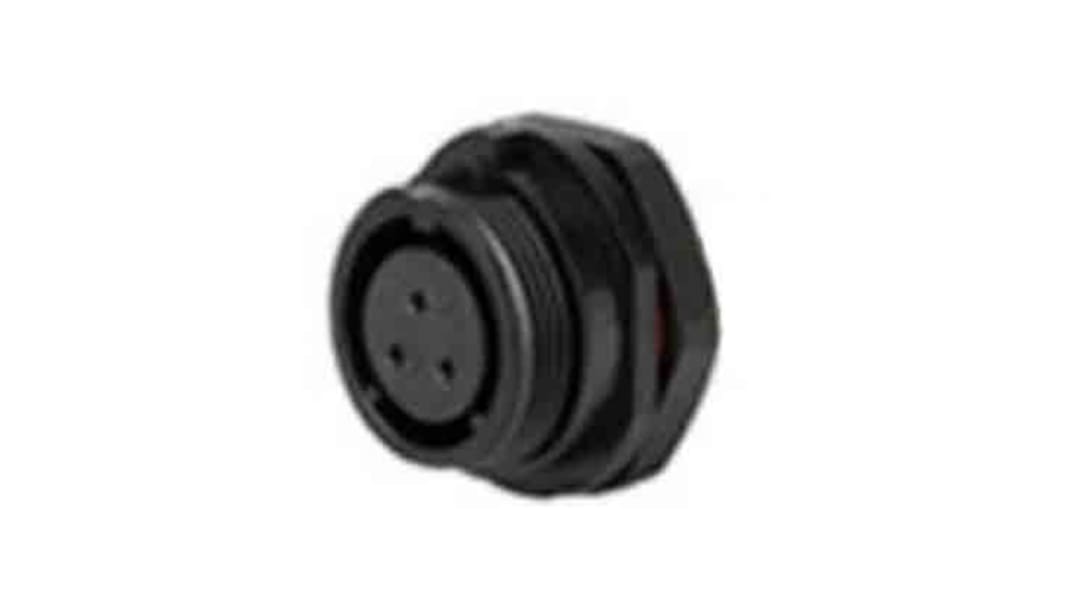

RS PRO Circular Connector, 3 Contacts, Panel Mount, Socket, Female, IP68

RS Stock No.:: 124-6653
Brand:: RS PRO

RS PRO Circular Connector, 3 Contacts, Panel Mount, Socket, Female, IP68

25 In stock for same day dispatch

Added

Price Each

Kr. 131,23

(exc. VAT)

Kr. 164,04

(inc. VAT)

Units	Per unit
1 - 9	Kr. 131,23
10 - 49	Kr. 124,32
50 - 99	Kr. 118,21
100 +	Kr. 111,10

RS Stock No.:: 124-6653
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Front Mount Socket 10A/5A Circular Connectors (Threaded) IP68

From RS Pro, these threaded sockets are serious contenders for your application. This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a female connector, this version should really be one you consider.

Features & Benefits

• 2 way, 3 way and 4 way available
• Cable outer diameter acceptance: 6 mm - 10 mm
• AWG 14
• Crimp contact termination
• High-quality Nylon66 shell
• Panel hole cutout diameter: 17 mm
• Front mounted for your convenience

Specifications

Attribute	Value
Number of Contacts	3
Mounting Type	Panel Mount
Connector Size	Standard
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Crimp
IP Rating	IP68
Current Rating	10.0A
Body Orientation	Straight
Voltage Rating	500 V
Mating Type	Threaded
Housing Material	Polymer
Pole Format	3P
Contact Plating	Gold
Minimum Operating Temperature	-25°C
Contact Material	Brass
Maximum Operating Temperature	+85°C
