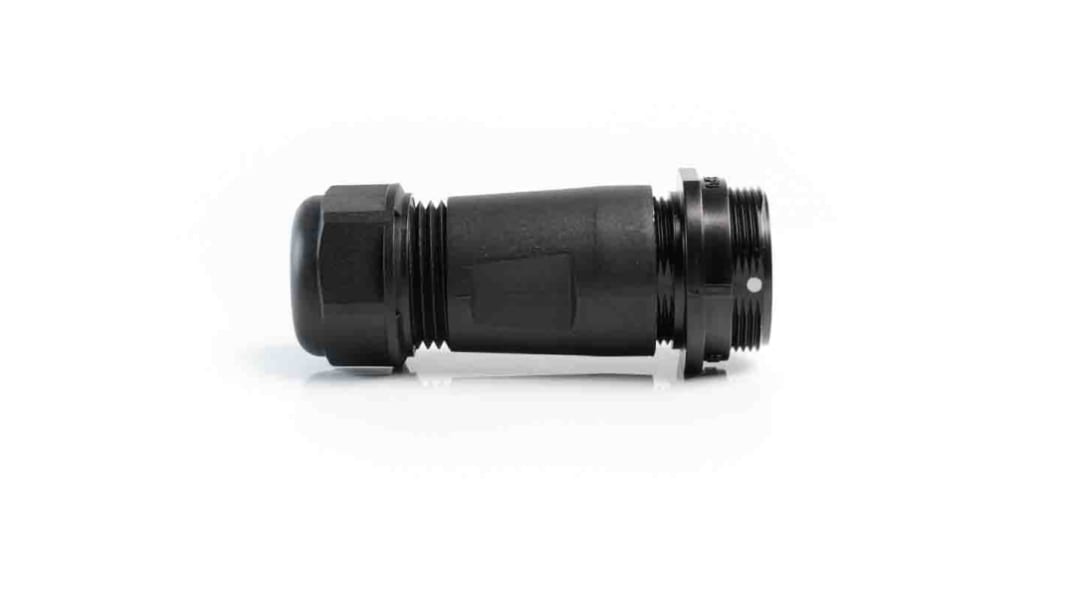

RS PRO Circular Connector, 3 Contacts, Cable Mount, Socket, Female, IP68

RS Stock No.:: 124-6665
Brand:: RS PRO

RS PRO Circular Connector, 3 Contacts, Cable Mount, Socket, Female, IP68

Available to back order for despatch 10.06.2024

Added

Price Each

Kr. 106,52

(exc. VAT)

Kr. 133,15

(inc. VAT)

Units	Per unit
1 - 9	Kr. 106,52
10 - 49	Kr. 101,21
50 - 99	Kr. 95,77
100 +	Kr. 90,55

RS Stock No.:: 124-6665
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

InLine Cable Socket 25A Circular Connectors (Threaded) IP68

From RS Pro, these threaded sockets are serious contenders for your application. This particular model has a bigger and stronger shell complimented by its cable to cable (inline) connection. That coupled with the IP68 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider.

Features & Benefits

• 2 way, 3 way and 5 way available
• Cable outer diameter acceptance: 7 mm - 12 mm
• Screw contact termination
• High-quality Nylon66 shell
• Panel hole cutout diameter: 21 mm

Note

This product could be provided in either blue/black or and all black variant

Specifications

Attribute	Value
Number of Contacts	3
Mounting Type	Cable Mount
Connector Size	Standard
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Screw
IP Rating	IP68
Current Rating	10A
Body Orientation	Straight
Voltage Rating	500 V
Mating Type	Threaded
Housing Material	Polymer
Pole Format	3P
Contact Plating	Gold
Contact Material	Brass
Outer Diameter	7→12mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
