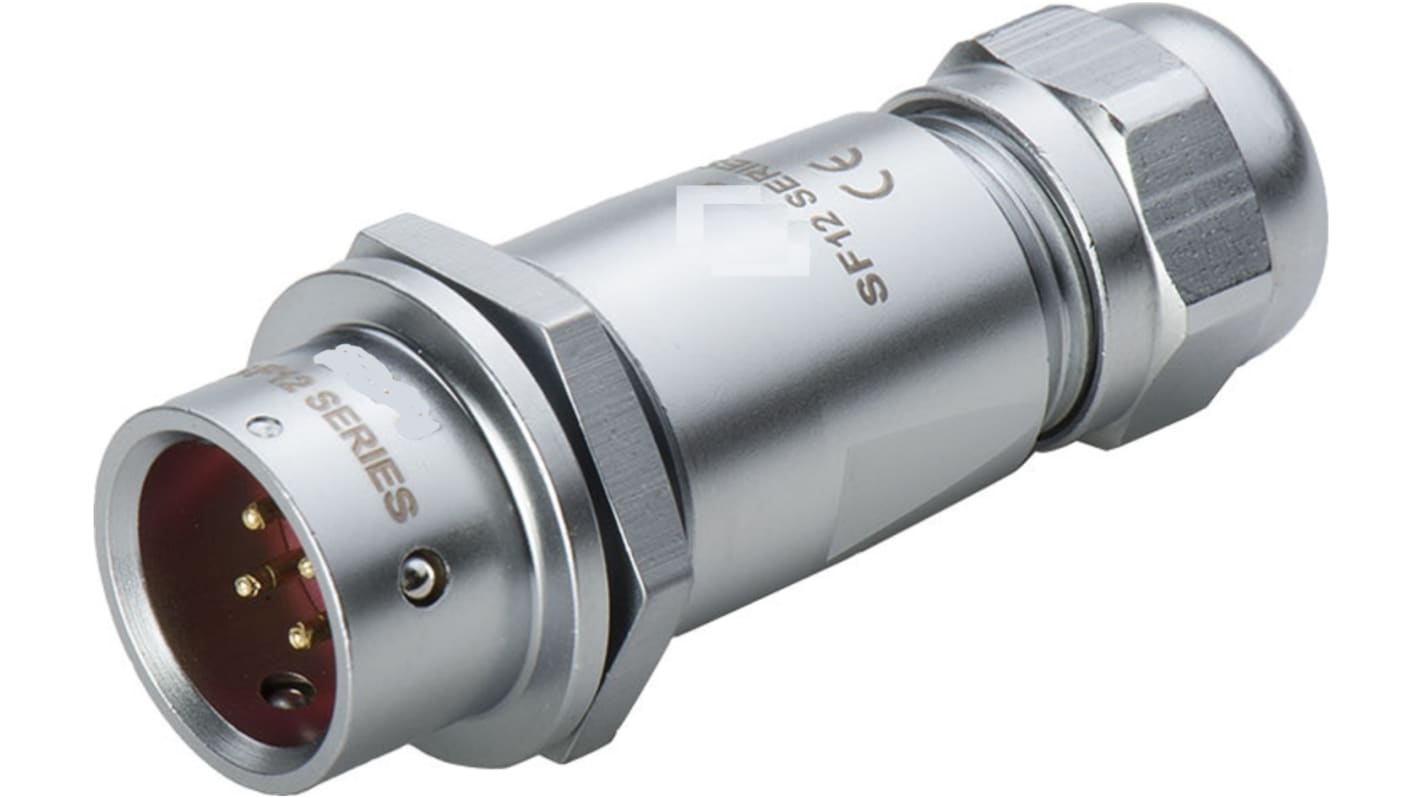

RS PRO Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67

RS Stock No.:: 124-6721
Brand:: RS PRO

RS PRO Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67

3 In stock for same day dispatch

Added

Price Each

Kr. 174,02

(exc. VAT)

Kr. 217,52

(inc. VAT)

Units	Per unit
1 - 9	Kr. 174,02
10 - 49	Kr. 165,33
50 - 99	Kr. 156,53
100 +	Kr. 147,73

RS Stock No.:: 124-6721
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

M12 In-Line Push-Pull Cable Socket

From RS Pro, these push-pull sockets are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider.

Features & Benefits

• Panel hole cutout diameter: 12 mm
• 2 way, 3 way, 4 way and 5 way all available
• Cable outer diameter: 4 mm to 6.5 mm see part numbers
124-6713 124-6714 124-6715 124-6716
• Cable outer diameter: 5 mm to 8 mm
124-6717 124-6719 124-6720 124-6721
• Solder termination
• Chrome plated brass shell material
• Inline cable mounted

RS Pro Push-Pull

Specifications

Attribute	Value
Number of Contacts	5
Mounting Type	Cable Mount
Connector Size	M12
Plug/Socket	Plug
Contact Gender	Male
Termination Method	Solder
IP Rating	IP67
Current Rating	5.0A
Series	SF1211
Body Orientation	Straight
Voltage Rating	180 V
Mating Type	Push-Pull
Housing Material	Metal
Pole Format	5P
Contact Plating	Gold
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-40°C
Contact Material	Brass
