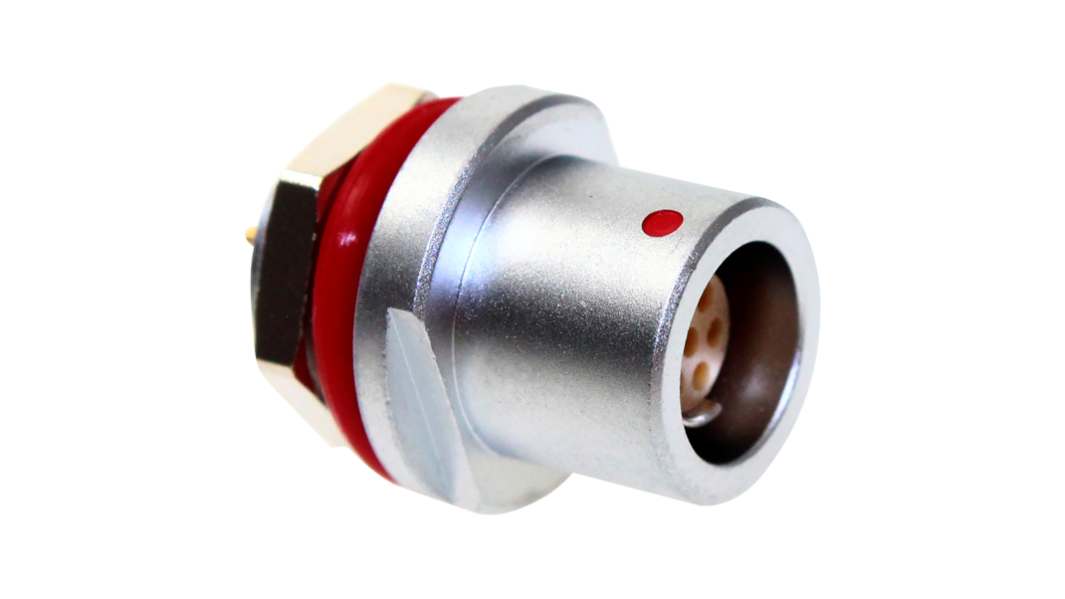

CAMDENBOSS Circular Connector, 7 Contacts, Panel Mount, Socket, Female, IP68, CamCirc CCE1 Series
- RS Stock No.:
- 174-7721
- Mfr. Part No.:
- CCE1S1/07
- Brand:
- CAMDENBOSS
2 In stock for same day dispatch
Added
Price Each
Kr. 218,13
(exc. VAT)
Kr. 272,66
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 218,13 |
- RS Stock No.:
- 174-7721
- Mfr. Part No.:
- CCE1S1/07
- Brand:
- CAMDENBOSS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
CamCirc Fixed Socket Protruding, 102 Size, 7 Pole
7 Poles
Panel mount
Receptacle
Key coded to prevent mis-connection
Does not disconnect when the cable is under load or stress
Tough, high performance interconnection solution
Suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural
Ideal for harsh environments.
Panel mount
Receptacle
Key coded to prevent mis-connection
Does not disconnect when the cable is under load or stress
Tough, high performance interconnection solution
Suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural
Ideal for harsh environments.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 7 |
| Mounting Type | Panel Mount |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Solder |
| IP Rating | IP68 |
| Current Rating | 2.0A |
| Series | CamCirc CCE1 |
| Body Orientation | Straight |
| Voltage Rating | 160.0 V |
| Mating Type | Push-Pull |
| Housing Material | Brass |
| Pole Format | 7P |
| Contact Plating | Gold |
| Contact Material | Brass |
| Maximum Operating Temperature | +60°C |
