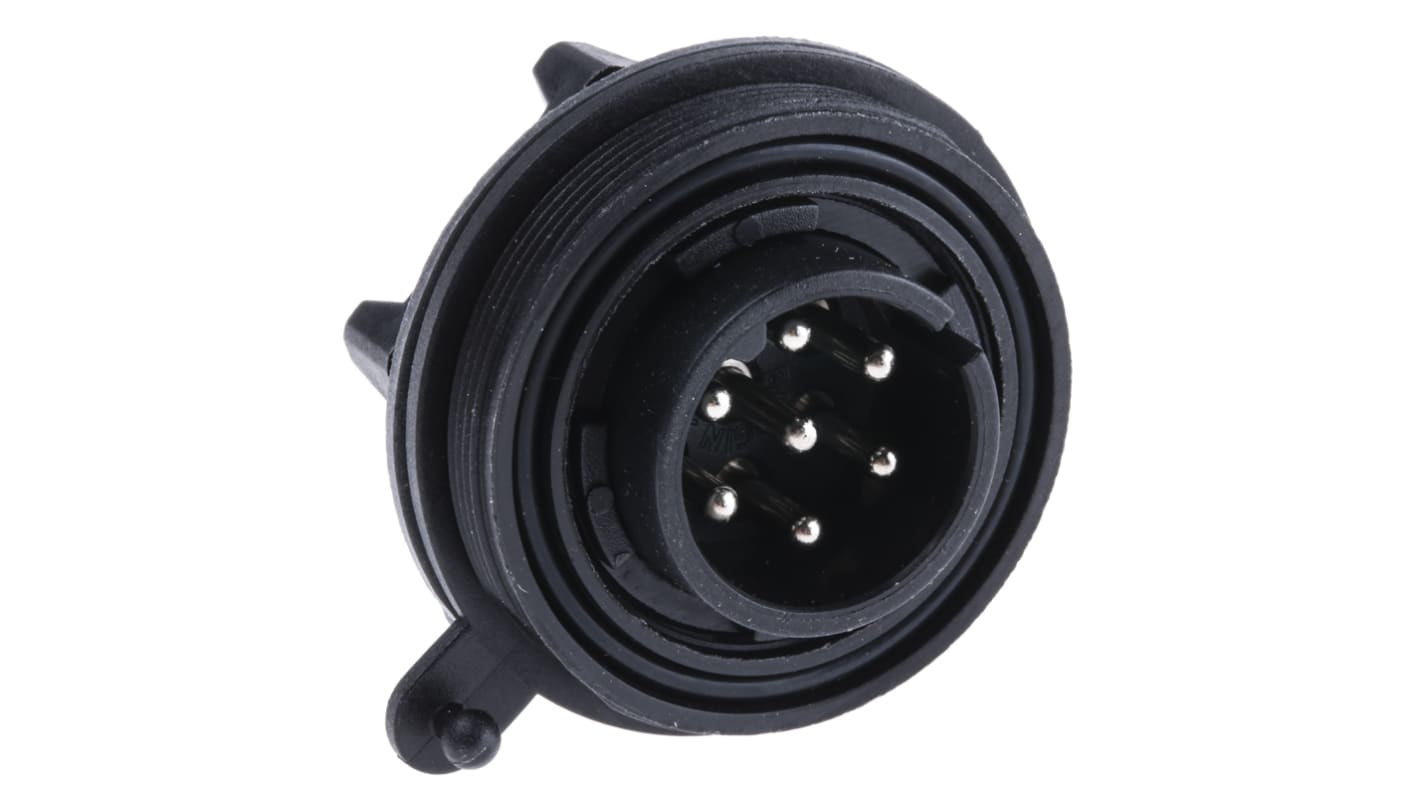

Bulgin Circular Connector, 7 Contacts, Panel Mount, Plug, Male, IP68, Standard Buccaneer Series

RS Stock No.:: 275-5443
Distrelec Article No.:: 144-64-152
Mfr. Part No.:: PX0744/P
Brand:: Bulgin

Bulgin Circular Connector, 7 Contacts, Panel Mount, Plug, Male, IP68, Standard Buccaneer Series

Bulk discount available

Subtotal (1 unit)*

Kr.217 82

(exc. VAT)

Kr.272 28

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

63 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location
Plus 201 unit(s) shipping from 27. juni 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	Kr. 217,82
10 - 49	Kr. 200,66
50 - 99	Kr. 189,68
100 +	Kr. 174,23

*price indicative

RS Stock No.:: 275-5443
Distrelec Article No.:: 144-64-152
Mfr. Part No.:: PX0744/P
Brand:: Bulgin

Bulgin Buccaneer Standard Sealed Power Connectors, Rear Panel Mounting

From Bulgin, the Buccaneer Standard Series of low profile panel connectors are robust and versatile connectors for power management solutions. With a screw locking mating system that ensures a secure connection, these compact connectors are ideal for use in challenging conditions.

With no special tooling needed for termination, the Buccaneer Standard series connectors are easy to assemble, even in the field. The panel connectors have a single hole fixing with an easy to use jam nut.

The connectors also feature a positive locking mating system which means the connector cannot be mis-matched.

Environment

The Standard Series of Buccaneer connectors are protected to IP68 when mated. This means they are dust tight, and resistant against particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.

Features and Benefits

• IP68
• UL94HB Housing
• Insulation Resistance of >104 MΩ @ 500 V dc
• Positive locking keyways
• Front Panel Mounting

Applications

Due to their excellent environmental resistance properties, Buccaneer connectors are ideal for harsh industrial environments and automotive applications. Their excellent resistance to liquid ingress also makes them suitable for marine applications.

FAQ

Q: Are there accessories available for this connector?

A: There are connector caps available for Standard Buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.

Q: How durable is the connector?

A: The Standard Buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oils and saltwater.

Q: What are the mating requirements of this connector?

A: The Buccaneer standard series panel connectors mate with corresponding flex cable connectors.

Q: Are contacts supplied with this connector?

A: Panel connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.

Approvals

CSA; UL; VDE

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bulgin
	Number of Contacts	7
	Mounting Type	Panel Mount
	Connector Size	Standard
	Plug/Socket	Plug
	Contact Gender	Male
	Termination Method	Screw
	IP Rating	IP68
	Current Rating	5.0A
	Series	Standard Buccaneer
	Body Orientation	Straight
	Voltage Rating	250.0 V
	Shell Size	38
	Mating Type	Threaded
	Housing Material	Polymer
	Strain Relief	No
	Contact Plating	Nickel
	Contact Material	Brass
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+70°C

	Select all
	Brand Bulgin
	Number of Contacts 7
	Mounting Type Panel Mount
	Connector Size Standard
	Plug/Socket Plug
	Contact Gender Male
	Termination Method Screw
	IP Rating IP68
	Current Rating 5.0A
	Series Standard Buccaneer
	Body Orientation Straight
	Voltage Rating 250.0 V
	Shell Size 38
	Mating Type Threaded
	Housing Material Polymer
	Strain Relief No
	Contact Plating Nickel
	Contact Material Brass
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +70°C
