Overview

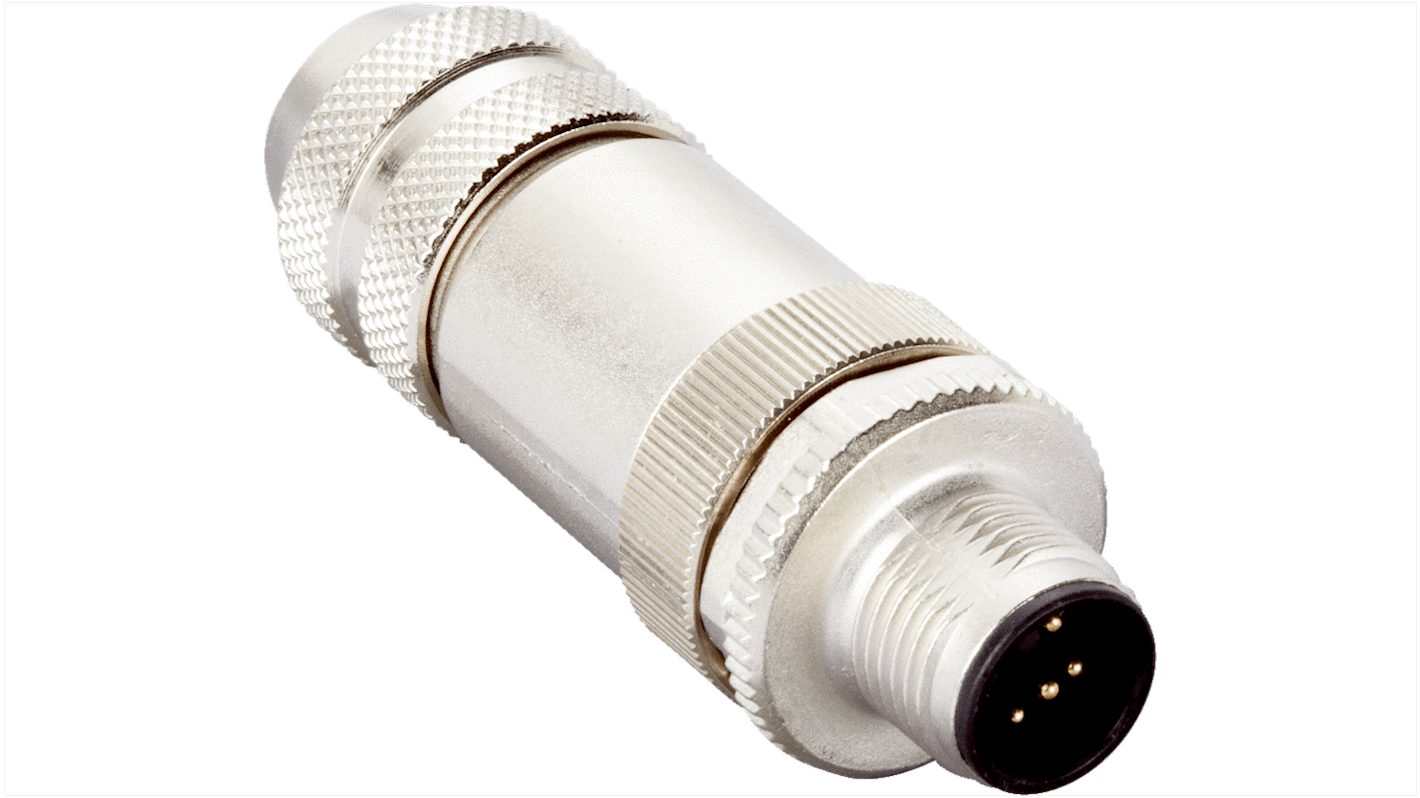

The Connectors from field attachable connectors family provides a male connector, with a M12 specification and 5 pins arranged in a straight configuration at Head A with A coded, utilizes screw-type terminals for a reliable connection. Constructed with Zinc die-cast, nickel-plated material, the connectors accommodate cables with a permitted diameter ranging from 6 mm to 8 mm.

The permitted cross section for the cables 0.75 mm². They can handle a current loading of up to 4 A. The connectors are designed with an enclosure rating of IP67.

Select all	Attribute	Value
	Brand	SICK
	Mounting Type	Screw Mount
	Connector Size	M12
	Plug/Socket	Plug
	Contact Gender	Male
	Termination Method	Screw
	IP Rating	IP67
	Current Rating	4.0A
	Body Orientation	Straight
	Series	STE
	Coding	A
	Voltage Rating	125.0 V
	Mating Type	Plug-In
	Housing Material	Zinc Die Cast
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand SICK
	Mounting Type Screw Mount
	Connector Size M12
	Plug/Socket Plug
	Contact Gender Male
	Termination Method Screw
	IP Rating IP67
	Current Rating 4.0A
	Body Orientation Straight
	Series STE
	Coding A
	Voltage Rating 125.0 V
	Mating Type Plug-In
	Housing Material Zinc Die Cast
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C

SICK Connector, Screw Mount, M12 Connector, Plug, Male, IP67, STE Series
