Xylem MTIC2 Series Level Controller - Panel Mount, 240 V ac 10 Analog 4 to 20 mA
- RS Stock No.:
- 144-9334
- Mfr. Part No.:
- 84800054
- Brand:
- Xylem
Available to back order for despatch 28.05.2024
Added
Price Each
Kr. 12 174,91
(exc. VAT)
Kr. 15 218,64
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 12 174,91 |
- RS Stock No.:
- 144-9334
- Mfr. Part No.:
- 84800054
- Brand:
- Xylem
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AU
Product Details

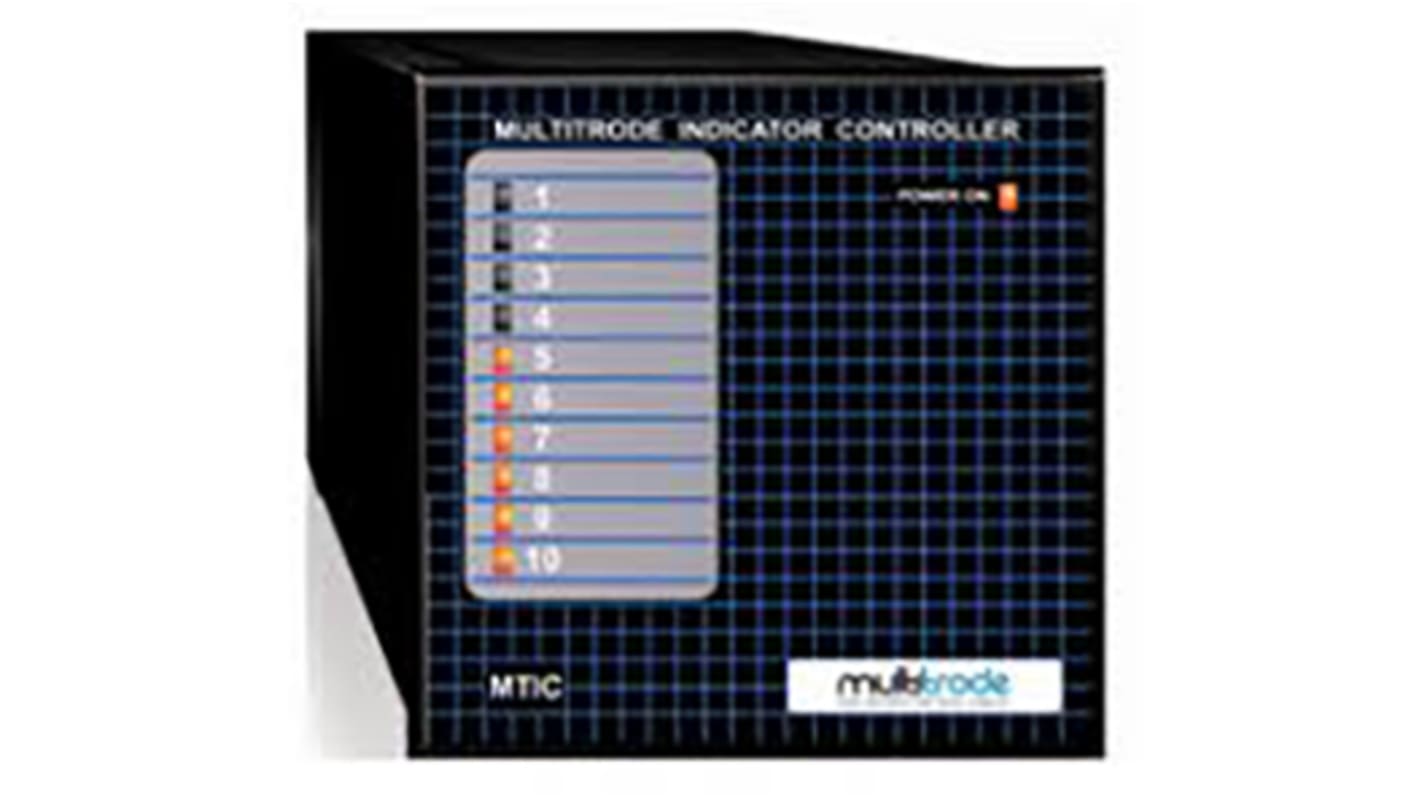

MTIC Indicator Controller
The MultiTrode indicator probe provides continuous level indication and pump control. The probe can be connected to a PLC or dedicated pump controller system. The 10 digital outputs provide a mechanism for simple pump control without any other control device.
Features and Benefits
4 mA to 20 mA output
10 digital outputs
Bargraph for level indication
Control up to 3 pumps
Product Application Information
The MultiTrode indicator probe can be connected to a PLC/RTU or be used to provide independent control.
Xylem
Specifications
Attribute | Value |
|---|---|
| Number of Inputs | 10 |
| Mounting Style | Panel Mount |
| Probe Voltage | 10V ac |
| Supply Voltage | 240 V ac |
| Overall Length | 96mm |
| Overall Width | 96mm |
| Overall Depth | 130mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Output Type | Analog 4 to 20 mA |
| Current Rating | 800 μA |
| Sensitivity | 1 kΩ, 4 kΩ, 20 kΩ, 80 kΩ |
| Series | MTIC2 |
