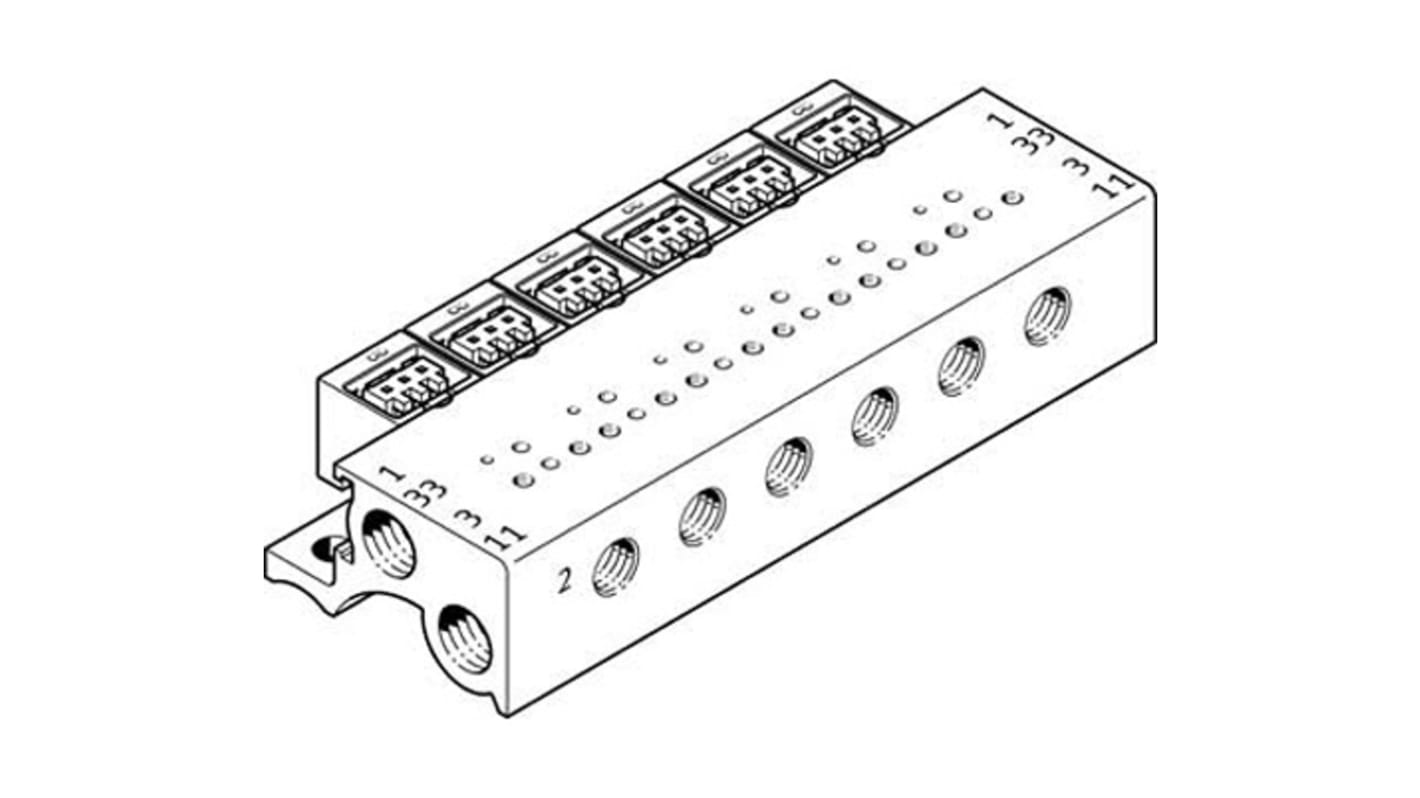

Festo MHA1 series 6 station Metric M3 Manifold for use with Valves

The Festo Manifold is a versatile and reliable component for industrial automation applications. With a max number of valve positions of 6 and an operating pressure range of 0 to 8 bar, this manifold is designed to deliver optimal performance in various settings. Made from wrought aluminium alloy, it offers low corrosion stress and excellent durability for long-term use.

Max number of valve positions: 6
Operating pressure range: 0 bar to 8 bar
Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
Lubricated operation possible for enhanced performance
Corrosion resistance class CRC 1 - Low corrosion stress
Ambient temperature range: -10°C to 60°C
With through-hole mounting method for easy installation
Pneumatic connections: port 1 M7, port 2 M3, port 3 M7
