Lapp NYM-J 1.5 mm² 7 Core Power Cable, Grey PVC, 50m

View all Power Cable

Subtotal (1 reel of 50 units)*

Kr.3 620 74

(exc. VAT)

Kr.4 525 92

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +Kr. 3 620,74Kr. 72,415

*price indicative

RS Stock No.:
387-7314
Distrelec Article No.:
303-99-555
Mfr. Part No.:
1600003
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Cross Sectional Area

1.5 mm²

Number of Cores

7

Sheath Colour

Grey

Length

50m

Current Rating

19 A

CPR Certification

Eca

Outer Diameter

11.6mm

Sheath Material

PVC

Voltage Rating

500 V

Conductor Strand Type

Solid

Series

NYM-J

Size of Strands

1.38 mm

Maximum Operating Temperature

+70°C

Conductor Material

Copper

Standards Met

Euroclass Eca

Fire Behaviour

Flame Retardant

Insulation Material

PVC

Core Strands

1.38 mm

Minimum Operating Temperature

-40°C

Conductor Resistance

12.1 Ω/km

American Wire Gauge

15 AWG

COO (Country of Origin):
DE

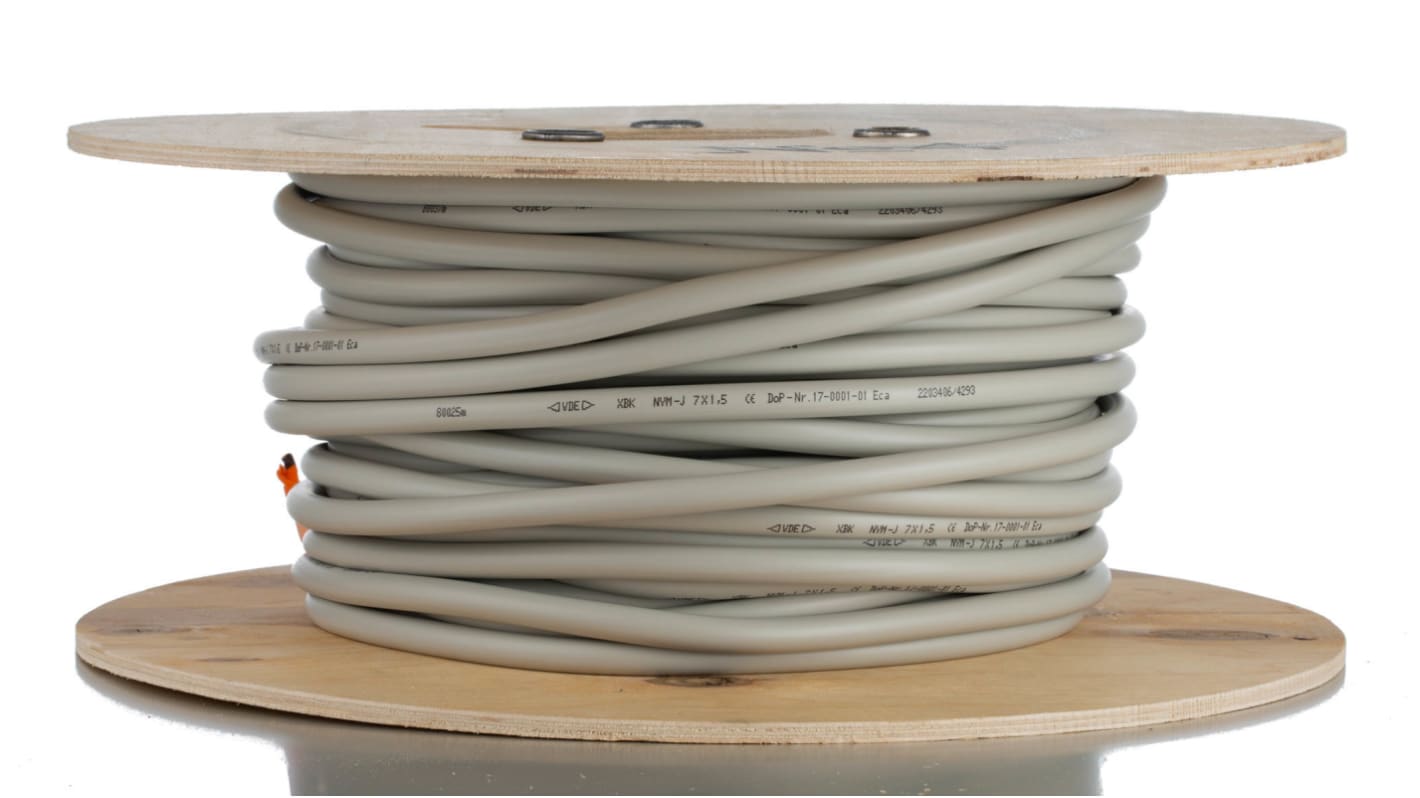

LAPP Grey Power Cable, 50m Length, 7 Cores - 1600003


Transmit your electrical supply from its source to devices using this LAPP power cable. It comes on a 50m reel, making it easy to distribute power across an extended distance under floors or inside walls without the use of adaptors. The power cable has 7 wire conductors encased in individual jackets and then bound together in a larger cable sheath. It has unterminated cable ends so you can strip back the jacket and connect the copper cores to the type of connector terminal suited to your system.

Features & Benefits


• Conductor resistance of 12.1Ω/km prevents current leakage across the cable
• PVC insulation and cable jacket material prevents bending or fraying damage in rugged industrial conditions
• Wide operating range between -40°C and +70°C for use in harsh environments
• High-quality 15AWG copper wire supports demanding data transmission

Applications


• Communication machines
• Medical testing equipment
• Power extensions
• Consumer appliances
• Industrial devices

What's the voltage rating of this power cable?

This power cable can withstand a maximum input voltage of 500V, so it's suited to moderately high voltage systems.
