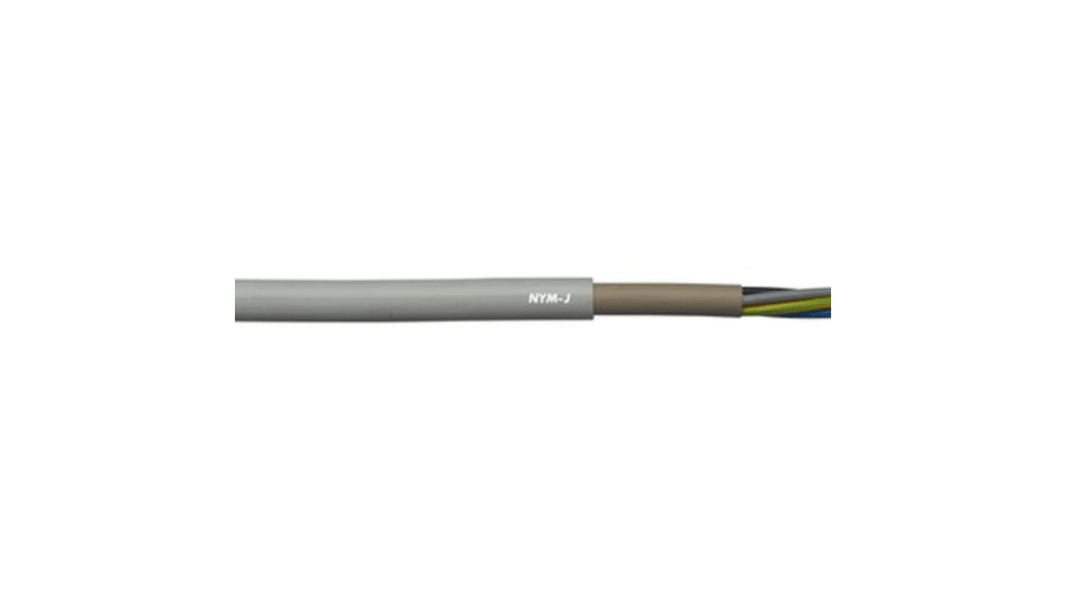

Lapp NYM-J, NYM-J 3 Core, Grey PVC Sheath Power Cable +50°C

RS Stock No.:: 515-4326
Mfr. Part No.:: 16000213
Brand:: Lapp

Lapp NYM-J, NYM-J 3 Core, Grey PVC Sheath Power Cable +50°C

Price 1 Reel of 50 Metre(s)**

Kr. 2 189,34

(exc. VAT)

Kr. 2 736,68

(inc. VAT)

6 In stock for same day dispatch*

4 available from Europe for delivery within 1 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over kr 500,00

Reel(s)	Per Reel	Per Metre**
1 +	Kr. 2 189,34	Kr. 43,787

**price indicative

RS Stock No.:: 515-4326
Mfr. Part No.:: 16000213
Brand:: Lapp

NYM-J installation cable

From Lapp, this NYM-J cable is a widely-used installation cable that is often found in domestic and commercial electrical wiring. The PVC sheathed cable is designed for use in plaster, brickwork and concrete, and is a common standard in construction and maintenance.

The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.

The cable should not be used in direct embedding in vibrated or compressed concrete.

Features and Benefits

• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing

Applications

NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.

Standards

IEC 60332-1-2, VDE, CE

Lapp NYM-J Series Power Cable, Copper Conductor, Cross Sectional Area 2.5mm² - 16000213

This power cable by Lapp is a high-quality product designed for various applications across different industries. With 13 AWG copper cable and flame retardant PVC insulation, this cable ensures safety and reliability in all operations.

Features & Benefits

• Solid conductor made of high-grade copper
• Eca certified for quality and safety compliance
• Cross-sectional area of 2.5 mm² for efficient current flow
• Flame retardant PVC sheath for added protection
• Voltage rating of 500 V for versatile applications
• 25 A current rating for handling heavy loads

Applications

• Ideal for use in industrial automation systems
• Suitable for electrical installations in commercial buildings
• Can be used for connecting machinery in manufacturing plants
• Used for power transmission in mechanical equipment

Can it handle high-current applications efficiently?

Yes, it has a 25A current rating, making it suitable for heavy load operations.

Will it provide reliable performance in industrial settings?

Yes, the solid copper conductor and PVC insulation ensure durability and safety in all applications.

Is this cable suitable for outdoor use?

Yes, with flame retardant properties and a temperature range of -40°C to +50°C, it is ideal for outdoor installations.

Can it be used in conjunction with other Lapp products?

Yes, it is compatible with a wide range of Lapp accessories for seamless integration.

Does this cable meet safety standards for industrial applications?

Yes, with Eca certification and Euroclass Eca compliance, this cable ensures the highest levels of safety and performance.

Attribute	Value
Cross Sectional Area	2.5 mm²
Number of Cores	3
Sheath Colour	Grey
Length	50m
Cable Type	NYM-J
Current Rating	25 A
Outer Diameter	9.6mm
CPR Certification	Eca
Sheath Material	PVC
Voltage Rating	500 V
Conductor Strand Type	Solid
Size of Strands	1.78 mm
Conductor Material	Copper
Core Strands	1.78 mm
Standards Met	Euroclass Eca
Fire Behaviour	Flame Retardant
Conductor Resistance	7.41 Ω/km
Maximum Operating Temperature	+50°C
Series	NYM-J
Minimum Operating Temperature	-40°C
American Wire Gauge	13 AWG
Insulation Material	PVC
