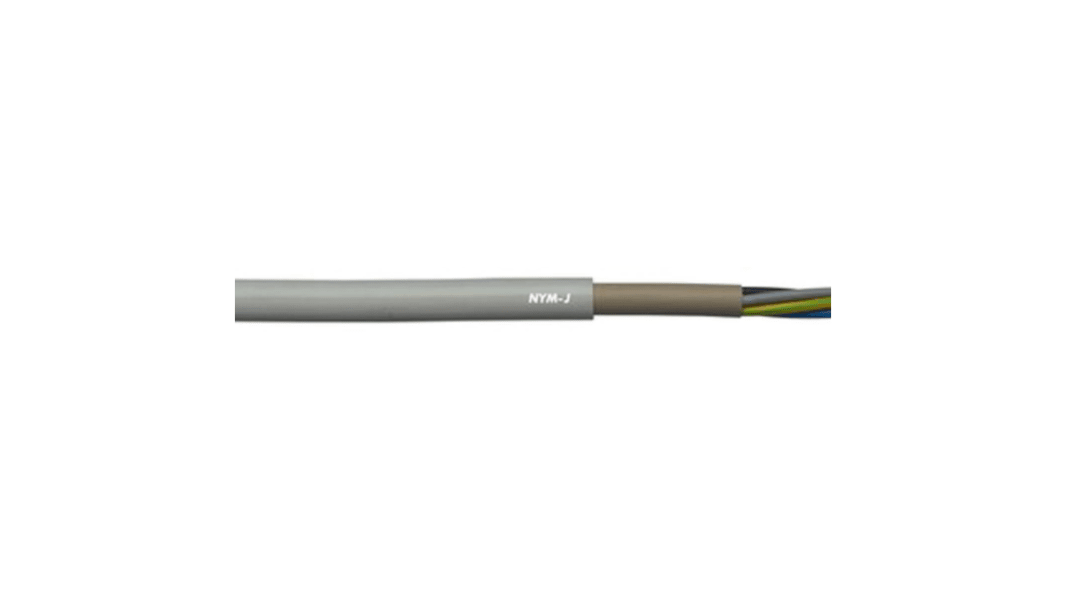

Lapp 5 Core Power Cable, 2.5 mm², 50m, Grey PVC Sheath, 25 A, 500 V
- RS Stock No.:
- 515-4253
- Mfr. Part No.:
- 16000063-2
- Brand:
- Lapp
3 In stock for same day dispatch
Added
Price 1 Reel of 100 Metre(s)
Kr. 6 858,83
(exc. VAT)
Kr. 8 573,54
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | Kr. 6 858,83 | Kr. 68,588 |
| *price indicative | ||
- RS Stock No.:
- 515-4253
- Mfr. Part No.:
- 16000063-2
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
LAPP Power Cable, 500V Voltage Rating, Bare Copper Conductors - NYM-J Series - 16000063-2
Use this power cable from LAPP to energise electrical appliances in your home and office spaces. It has bare copper conductors that have low resistance and high conductivity to ensure reliable signal transmission. Thanks to a durable PVC outer sheath, the cable can withstand impact and abrasion, so you can rely on it for long-term performance without damage. Its 500V voltage rating makes it a practical choice for low-voltage to medium-voltage applications.
Features & Benefits
• Cable length of 50m provides enough for long cable runs and multiple jobs
• Wide operating temperature range of -5°C to +60°C during installation for use in demanding conditions
• 5-core construction for multi-circuit signal transmission
• Wide operating temperature range of -5°C to +60°C during installation for use in demanding conditions
• 5-core construction for multi-circuit signal transmission
Applications
• Construction sites
• Domestic wiring
• Domestic wiring
Is this cable flexible?
Yes, this cable's minimum bend radius of four times its outer diameter makes it suitable for installation around corners.
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 2.5 mm² |
| Number of Cores | 5 |
| Sheath Colour | Grey |
| Length | 50m |
| Current Rating | 25 A |
| Sheath Material | PVC |
| Outer Diameter | 12.2mm |
| CPR Certification | Eca |
| Voltage Rating | 500 V |
| Conductor Strand Type | Solid |
| Minimum Operating Temperature | -5°C |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PVC |
| Conductor Resistance | 7.41 Ω/km |
| American Wire Gauge | 13 AWG |
| Maximum Operating Temperature | +60°C |
| Size of Strands | 1.78 mm |
| Conductor Material | Bare Copper |
| Core Strands | 1.78 mm |
| Series | NYM-J |
| Standards Met | Euroclass Eca |
