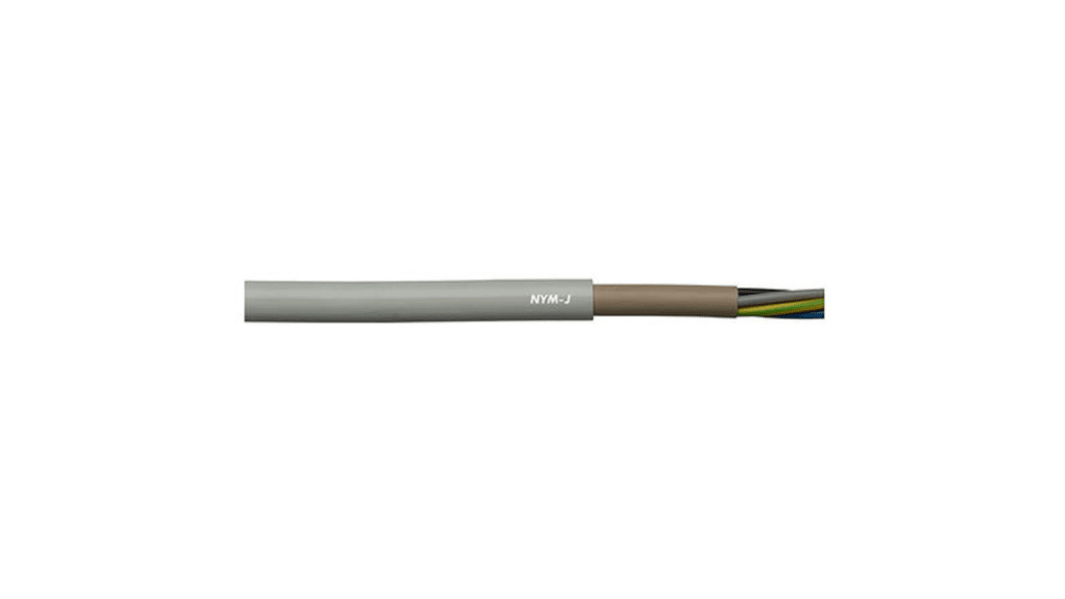

Lapp NYM-J 2.5 mm² 5 Core Power Cable, Grey PVC, 50m

RS Stock No.:: 515-4310
Mfr. Part No.:: 16000063
Brand:: Lapp

Lapp NYM-J 2.5 mm² 5 Core Power Cable, Grey PVC, 50m

Subtotal (1 reel of 50 metres)*

Kr.3 857 23

(exc. VAT)

Kr.4 821 54

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

3 unit(s) ready to ship
Plus 2 unit(s) shipping from 06. mars 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	Kr. 3 857,23	Kr. 77,145

*price indicative

RS Stock No.:: 515-4310
Mfr. Part No.:: 16000063
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Cross Sectional Area	2.5 mm²
	Number of Cores	5
	Sheath Colour	Grey
	Length	50m
	Armoured	No
	Current Rating	25 A
	Sheath Material	PVC
	CPR Certification	Eca
	Outer Diameter	11.5mm
	Voltage Rating	500 V
	Conductor Strand Type	Solid
	Core Strands	1.78 mm
	Conductor Material	Copper
	Conductor Resistance	7.41 Ω/km
	American Wire Gauge	13 AWG
	Insulation Material	PVC
	Number of Strands	5
	Maximum Operating Temperature	+50°C
	Minimum Operating Temperature	-40°C
	Cable Shape	Round
	Series	NYM-J
	Size of Strands	1.78 mm
	Standards Met	Euroclass Eca
	Fire Behaviour	Flame Retardant

	Select all
	Brand Lapp
	Cross Sectional Area 2.5 mm²
	Number of Cores 5
	Sheath Colour Grey
	Length 50m
	Armoured No
	Current Rating 25 A
	Sheath Material PVC
	CPR Certification Eca
	Outer Diameter 11.5mm
	Voltage Rating 500 V
	Conductor Strand Type Solid
	Core Strands 1.78 mm
	Conductor Material Copper
	Conductor Resistance 7.41 Ω/km
	American Wire Gauge 13 AWG
	Insulation Material PVC
	Number of Strands 5
	Maximum Operating Temperature +50°C
	Minimum Operating Temperature -40°C
	Cable Shape Round
	Series NYM-J
	Size of Strands 1.78 mm
	Standards Met Euroclass Eca
	Fire Behaviour Flame Retardant

COO (Country of Origin):: DE

LAPP Power Cable, 2000V AC Test Voltage, PVC Jacket - NYM-J Series - 16000063

When electrical installations are up against the wall, bring in this power cable from LAPP. Its PVC insulation and outer jacket make it tough and durable, so it safely distributes supplies around buildings when it's routed in and on plaster, masonry and concrete. The cable has a nominal voltage of 300V for TN earthing and 500V for three-phase systems, enabling its use in domestic and commercial applications.

Features & Benefits

• Flame-retardant material helps to stop flames from spreading
• Bare copper wires provide dependable power in harsh environments
• Industry-standard colour coding on the cores for a straightforward connection
• Filling compound to bolster ruggedness and moisture resistance, making it suitable for damp interiors

Applications

• Construction industry
• Facilities maintenance
• Electrical engineering
• Building infrastructure

How flexible is this power cable?

The unit's minimum bend radius of four times its outer diameter of 11.5mm allows for flexible routing in fixed installations.
