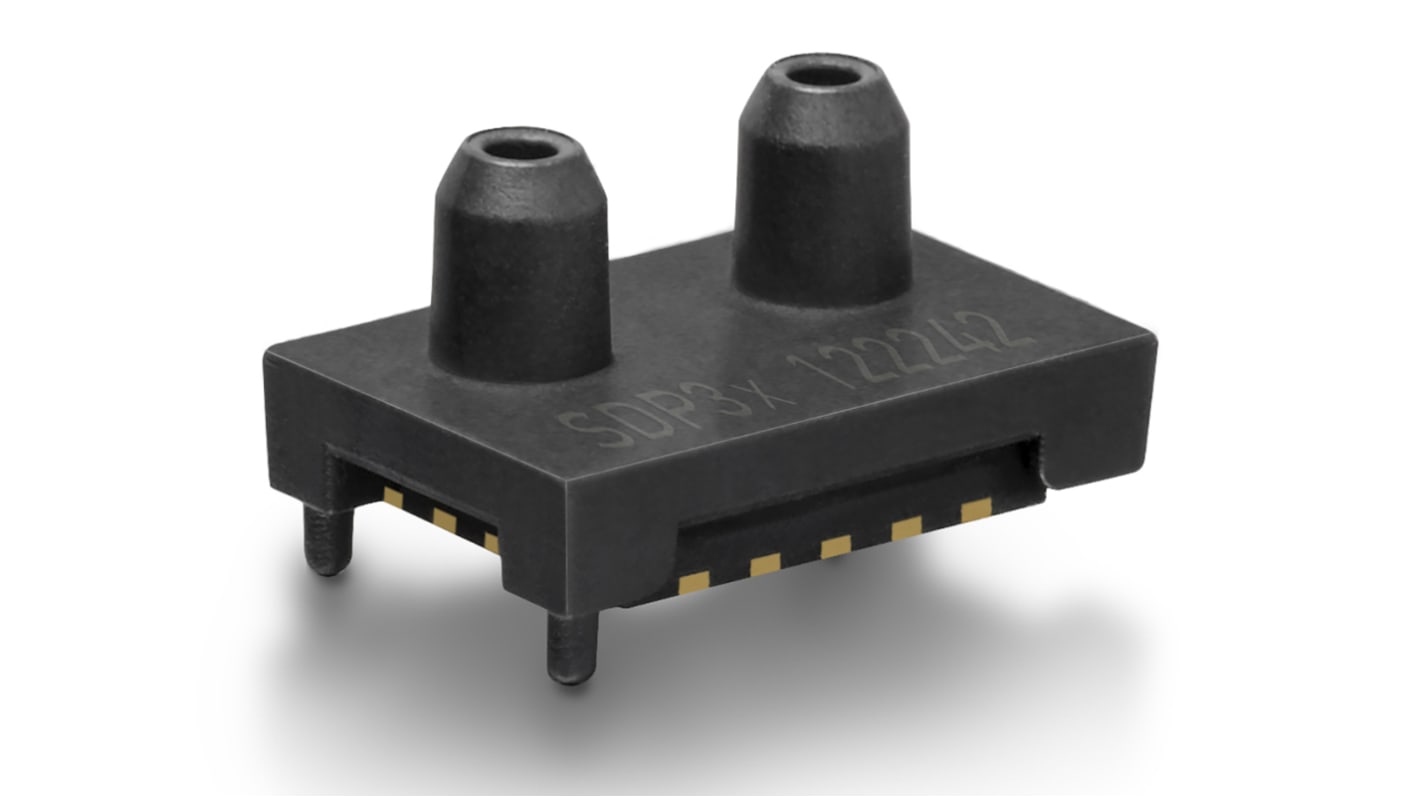

Sensirion SDP33 Series Pressure Sensor, -15mbar Min, 1500Pa Max, I2C Output, Differential Reading
- RS Stock No.:
- 174-9069
- Mfr. Part No.:
- SDP33-1500Pa-TR-250pcs
- Brand:
- Sensirion
Bulk discount available
Subtotal (1 unit)**
Kr. 297,78
(exc. VAT)
Kr. 372,22
(inc. VAT)
Available to back order for despatch when stock is available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over kr 500,00
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 297,78 |
| 5 - 9 | Kr. 284,06 |
| 10 - 24 | Kr. 256,94 |
| 25 - 49 | Kr. 236,69 |
| 50 + | Kr. 209,58 |
**price indicative
- RS Stock No.:
- 174-9069
- Mfr. Part No.:
- SDP33-1500Pa-TR-250pcs
- Brand:
- Sensirion
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensirion | |
| Pressure Reading Type | Differential | |
| Minimum Pressure Reading | -15mbar | |
| Maximum Pressure Reading | 1500Pa | |
| Accuracy | 6 % | |
| Output Type | I2C | |
| Media Measured | Air, N2, O2 | |
| Process Connection | 2 mm Tube | |
| Response Time | 3 ms | |
| Maximum Current | 5.5 mA | |
| Series | SDP33 | |
| Supply Voltage | 5.5 V | |
| Interface | I2C | |
| Housing Material | Epoxy-Based Resin, Glass, LCP | |
| Mounting Type | PCB Mount | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Sensirion | ||
Pressure Reading Type Differential | ||
Minimum Pressure Reading -15mbar | ||
Maximum Pressure Reading 1500Pa | ||
Accuracy 6 % | ||
Output Type I2C | ||
Media Measured Air, N2, O2 | ||
Process Connection 2 mm Tube | ||
Response Time 3 ms | ||
Maximum Current 5.5 mA | ||
Series SDP33 | ||
Supply Voltage 5.5 V | ||
Interface I2C | ||
Housing Material Epoxy-Based Resin, Glass, LCP | ||
Mounting Type PCB Mount | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
