Select all	Attribute	Value
	Brand	Pepperl + Fuchs
	Sensor Technology	Inductive
	Body Style	Block
	Detection Range	35 mm
	Output Function	NO+NC
	Digital Switching Output Type	PNP
	Connection Type	M12
	Supply Voltage	15 → 34 V dc
	IP Rating	IP67
	Length	69mm
	Mounting Type	Non-Flush
	Width	40mm
	Housing Material	Plastic
	Maximum DC Voltage	34V
	Minimum Operating Temperature	-25°C
	Shielding	Unshielded
	Depth	40mm
	Maximum Operating Temperature	+85°C
	Maximum Switching Frequency	30Hz
	Switching Current	150 mA
	Reverse Polarity Protection	Yes
	Switching Frequency	30 Hz
	Short Circuit Overload Protection	Yes

	Select all
	Brand Pepperl + Fuchs
	Sensor Technology Inductive
	Body Style Block
	Detection Range 35 mm
	Output Function NO+NC
	Digital Switching Output Type PNP
	Connection Type M12
	Supply Voltage 15 → 34 V dc
	IP Rating IP67
	Length 69mm
	Mounting Type Non-Flush
	Width 40mm
	Housing Material Plastic
	Maximum DC Voltage 34V
	Minimum Operating Temperature -25°C
	Shielding Unshielded
	Depth 40mm
	Maximum Operating Temperature +85°C
	Maximum Switching Frequency 30Hz
	Switching Current 150 mA
	Reverse Polarity Protection Yes
	Switching Frequency 30 Hz
	Short Circuit Overload Protection Yes

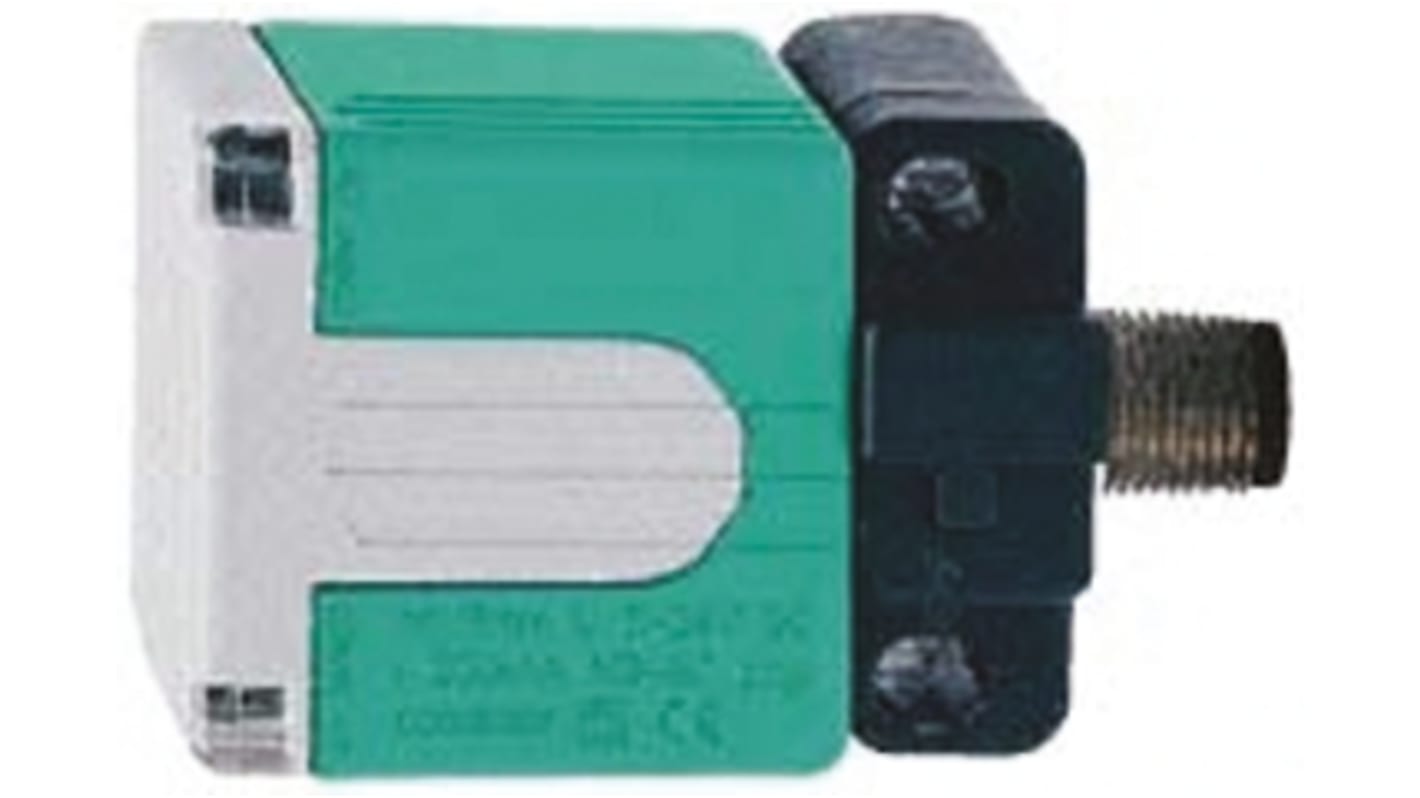

Pepperl + Fuchs Inductive Block Proximity Sensor, 35 mm Detection, PNP NO+NC, 15 → 34 V dc

FREE delivery for orders over kr 500,00

Inductive proximity switch, size 40x40mm, increased operating distance

Special features

Approvals
