ITW Switches 59 Series Miniature Push Button Switch, Momentary, Panel, 13.65 mm Cutout, SPST, Clear LED, IP67, 50 V 125

View all Push Button Switches
Bulk discount available

Subtotal (1 unit)*

Kr.88 14

(exc. VAT)

Kr.110 18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 010 unit(s) ready to ship
  • Plus 24 unit(s) ready to ship from another location
  • Plus 732 unit(s) shipping from 27. januar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1Kr. 88,14
2 - 4Kr. 85,46
5 - 9Kr. 83,63
10 - 24Kr. 81,00
25 +Kr. 77,68

*price indicative

RS Stock No.:
408-050
Mfr. Part No.:
59-115
Brand:
ITW Switches
Find similar products by selecting one or more attributes.
Select all

Brand

ITW Switches

Product Type

Miniature Push Button Switch

Switch Operation

Momentary

Actuator Colour

Yellow

Illuminated

No

Series

59

Panel Cutout Size

13.65 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Solder

LED Colour

Clear

IP Rating

IP67

Contact AC Voltage

125V

Actuator Style

Round

Contact DC Voltage

50V

Minimum Operating Temperature

-55°C

Switch Configuration

On-Off

Maximum Operating Temperature

125°C

Standards/Approvals

UL, CSA

Switch Contact Current

400 mA

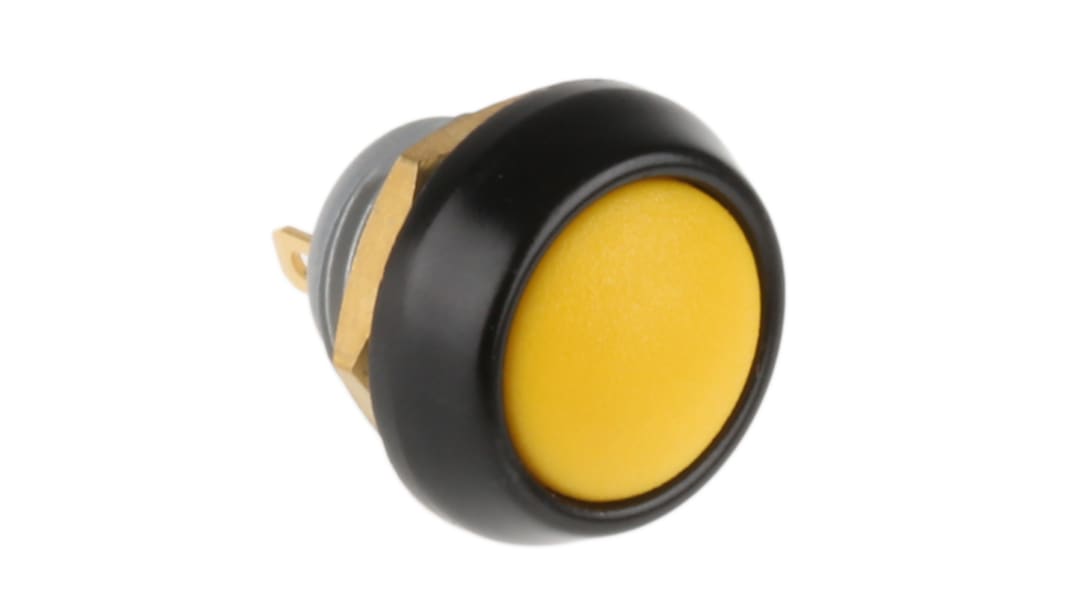

This 59-115 is a miniature, momentary, panel mount push button switch.

Features and Benefits


• Round bezel button

• Yellow button

• Non- illuminated

• Solder Terminals

• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position

Miniature Sealed Pushbutton Switches (SPNO)


These 59 series are a range of miniature, momentary action, rugged panel sealed pushbutton switches from ITW, that can be used across a number of industries and applications such as:-

• Communications

• Data entry

• Military Environments

• Instrumentation

• Mass transport controls

• Environmentally demanding keypads

Features and Benefits


• Miniature switch.

• Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).

• Can be used over a wide temperature range.

• Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.

• Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.

• Non-spark material.

• High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.

• Gold contacts.

• A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.
