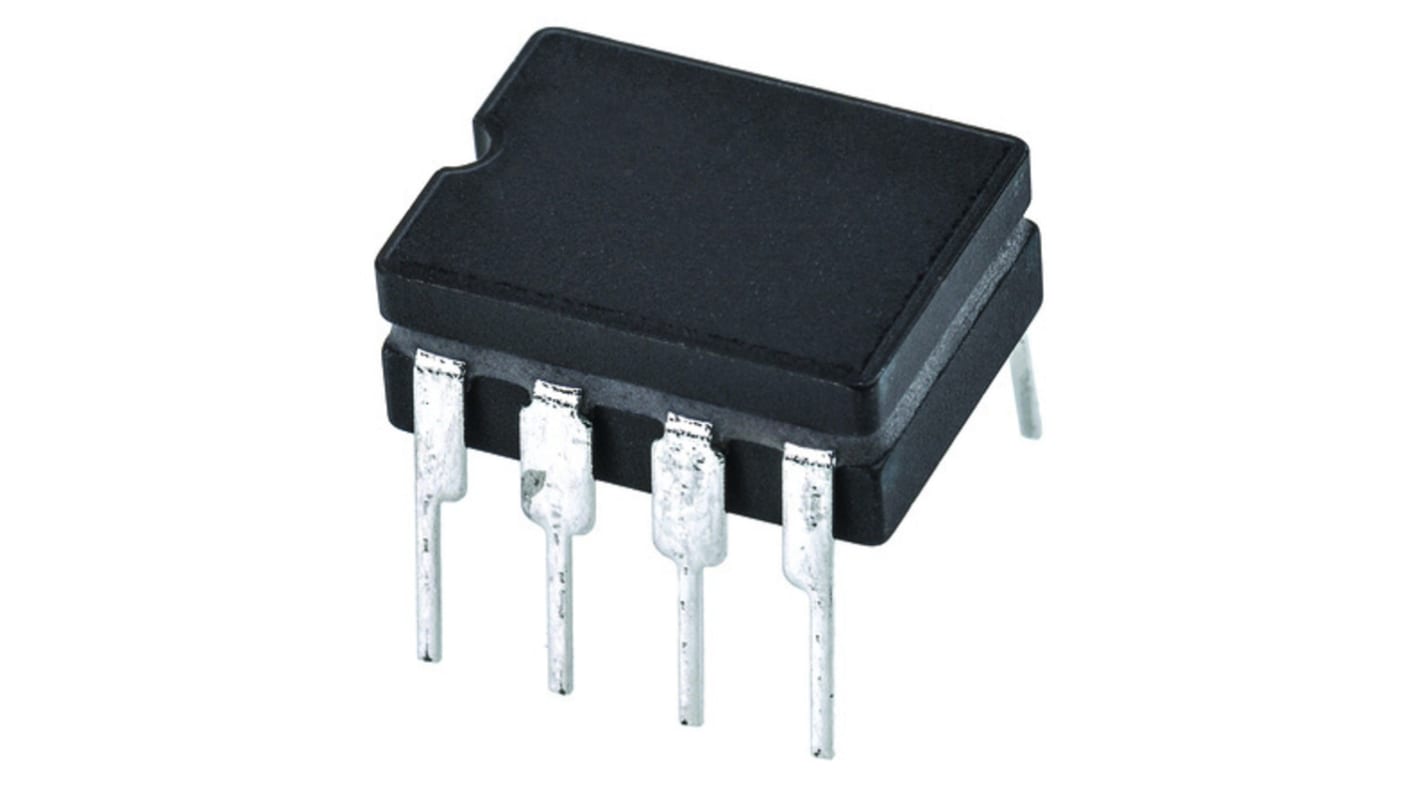

Texas Instruments UC1845AJ, PWM Controller, 2.5 V, 500 kHz 8-Pin, CDIP

RS Stock No.:: 796-8473P
Mfr. Part No.:: UC1845AJ
Brand:: Texas Instruments

Texas Instruments UC1845AJ, PWM Controller, 2.5 V, 500 kHz 8-Pin, CDIP

Bulk discount available

Subtotal 5 units (supplied in a tube)**

Kr. 1 021,60

(exc. VAT)

Kr. 1 277,00

(inc. VAT)

43 In stock for same day dispatch*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over kr 500,00

Check stock levels

Units	Per unit
5 - 9	Kr. 204,32
10 - 24	Kr. 195,62
25 +	Kr. 188,76

**price indicative

RS Stock No.:: 796-8473P
Mfr. Part No.:: UC1845AJ
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Maximum Switching Frequency	500 kHz
Output Voltage	5.05 V
Output Current	1 A
Control Method	Current
Number of Outputs	1
Mounting Type	Through Hole
Fall Time	150ns
Rise Time	150ns
Package Type	CDIP
Topology	Boost, Flyback, Forward
Pin Count	8
Dimensions	10.16 x 7.11 x 4.57mm
Maximum Duty Cycle	50%
Length	10.16mm
PWM Controller Type	Current Mode
Width	7.11mm
Height	4.57mm
Maximum Operating Supply Voltage	2.5 V
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+125 °C

Texas Instruments UC1845AJ, PWM Controller, 2.5 V, 500 kHz 8-Pin, CDIP

FREE delivery for orders over kr 500,00

Flyback Controller, Current Control, UC18/UC28/UC38 Series, Texas Instruments
